5-30
Chapter 5: BIOS Setup
Setup Prompt Timeout [1]
Allows you to set the number of seconds to wait for setup activation key.
Bootup NumLock State [On]
Allows you to select the power-on state for the NumLock.
Configuration options: [Off] [On]
Quiet Boot [Disabled]
Allows you to enable or disable Quiet Boot.
Configuration options: [Disabled] [Enabled]
POST Report [5 sec]
Allows you to set the desired POST Report waiting time from 1 to 10 seconds.
Configuration options: [1 sec] ~ [10 sec] [Until Press ESC]
Boot Option Priorities
These items specify the boot device priority sequence from the available devices. The
number of device items that appears on the screen depends on the number of devices
installed in the system.
• To select the boot device during system startup, press <F8> when ASUS Logo
appears.
• To access Windows OS in Safe Mode, please press <F8> after POST.
Floppy Drive BBS Priorities / Hard Drive BBS Priorities / CD/DVD
ROM Drive BBS Priorities
These items appear only when you connect Floppy / SATA ODD or HDD to the SATA ports
and allow you to set the booting order of the SATA devices.

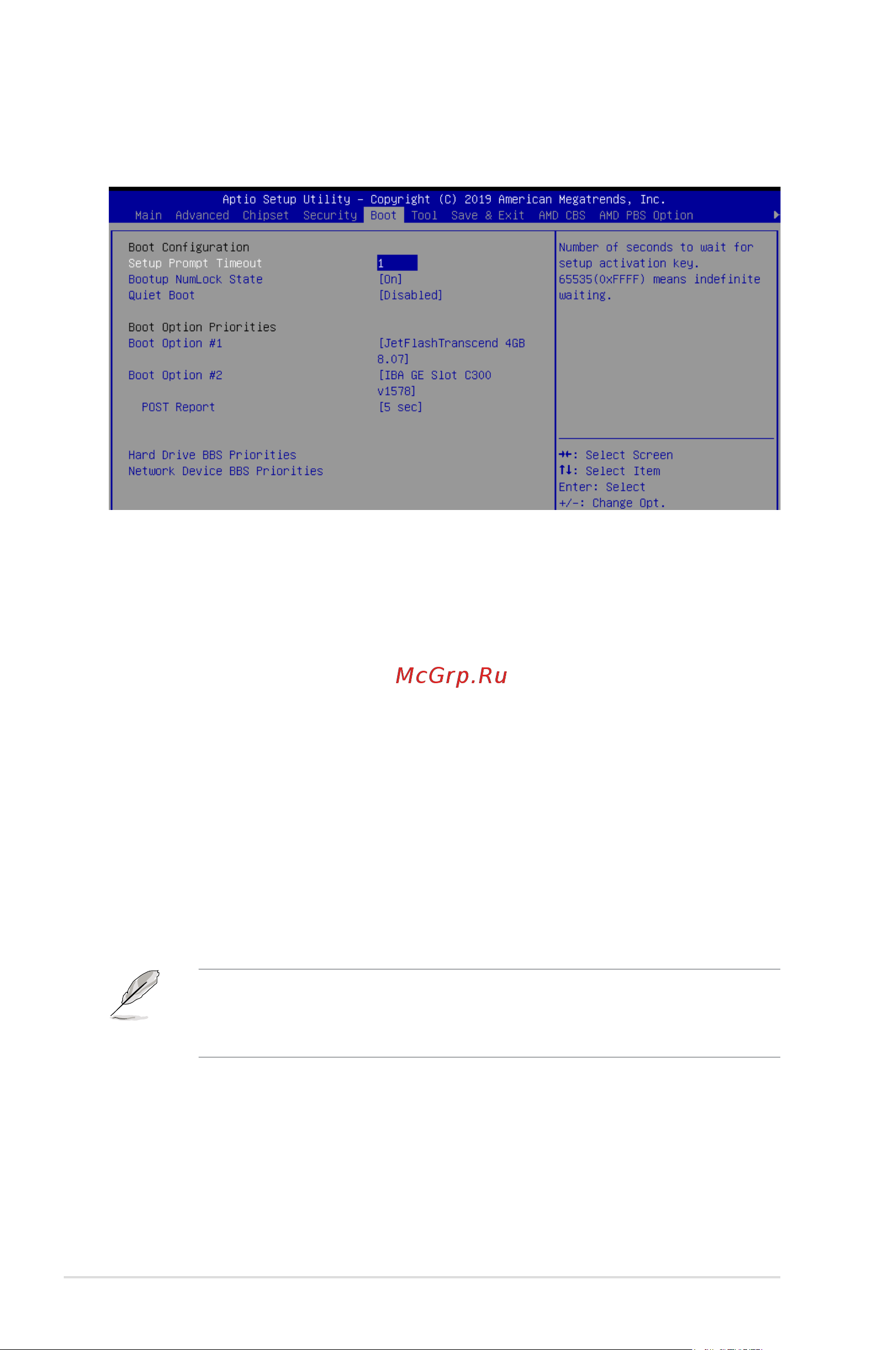

5.8 Boot menu
The Boot menu items allow you to change the system boot options.
