5-25
ASUS RS500A-E10 Series
5.6 Chipset menu

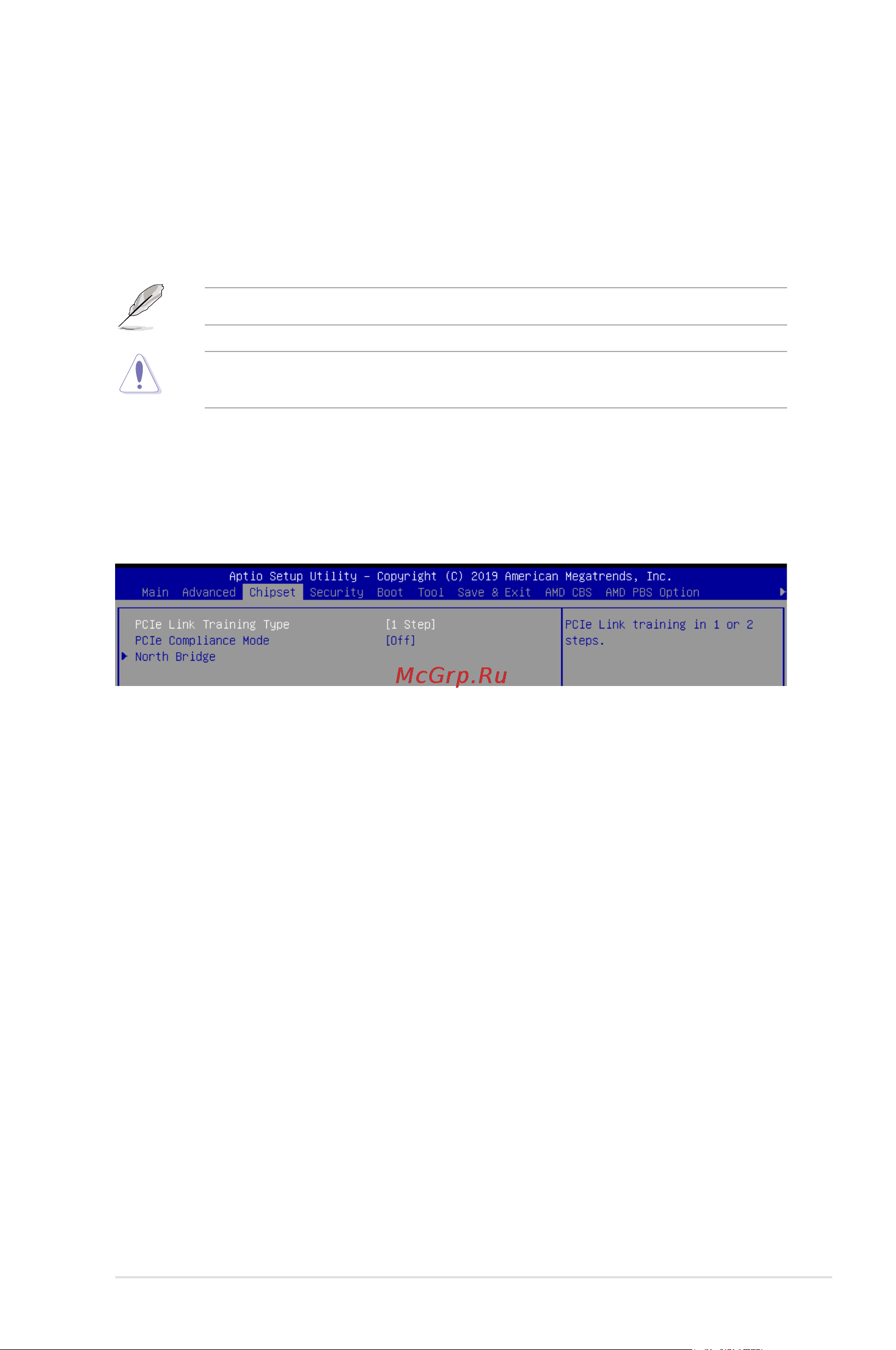

The Chipset menu items allow you to change the Chipset settings.
PCIe Link Training Type [1 Step]
Allows you to select the PCIe training in 1 or 2 steps.
Configuration options: [1 Step] [2 Step]
PCIe Compliance Mode [Off]
Allows you to select the PCIe Compliance Mode.
Configuration options: [On] [Off]
North Bridge
Memory Configuration
Socket 0 Information
This item displays the memory information on Socket 0.
Socket 1 Information
This item displays the memory information on Socket 1.
Engine Boost [Disabled]
Enable this item to boost the CPU's frequency.
Configuration options: [Disabled] [Level1] [Level2] [Level3(Max)]
Overclocking [Disabled]
Enable this item to increase the CPU’s clock.
Configuration options: [Disabled] [Level1] [Level2] [Level3(Max)]
Operate with an ambient temperature of 25°C or lower for optimized performance.
Please note that overclocking might cause component damage or system crashes, which
may reduce the lifespan of the system and the CPU. Use this tool at your own risk.
