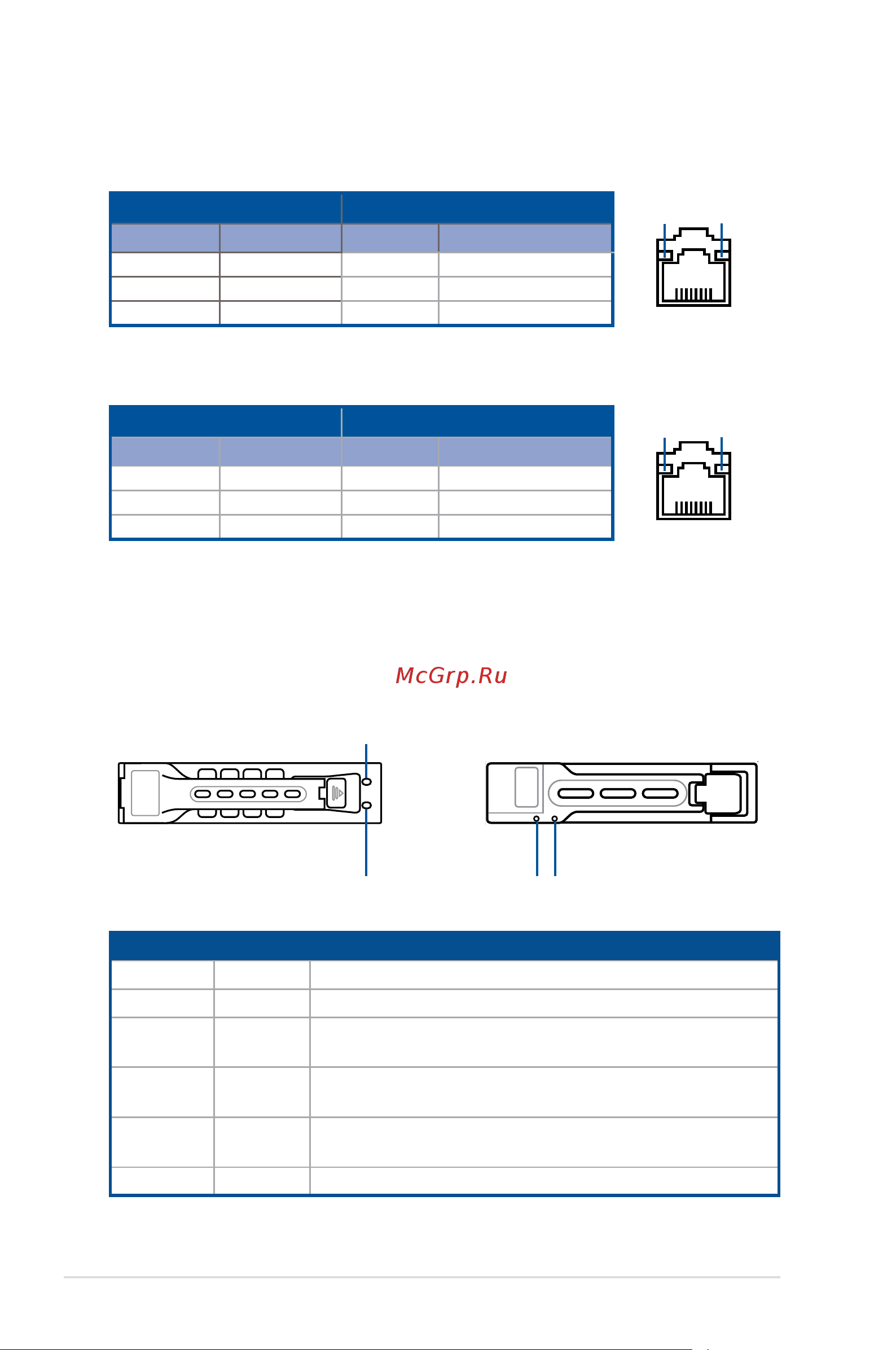

Chapter 1: Product Introduction
1-12
1.7.3 Storage device status LED
4 3 2 1
Red LED
Green LED
1.7.2 LAN (RJ-45) LEDs
LAN port LED indications
LAN port
Activity/Link LED Speed LED
Status Description Status Description
OFF No link OFF 10 Mbps connection
GREEN Linked ORANGE 100 Mbps connection
BLINKING Data activity GREEN 1 Gbps connection
Dedicated Management LAN port (DM_LAN1) LED indications
DM LAN port
Activity/Link LED Speed LED
Status Description Status Description
OFF No link OFF 10 Mbps connection
YELLOW Linked ORANGE 100 Mbps connection
BLINKING Data activity GREEN 1 Gbps connection
SPEED
LED
ACT/LINK
LED
SPEED
LED
ACT/LINK
LED
Storage Device Access LED Description
GREEN ON Storage device power ON
RED ON Storage device has failed and should be swapped immediately
GREEN/
RED
Blinking RAID rebuilding
GREEN/
RED
Blinking Locate
GREEN/
RED
OFF Storage device not found
GREEN Blinking Read/write data from/into the storage device
1
2
Red LED Green LED
RS500A-E10-RS12URS500A-E10-RS4 / RS500A-E10-PS4
