Asus RS500A-E10-RS4 [53/150] Installing mezzanine cards

2-27

ASUS RS500A-E10 Series

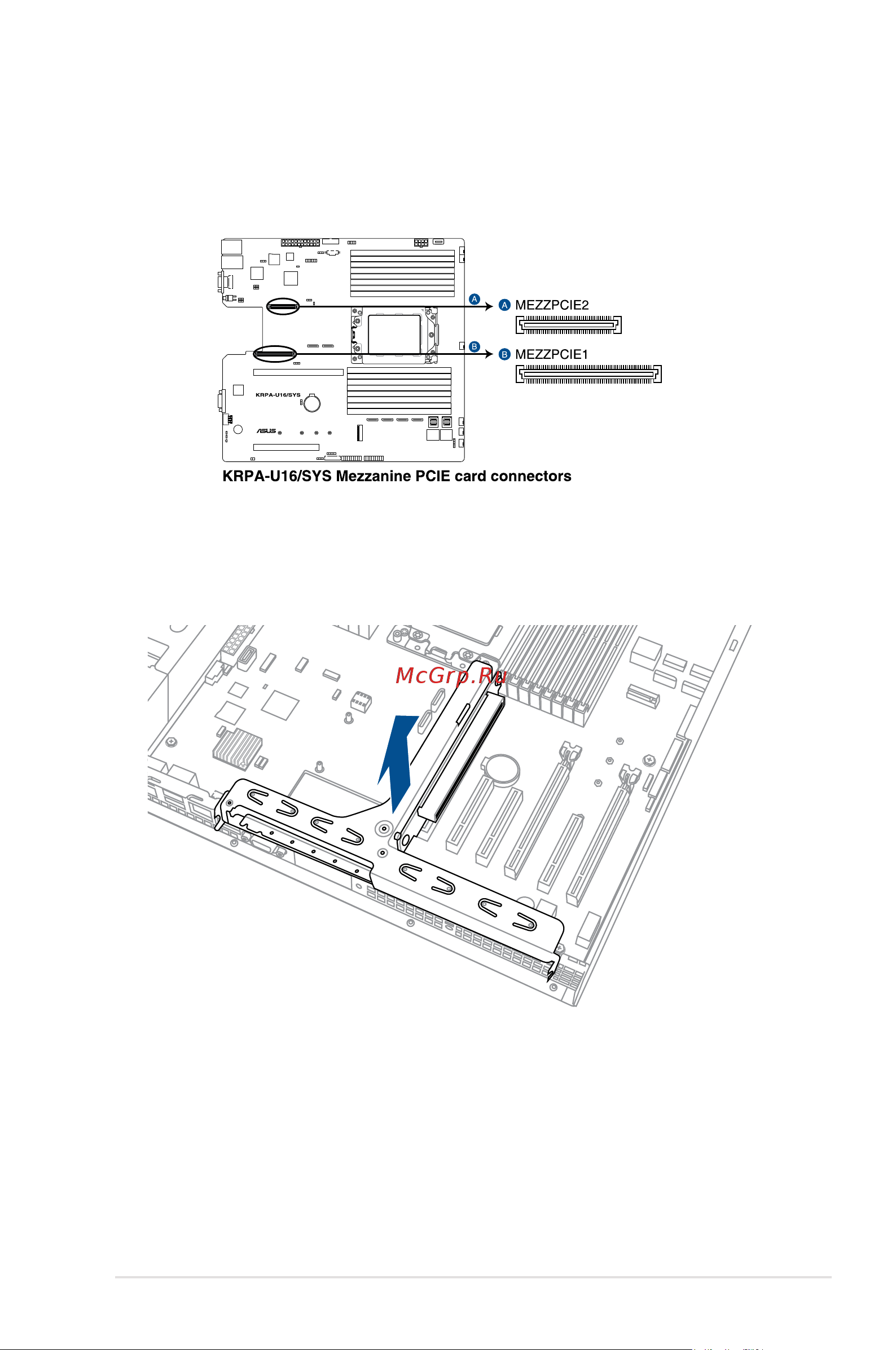

2.5.6 Installing Mezzanine cards

To install a Mezzanine card:

1. Locate the Mezzanine card connector on your motherboard.

2. Firmly hold the riser card bracket, then pull it up to detach it from the PCI Express slot

on the motherboard.
