5-13
ASUS RS500A-E10 Series

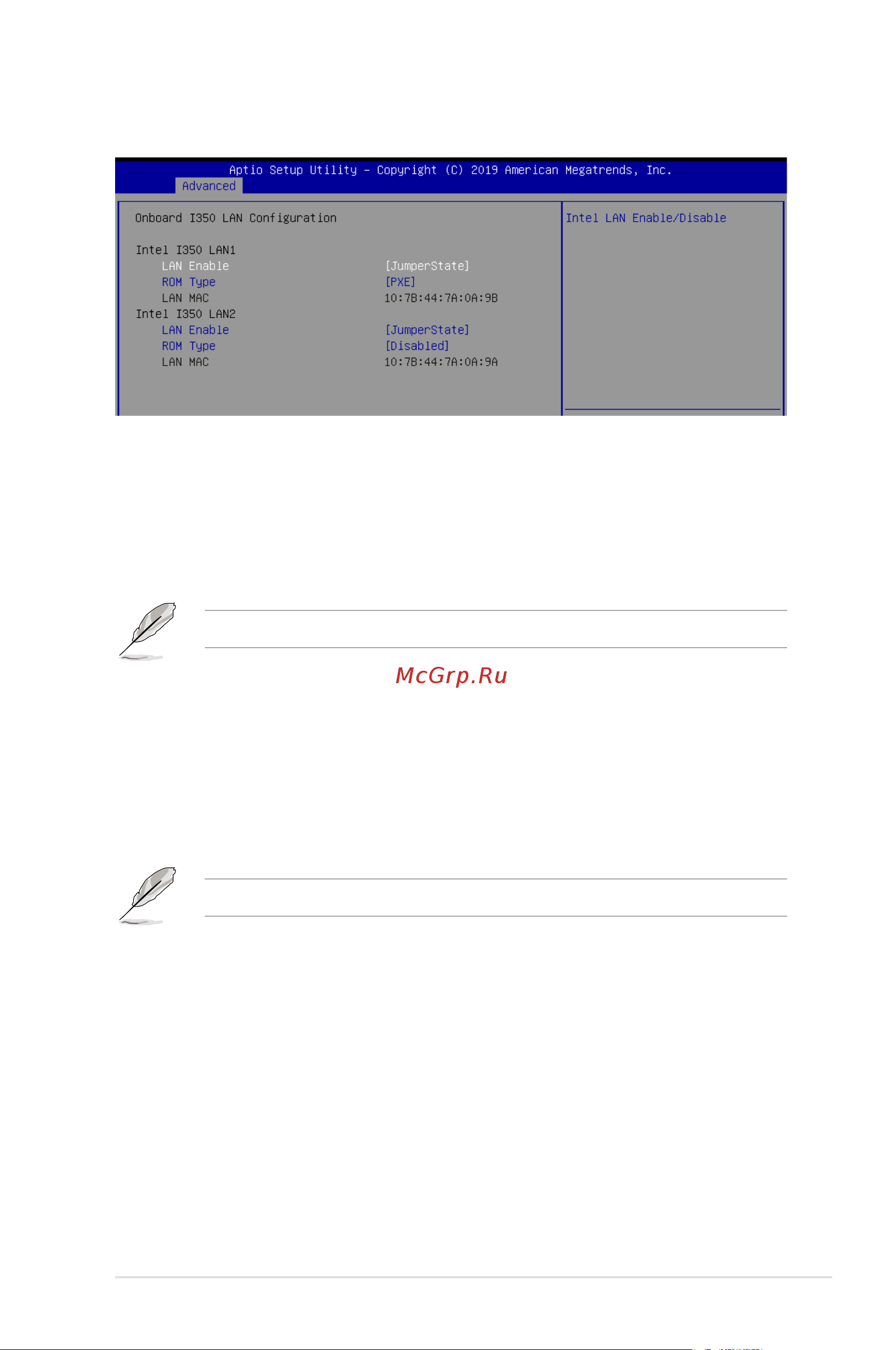

Onboard I350 LAN Configuration
Intel LAN1 I350
LAN Enable [JumperState]
Allows you to enable or disable the Intel LAN.
Configuration options: [Disabled] [JumperState]
The following items appear only when
LAN Enable
is set to
[JumperState]
.
ROM Type [PXE]
Allows you to select the Intel LAN ROM type.
Configuration options: [PXE] [iSCSI] [Disabled]
Intel LAN2 I350
LAN Enable [JumperState]
Allows you to enable or disable the Intel LAN.
Configuration options: [Disabled] [JumperState]
The following items appear only when
LAN Enable
is set to
[JumperState]
.
ROM Type [Disabled]
Allows you to select the Intel LAN ROM type.
Configuration options: [PXE] [iSCSI] [Disabled]
