1.6 Internal features

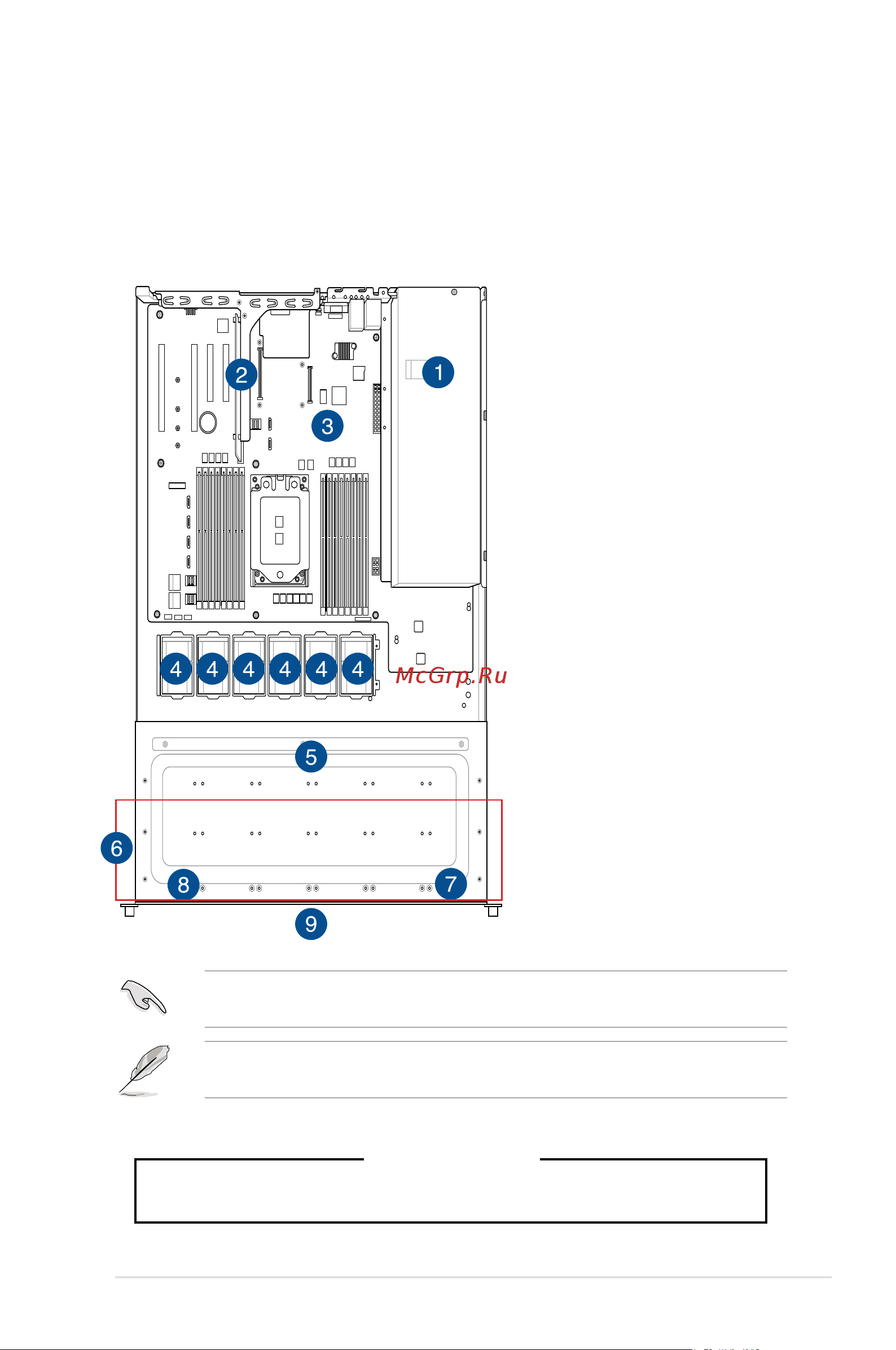

The barebone server includes the basic components as shown.

1. Power supply or redundant

power supply

2. Riser card (Gen4 x16/x8 link)

3. ASUS KRPA-U16/SYS Server

Board

4. System fans

5. SATA/SAS backplane (hidden)

6. 4 x 3.5“ storage device bays

7. Front I/O boards

8. Slim type optical drive (hidden)

9. Asset tag (hidden)

The barebone server does not include a floppy disk drive. Connect a USB floppy disk drive

to any of the USB ports on the front or rear panel if you need to use a floppy disk.

WARNING

HAZARDOUS MOVING PARTS

KEEP FINGERS AND OTHER BODY PARTS AWAY

Turn off the system power and detach the power supply before removing or replacing any

system component.

RS500A-E10-RS4 / RS500A-E10-PS4
