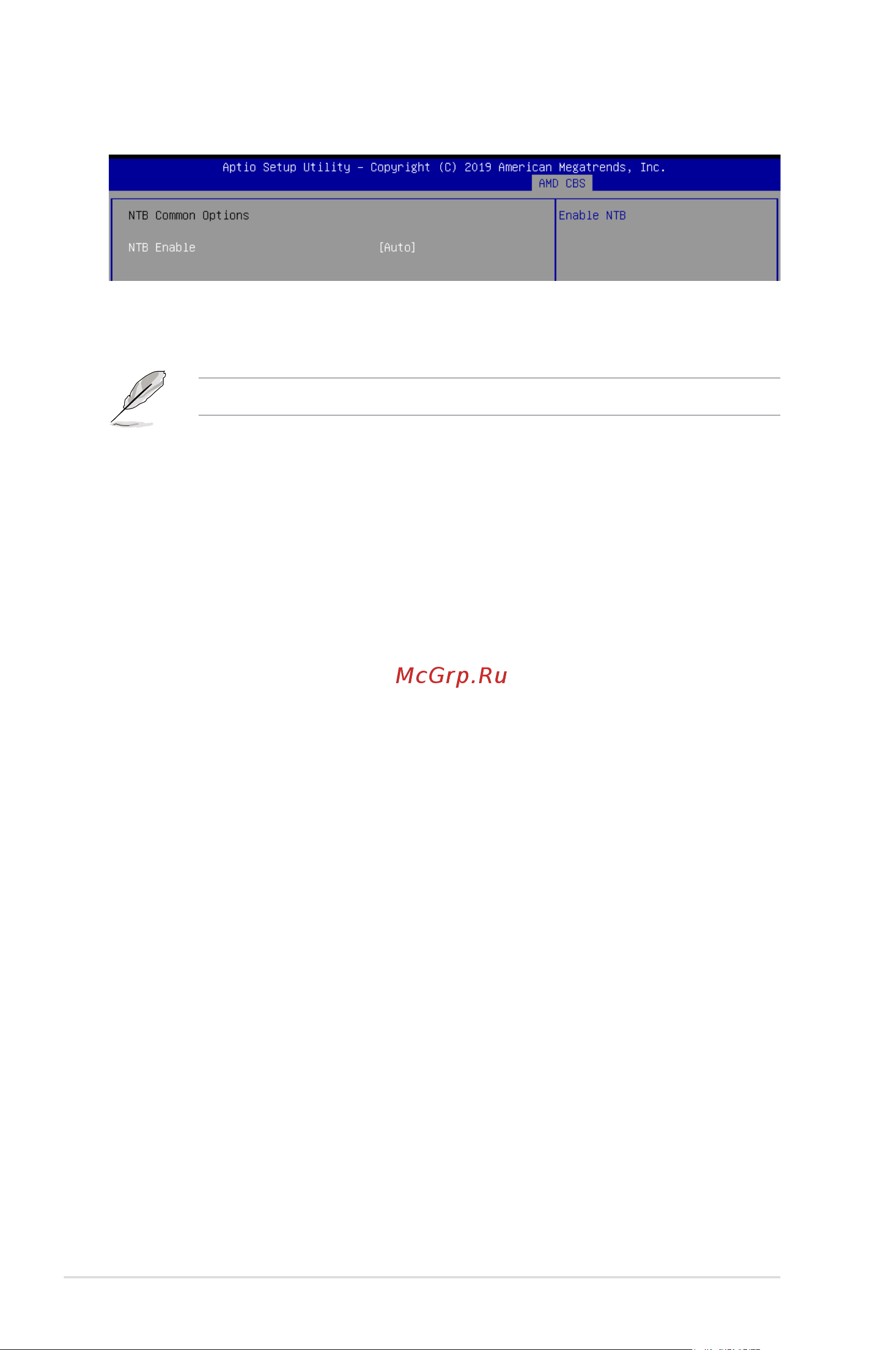

5-42
Chapter 5: BIOS Setup
5.11.6 NTB Common Options
NTB Enable [Auto]
Configuration options: [Enabled] [Auto]
The following item appears only when
NTB Enable
is set to
[NTB Enable]
.
NTB Location [Auto]
Configuration options: [Auto] [Socket0-Die0] [Socket0-Die1] [Socket0-Die2]
[Socket0-Die3] [Socket1-Die0] [Socket1-Die1]
[Socket1-Die2] [Socket1-Die3]
NTB active on PCIeCore [Auto]
Configuration options: [Auto] [Core0] [Core1]
NTB Mode [Auto]
Configuration options: [NTB Disabled] [NTB Primary] [NTB Secondary]
[NTB Random] [Auto]
Link Speed [Auto]
Configuration options: [MAX Speed] [Gen 1] [Gen 2] [Gen 3] [Auto] [Gen 4]
