5-38
Chapter 5: BIOS Setup

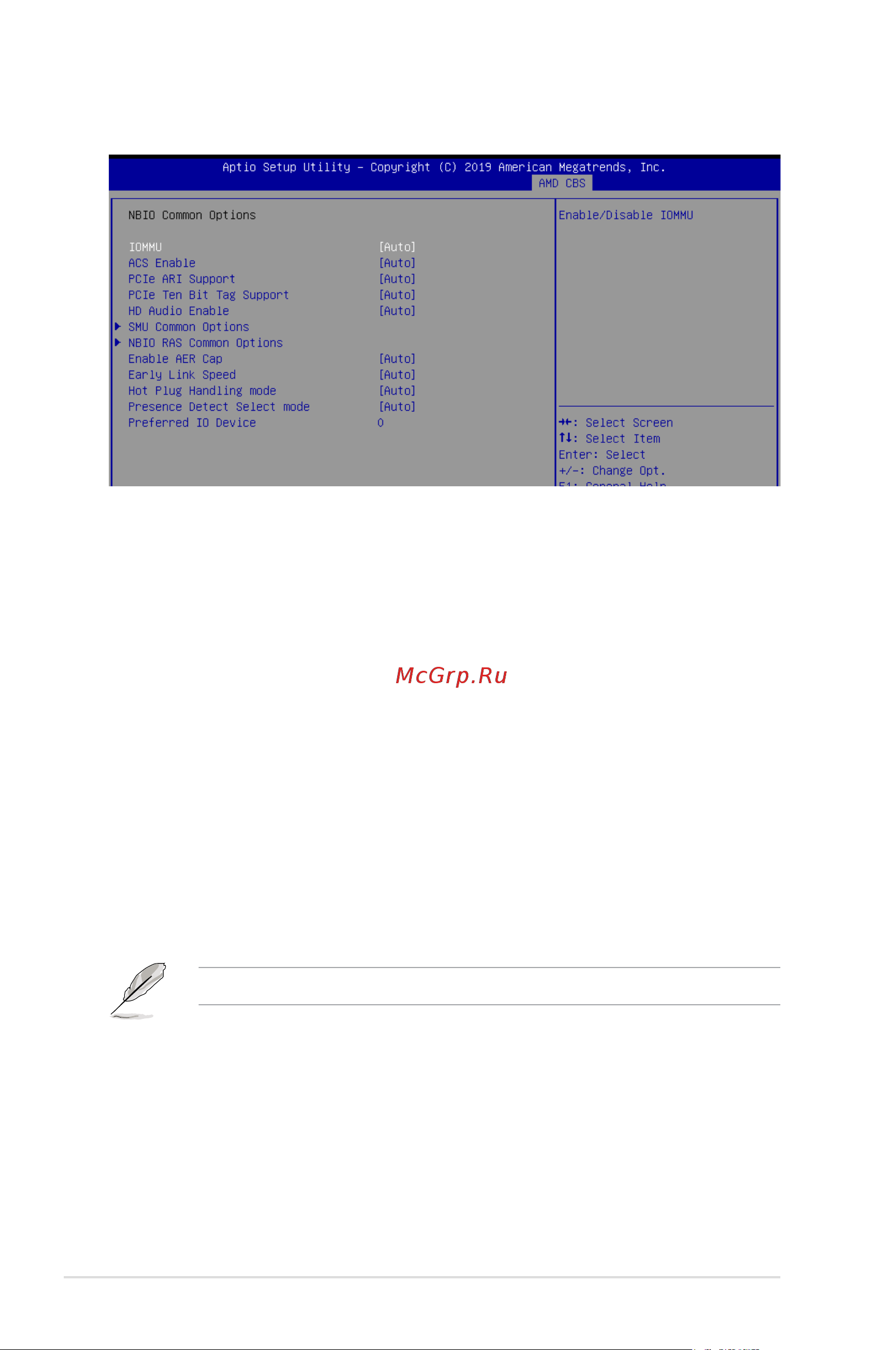

5.11.4 NBIO Common Options
IOMMU [Auto]
This option allows you to enable or disable IOMMU.
Configuration options: [Disabled] [Enabled] [Auto]
ACS Enable [Auto]
Configuration options: [Disabled] [Enabled] [Auto]
PCIe ARI Support [Auto]
Configuration options: [Disabled] [Enabled] [Auto]
PCIe Ten Bit Tag Support [Auto]
Configuration options: [Disabled] [Enabled] [Auto]
SMU Common Options
Determinism Control [Auto]
Configuration options: [Disabled] [Enabled] [Auto]
cTDP Control [Manual]
This option allows you to set the cTDP.
Configuration options: [Manual] [Auto]
The following item appears only when
cTDP Control
is set to
[Manual]
.
cTDP [200]
This option allows you to set the cTDP value.
