2-25

ASUS RS500A-E10 Series

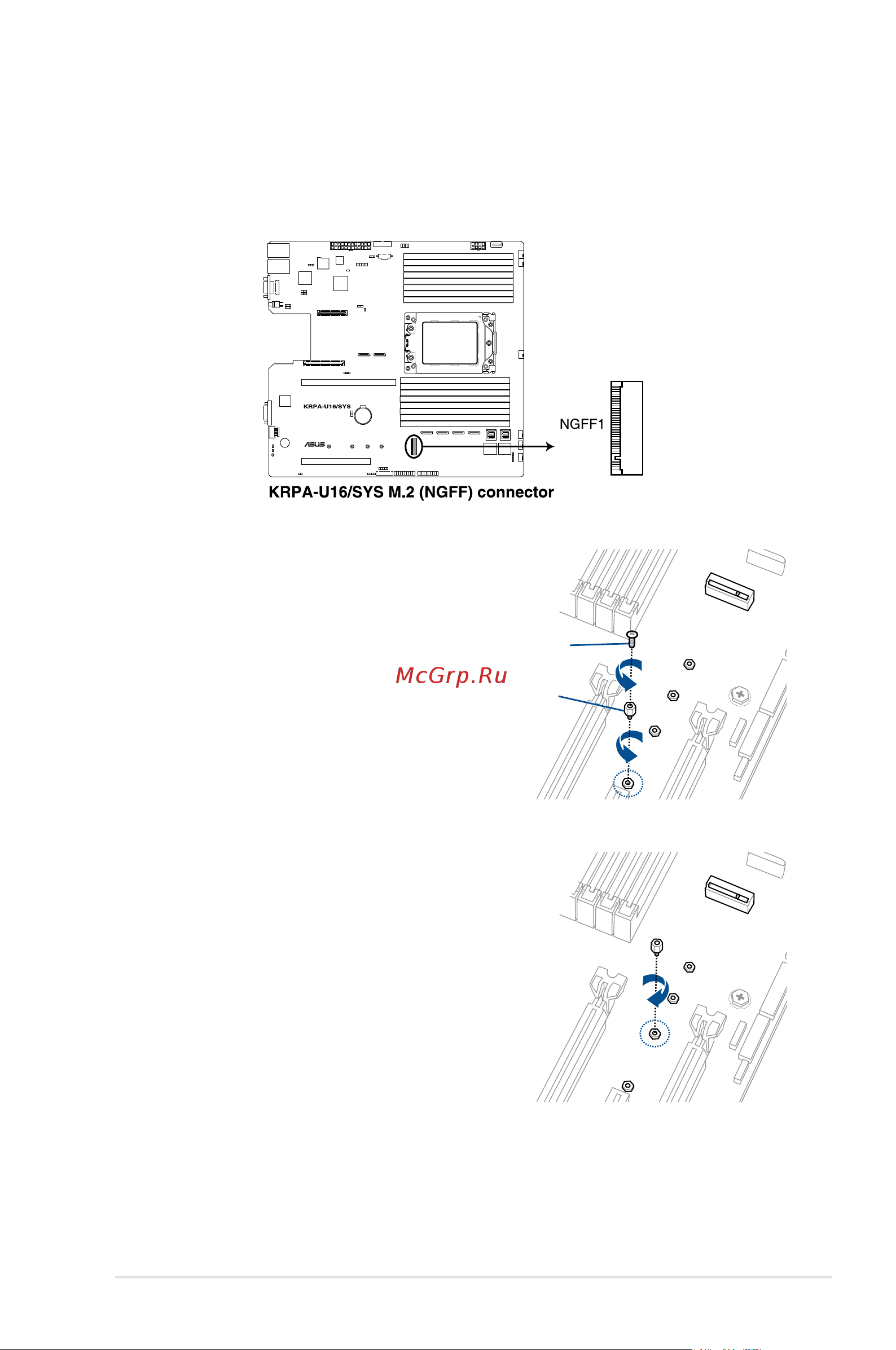

2.5.5 Installing M.2 (NGFF) cards

To install an M.2 (NGFF) card:

2. Remove the top screw and the

stand from the motherboard.

3. Select an appropriate screw hole

on the motherboard for your M.2

card, then secure the stand to the

motherboard.

1. Locate the M.2 (NGFF) connector on your motherboard.

Top screw

Stand screw
