Asus RS500A-E10-RS4 [35/150] Storage device

2-9

ASUS RS500A-E10 Series

2.4 Storage device

RS500A-E10-RS4 / RS500A-E10-PS4

The system supports four hot-swap SATA/SAS storage devices. The storage device installed

on the storage device tray connects to the motherboard SATA/SAS ports via the SATA/SAS

backplane (SAS drives require an optional ASUS PIKE II card).

To install a 3.5” hot-swap SATA/SAS storage device:

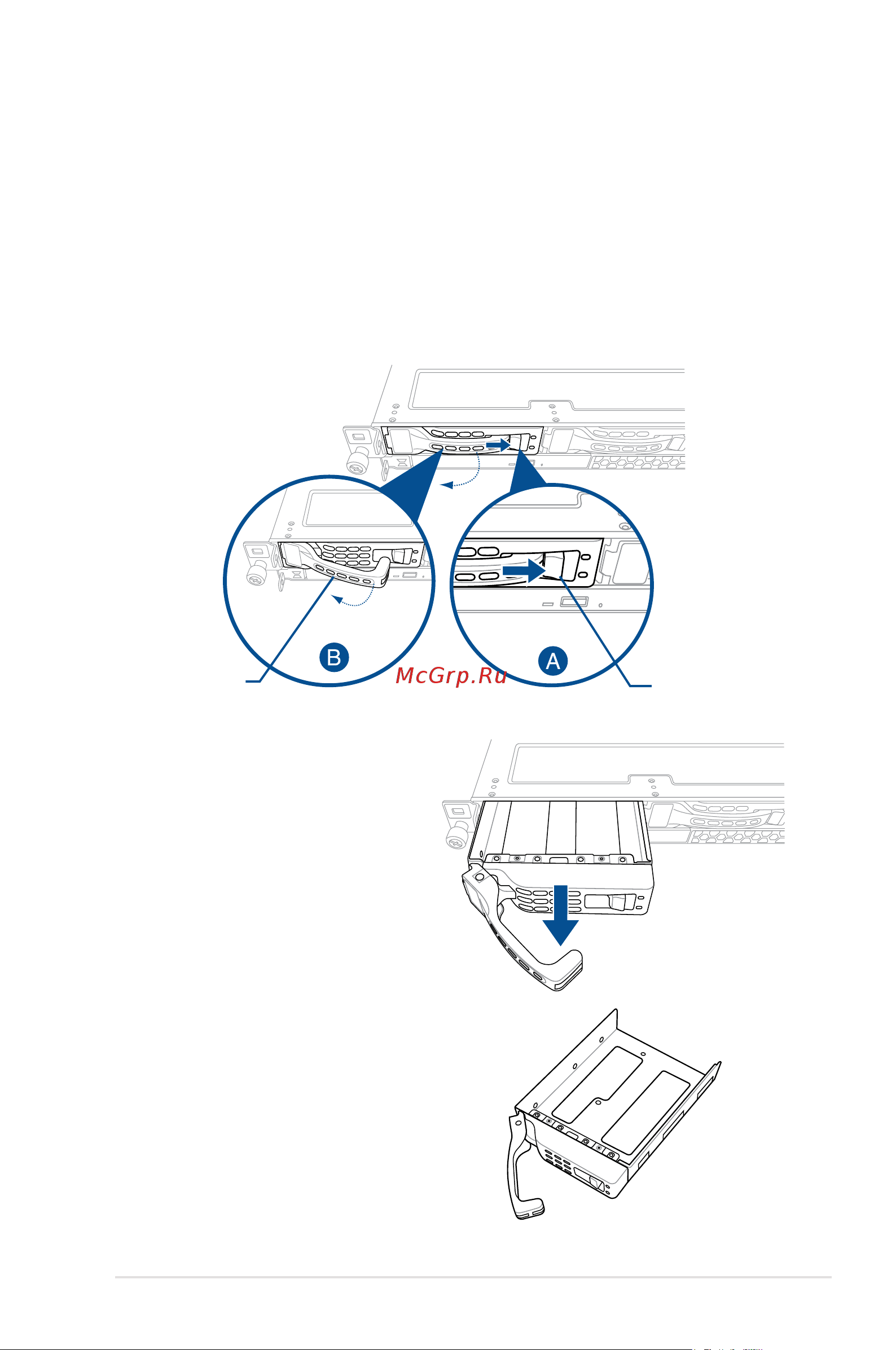

1. Push the spring lock to the right (A) then pull the tray lever outward (B) to release the

storage device tray. The storage device tray ejects slightly after you pull out the lever.

2. Firmly hold the tray lever and pull the

storage device tray out of the bay.

3. Place the storage device tray on a flat

and stable surface.

4. Prepare the SATA/SAS storage

device and the bundled set of screws.

Spring lock

Tray lever
