5-35
ASUS RS500A-E10 Series
Disable DF to external IP SyncFloodPropagation [Auto]
Configuration options: [Sync flood disabled] [Sync flood enabled] [Auto]
Disable DF sync flood propagation [Auto]
Configuration options: [Sync flood disabled] [Sync flood enabled] [Auto]
Freeze DF module queues on error [Auto]
Configuration options: [Disabled] [Enabled] [Auto]
CC6 memory region encryption [Auto]
Configuration options: [Disabled] [Enabled] [Auto]
System probe filter [Auto]
Configuration options: [Disabled] [Enabled] [Auto]
Memory Clear [Auto]
Configuration options: [Disabled] [Enabled] [Auto]
PSP error injection support [False]
Configuration options: [False] [True]

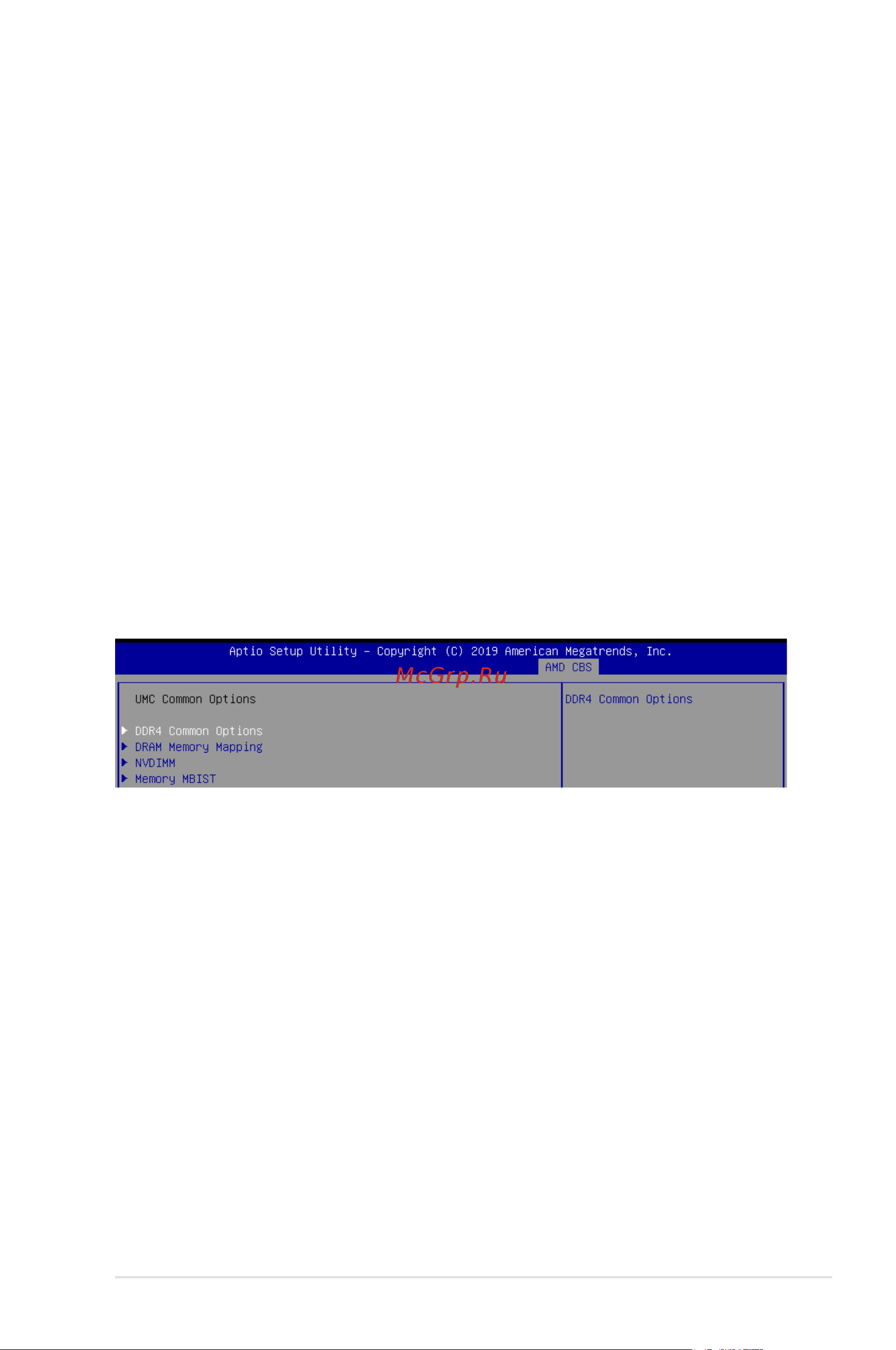

5.11.3 UMC Common Option
DDR4 Common Options
DRAM Timing Configuration
This option allows you to set memory overclock settings. Read the disclaimer and
select
I Accept
to continue.
DRAM Controller Configuration
Power Down Options
Power Down Enable [Auto]
This option allows you to enable or disable DDR power down mode.
Configuration options: [Disabled] [Enabled] [Auto]
Cmd2T [Auto]
This option allows you to select between 1T and 2T mode on ADDR/CMD.
Configuration options: [1T] [2T] [Auto]
