Chapter 2: Hardware Information

2-36

2.8.2 Redundant power supply module

(for RS500A-E10-RS4 / RS500A-E10-RS12U only)

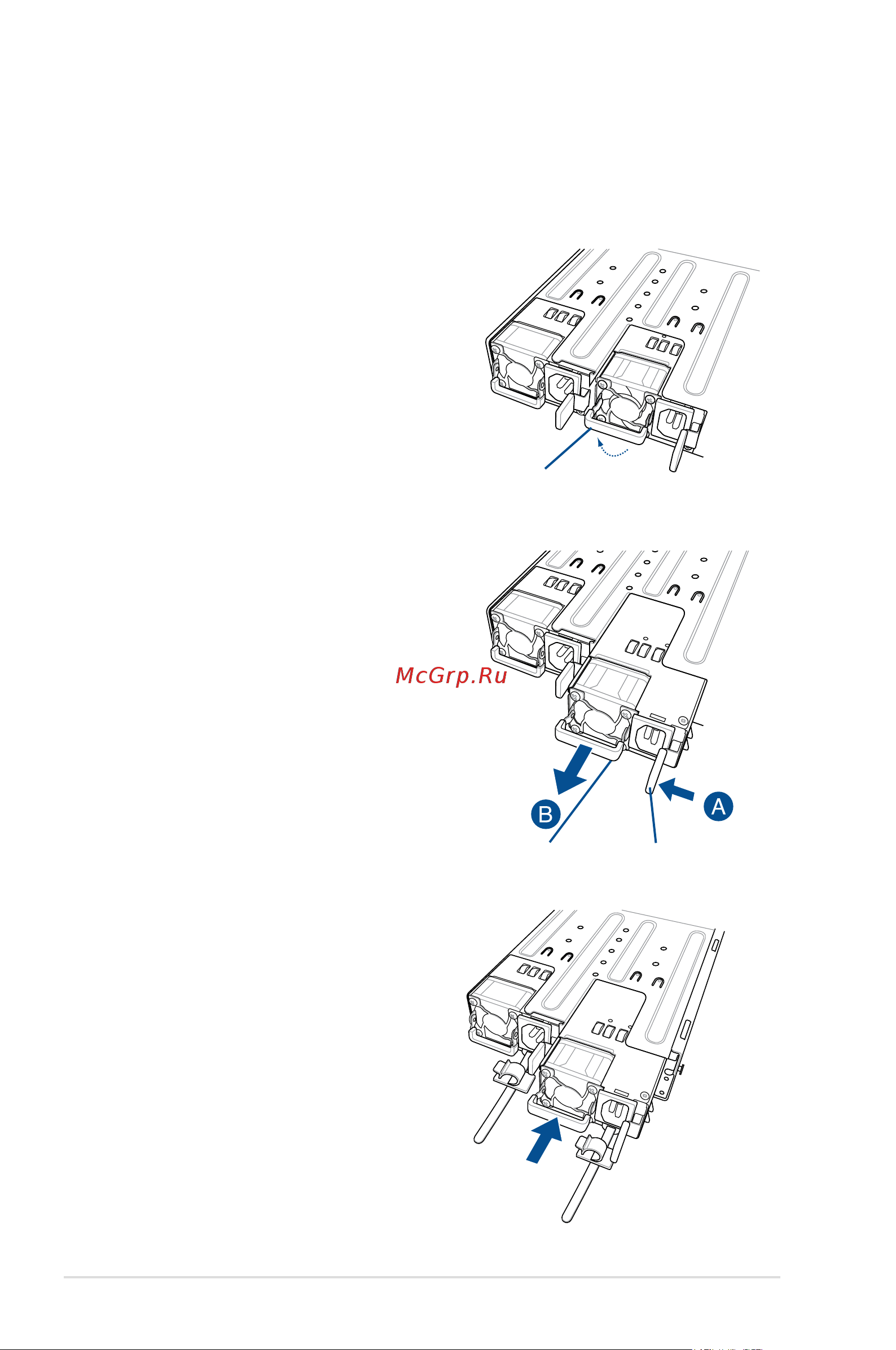

To replace a failed redundant power supply module:

1. Lift up the power supply module lever.

2. Hold the power supply module lever

and press the PSU latch, then pull the

power supply module out of the system

chassis.

3. Prepare the replacement power supply

module.

4. Insert the replacement power supply

module into the chassis then push it

inwards until the latch locks into place.

Module lever

Module lever PSU latch
