5-22
Chapter 5: BIOS Setup

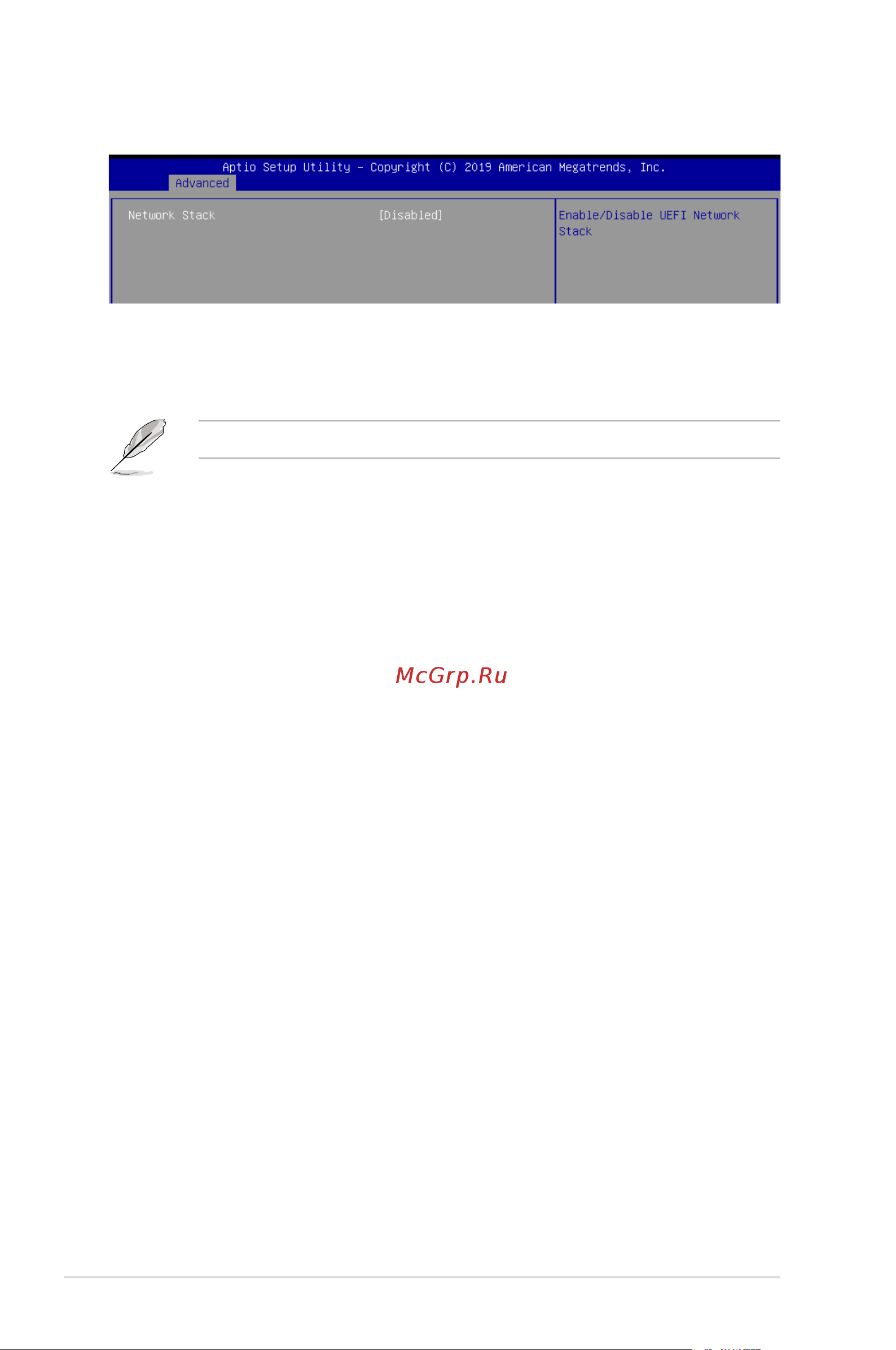

Network stack [Disabled]
Enables or disables the network stack feature.
Configuration options: [Disable] [Enable]
The following item appears only when
Network stack
is set to
[Enabled]
.
Ipv4 PXE Support [Disabled]
Enables or disables the Ipv4 PXE Boot Support. If disabled, Ipv4 PXE boot option will
not be created.
Configuration options: [Disabled] [Enabled]
Ipv4 HTTP Support [Disabled]
Enables or disables the Ipv4 HTTP Boot Support. If disabled, Ipv4 HTTP boot option
will not be created.
Configuration options: [Disabled] [Enabled]
Ipv6 PXE Support [Disabled]
Enables or disables the Ipv6 PXE Boot Support. If disabled, Ipv6 PXE boot option will
not be created.
Configuration options: [Disabled] [Enabled]
Ipv6 HTTP Support [Disabled]
Enables or disables the Ipv6 HTTP Boot Support. If disabled, Ipv6 HTTP boot option
will not be created.
Configuration options: [Disabled] [Enabled]
IPSEC Certificate [Disabled]
This item allows you to enable or disable IPSEC Certificate for Ikev.
Configuration options: [Disabled] [Enabled]
PXE boot wait time [0]
Wait time to press ESC key to abort the PXE boot.
Media detect time [1]
Wait time (in seconds) to detect media.
