Asus RS500A-E10-RS4 [104/150] Apm configuration
![Asus RS500A-E10-RS4 [104/150] Apm configuration](/views2/1771485/page104/bg68.png)
5-12
Chapter 5: BIOS Setup

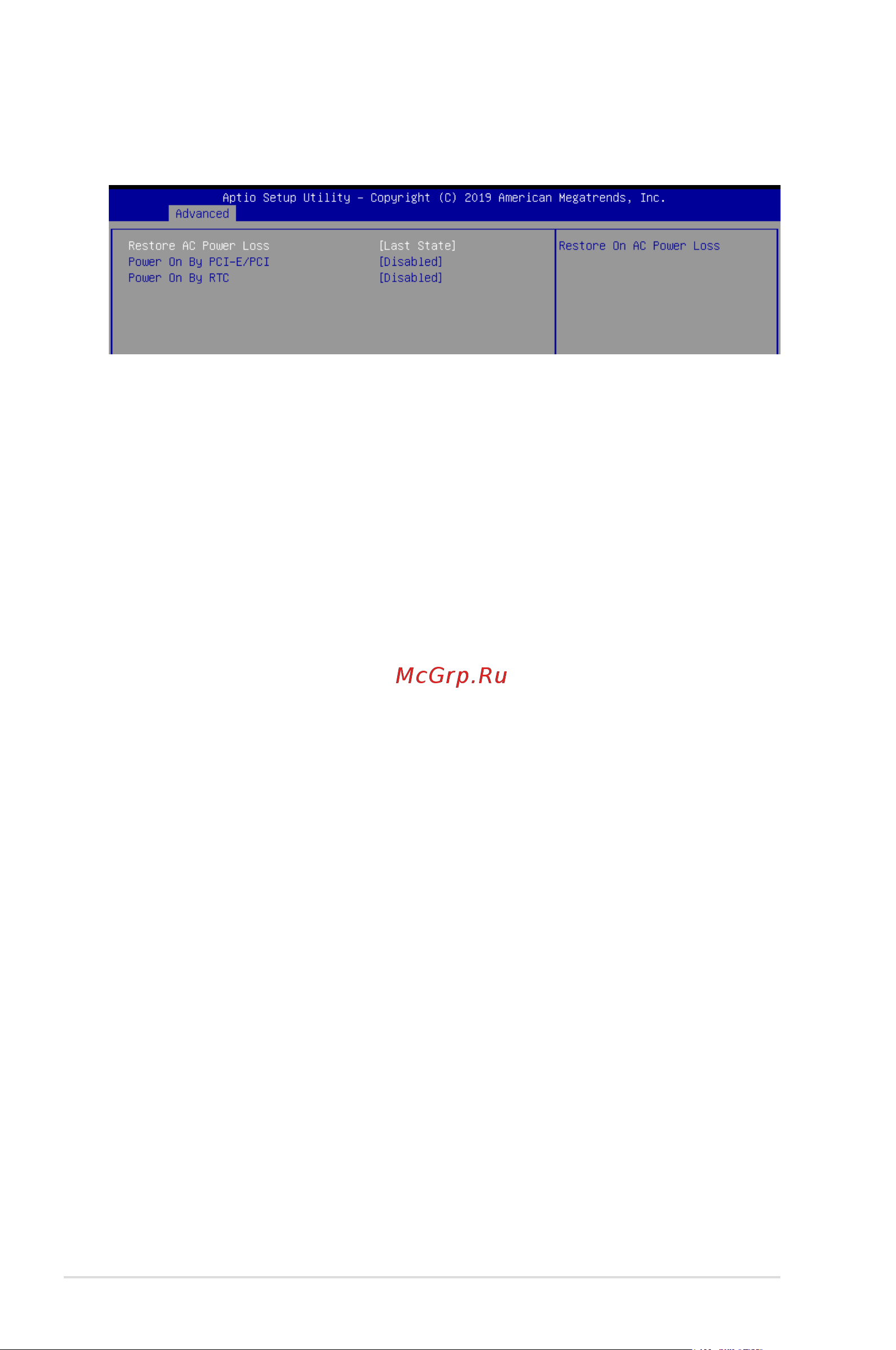

5.4.3 APM Configuration
Allows you to configure the Advance Power Management (APM) settings.
Restore AC Power Loss [Last State]
When set to [Power Off], the system goes into off state after an AC power loss. When set
to [Power On], the system will reboot after an AC power loss. When set to [Last State], the
system goes into either off or on state, whatever the system state was before the AC power
loss.
Configuration options: [Power Off] [Power On] [Last State]
Power On By PCI-E/PCI [Disabled]
[Disabled] Disables the PCIE devices to generate a wake event.
[Enabled] Enables the PCIE devices to generate a wake event.
Power On By RTC [Disabled]
[Disabled] Disables RTC to generate a wake event.
[Enabled] When set to [Enabled], the items
RTC Alarm Date (Days)
and
Hour/Minute/Second
will become user-configurable with set values.
