Asus RS500A-E10-RS4 [123/150] Tool menu

5-31

ASUS RS500A-E10 Series

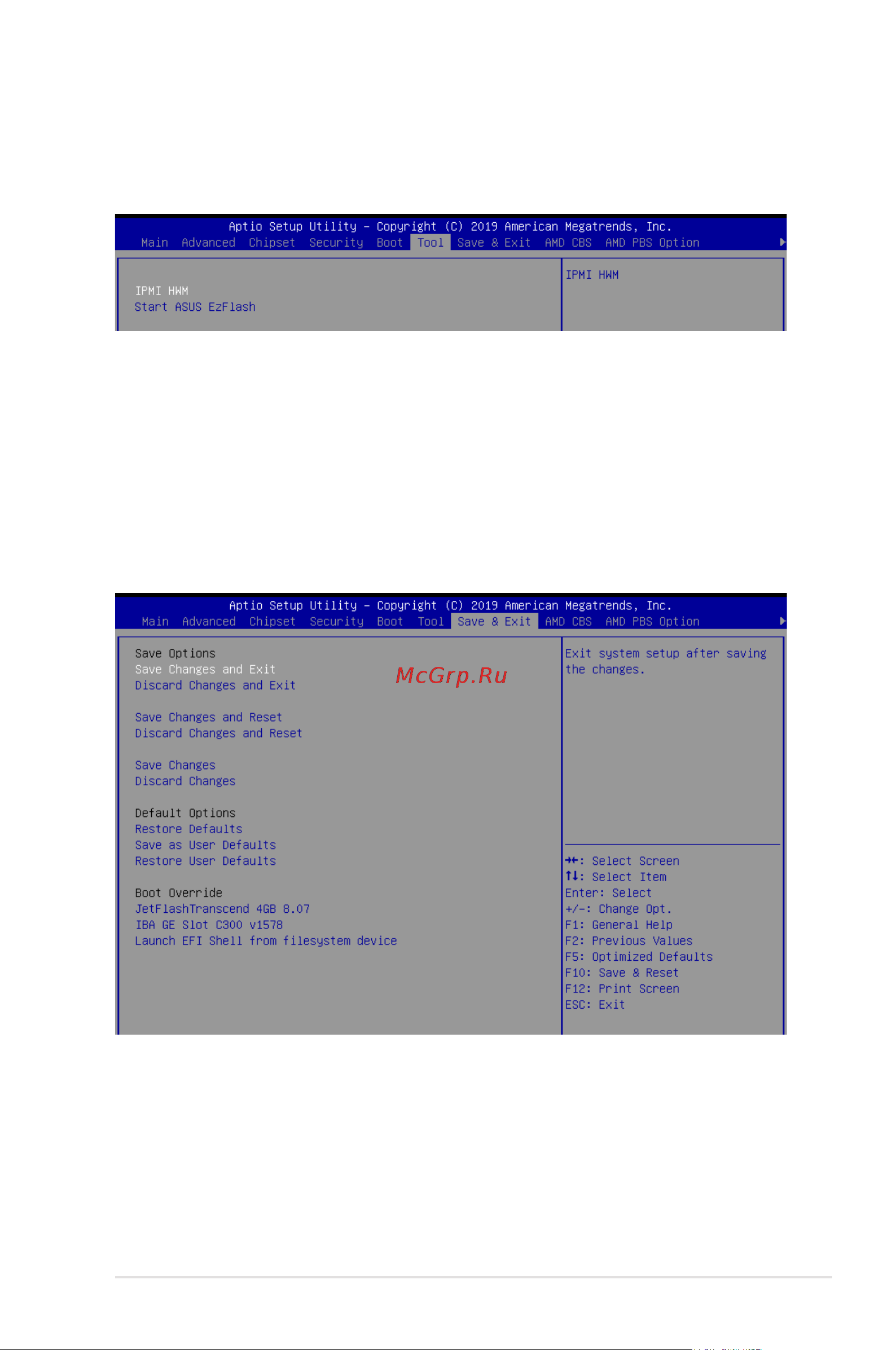

5.9 Tool menu

The Tool menu items allow you to configure options for special functions. Select an item then

press <Enter> to display the submenu.

IPMI HWM

Allows you to run the IPMI hardware monitor.

Start EZ Flash

Allows you to run ASUS EZ Flash BIOS ROM Utility when you press <Enter>. Refer to the

ASUS EZ Flash Utility section for details.

5.10 Save & Exit menu

The Exit menu items allow you to save or discard your changes to the BIOS items.
