Asus RS500A-E10-RS4 [49/150] Replacing the asus pcie nvme4 oculink card for rs500a e10 rs12u only

2-23

ASUS RS500A-E10 Series

2.5.4 Replacing the ASUS PCIE-NVME4-OCuLink card

(for RS500A-E10-RS12U only)

The ASUS PCIE-NVME4-OCuLink card pre-installed on the PCIE1 slot supports NVME

storage devices on Bay 1 to Bay 4.

To replace the ASUS PCIE-NVME4-OCuLink card:

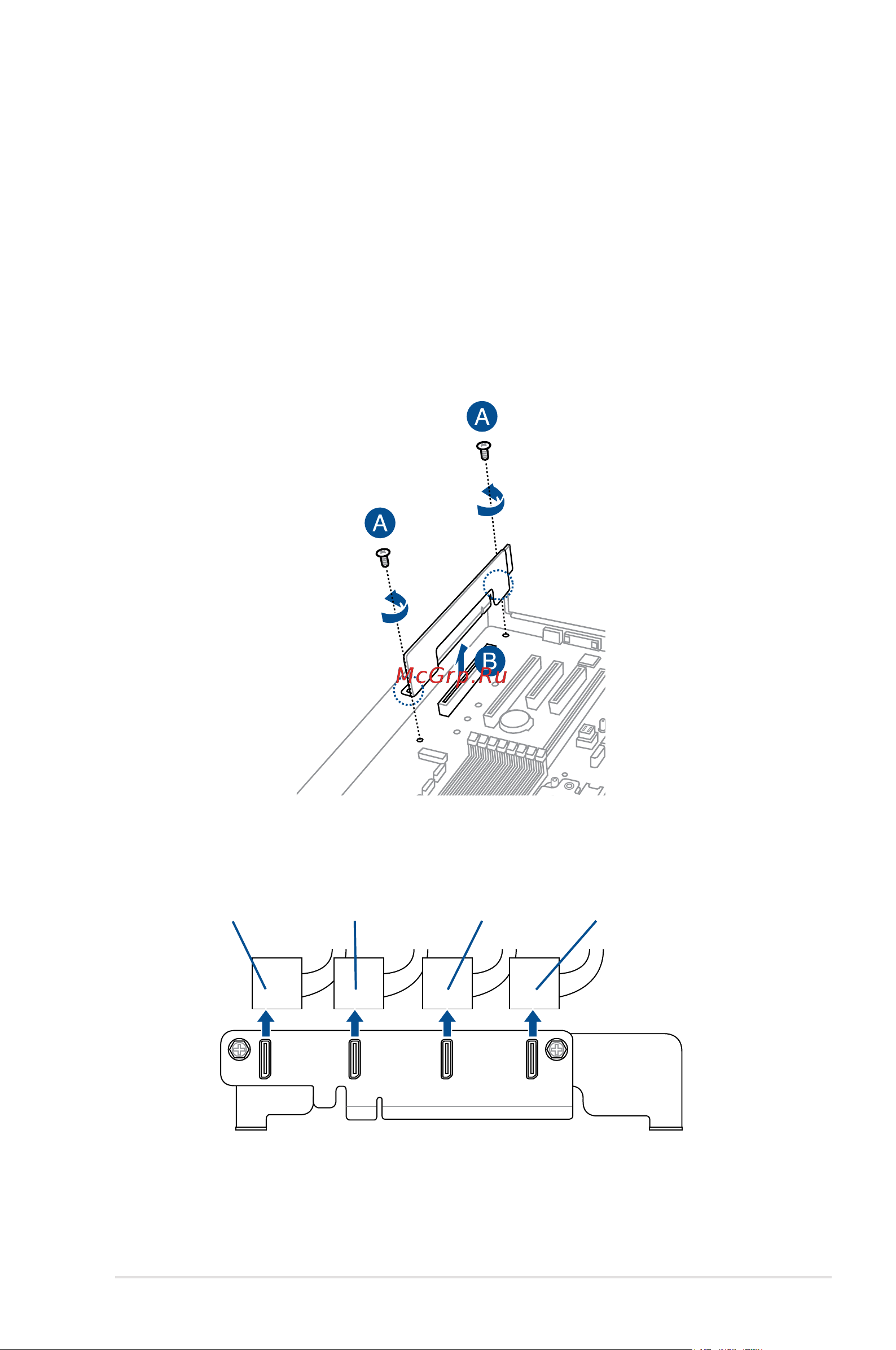

1. Remove the two (2) screws that secure the ASUS PCIE-NVME4-OCuLink card to

the motherboard (A), then remove the ASUS PCIE-NVME4-OCuLink card from the

motherboard (B).

2. Remove the OCuLink cables (right angle connectors) from its corresponding slots.

OCuLink port 1 OCuLink port 3OCuLink port 2 OCuLink port 4
