Chapter 2: Hardware Information

2-10

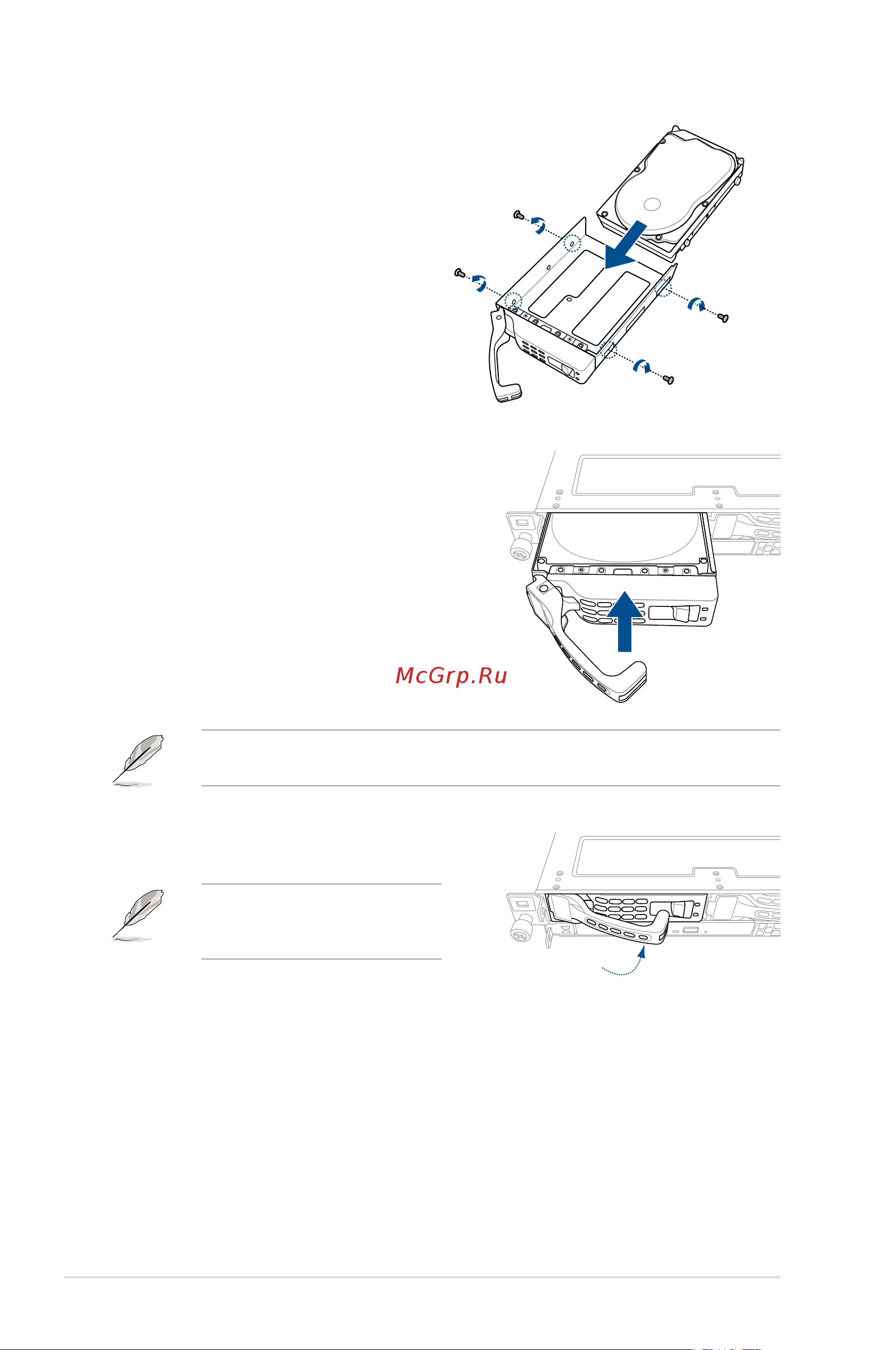

5. Place the 3.5” SATA/SAS storage

device into the tray then secure it with

four screws.

6. Insert the storage device tray and

storage device assembly all the way into

the depth of the bay until just a small

fraction of the tray edge protrudes.

7. Push the tray lever until it clicks and

secures the storage device tray in place.

The storage device tray is correctly

placed when its front edge aligns

with the bay edge.

8. Repeat steps 1 to 7 to install the other

SATA/SAS storage devices.

When installed, the SATA/SAS connector on the drive connects to the SATA/SAS interface

on the backplane.
