2-11

ASUS RS500A-E10 Series

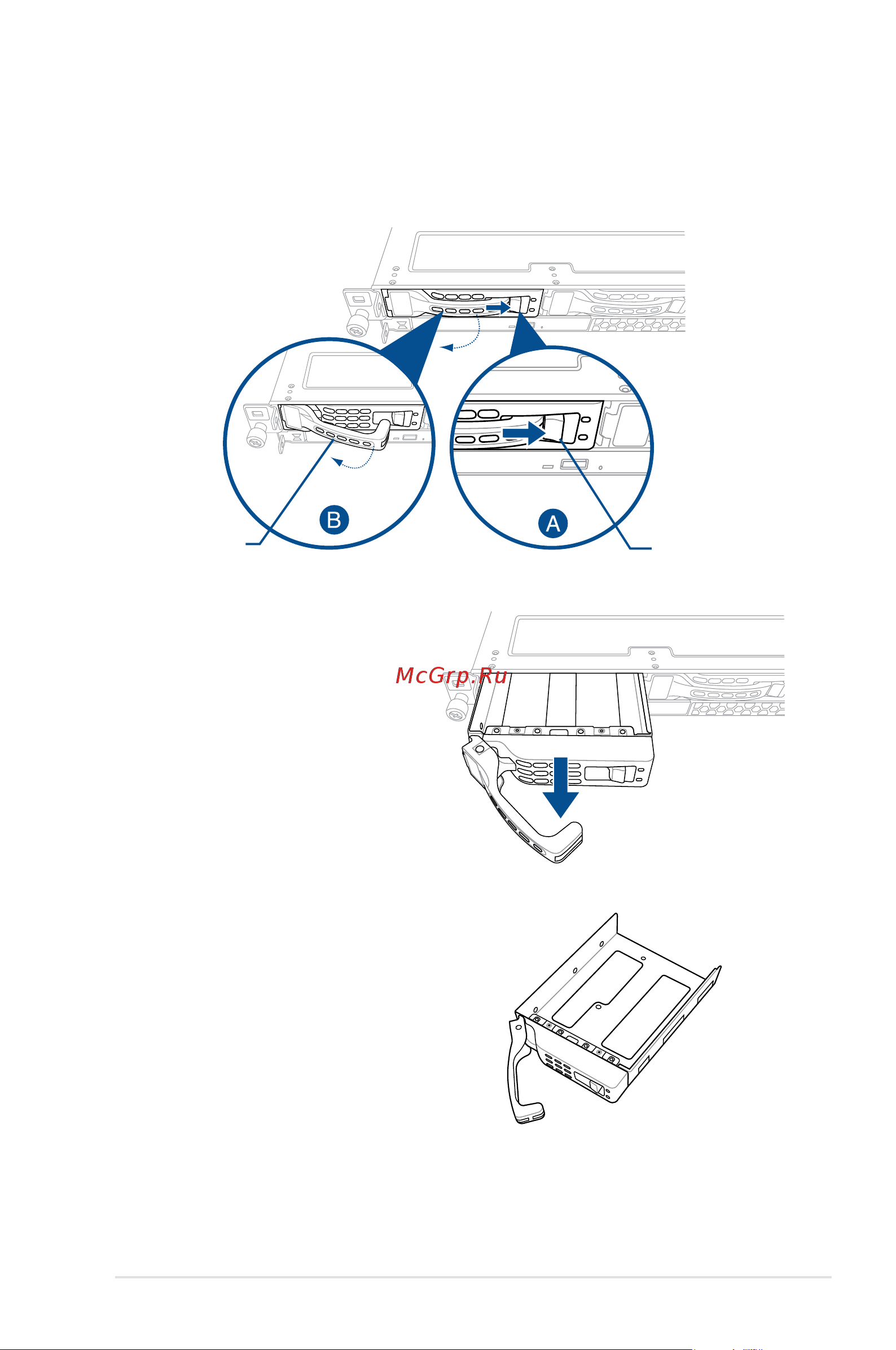

To install a 2.5” storage device to the front panel:

1. Push the spring lock to the right (A) then pull the tray lever outward (B) to release the

storage device tray. The storage device tray ejects slightly after you pull out the lever.

Spring lock

Tray lever

2. Firmly hold the tray lever and pull the

tray out of the bay.

3. Place the tray on a flat and stable

surface.

4. Prepare the 2.5” storage device and

the bundled set of screws.
