Chapter 2: Hardware Information

2-12

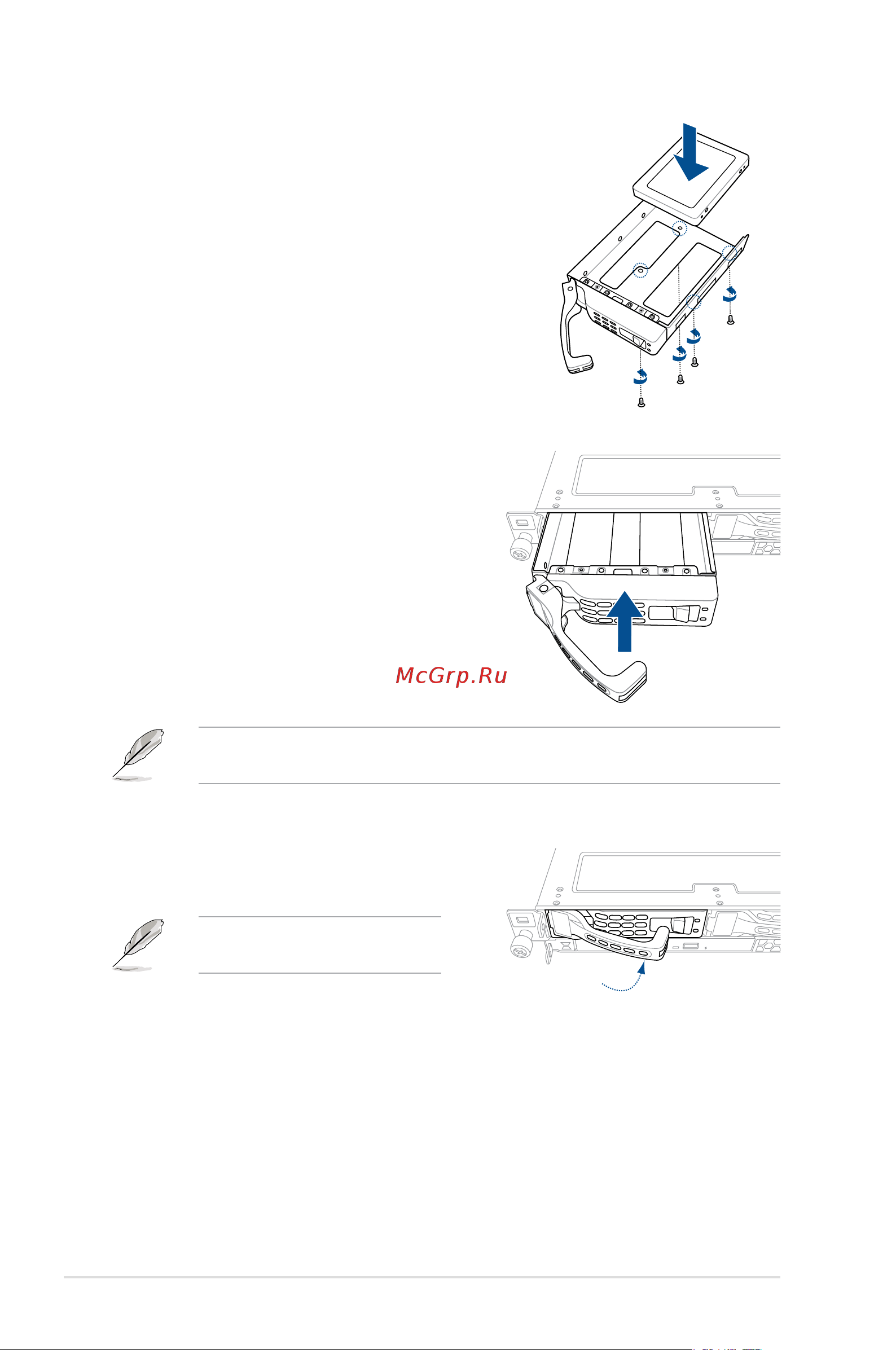

5. Place the 2.5” storage device into the

tray then secure it with four screws.

7. Push the tray lever until it clicks and

secures the tray in place.

The tray is correctly placed when its

front edge aligns with the bay edge.

8. Repeat steps 1 to 7 to install the other

storage devices.

When installed, the SATA/NVMe connector on the storage device connects to the SATA/

NVMe interface on the backplane.

6. Insert the tray and storage device

assembly all the way into the depth of

the bay until just a small fraction of the

tray edge protrudes.
