Chapter 2: Hardware Information

2-26

Ensure that the M.2 card is

positioned between the top screw

and the stand screw before

securing it.

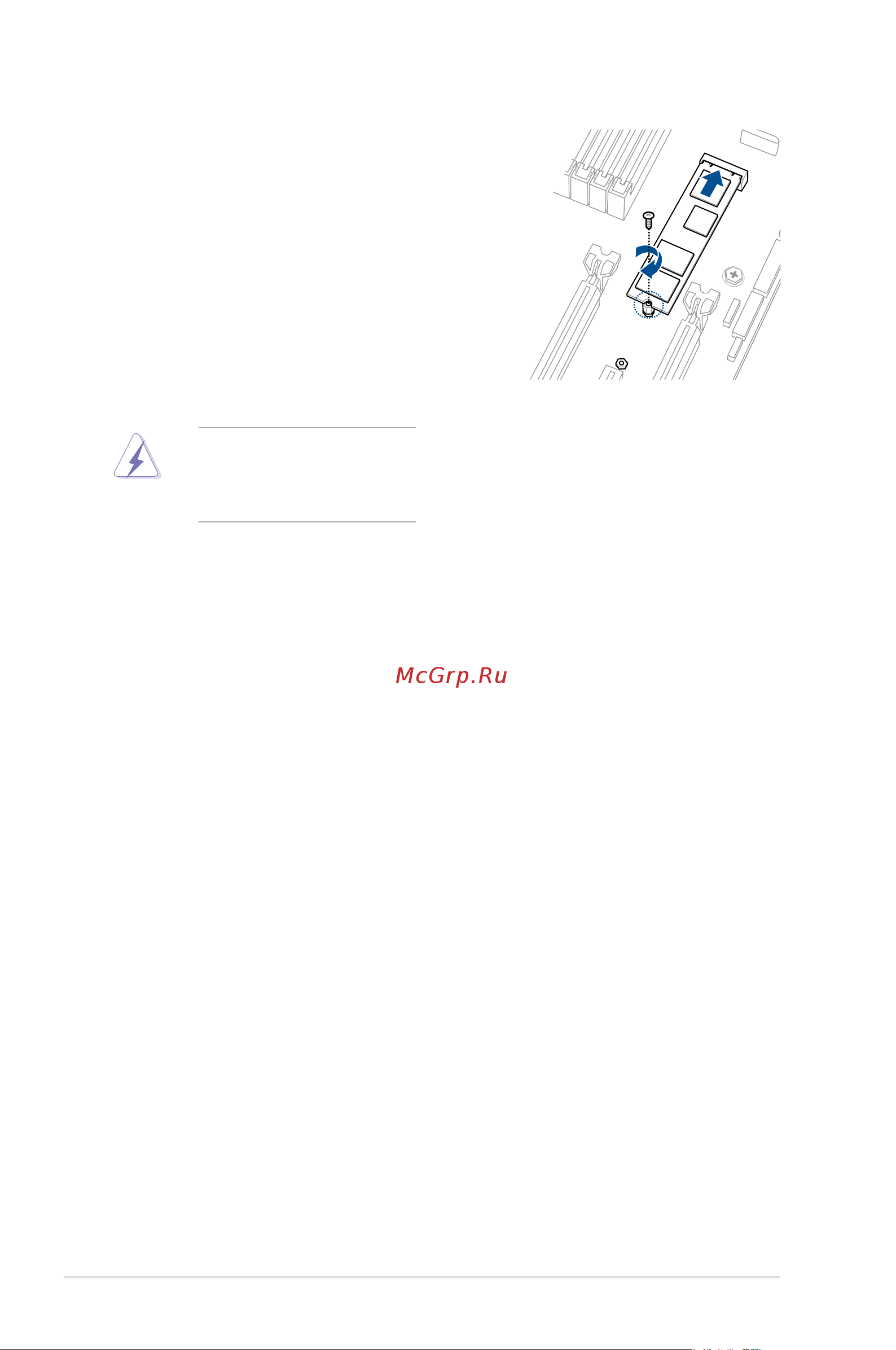

4. Prepare the M.2 card.

5. Align and insert the M.2 card into the

M.2 connector on the motherboard.

Ensure that the golden connector

of the M.2 card is inserted firmly in

place and that the screw hole on the

M.2 card matches the stand screw

on the motherboard.

6. Secure the M.2 card with the top

screw.
