2-19

ASUS RS500A-E10 Series

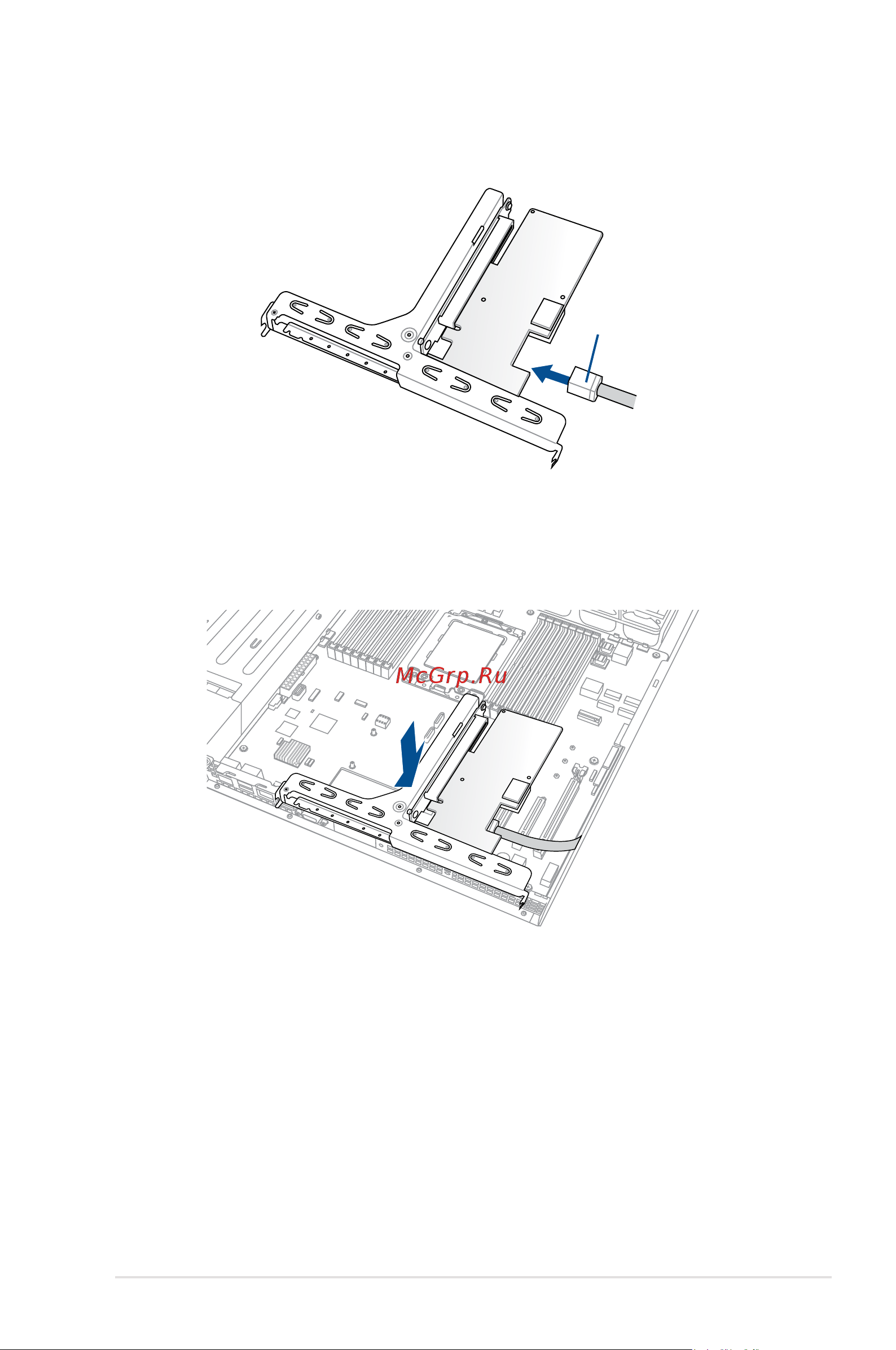

6. Connect the mini-SAS HD cable to connector 1 of the ASUS PIKE II card.

Connect to PIKE II

connector 1

7. Reinstall the riser card bracket into the PCI Express slot on the motherboard. Ensure

that the golden connectors of the riser card bracket is firmly seated in place.
