Component Identification
18 3A6283H

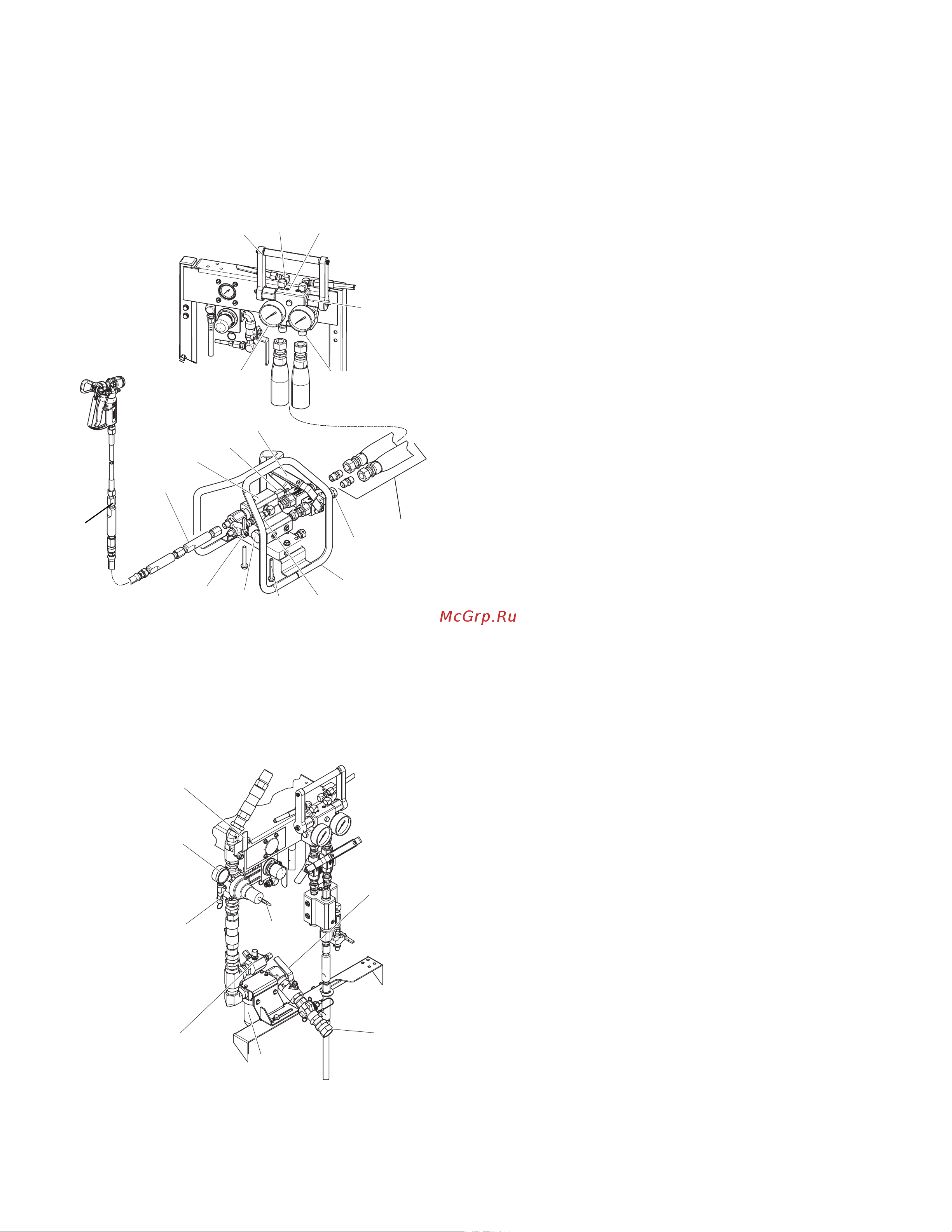

Fluid Control Assembly
Shown with water-heated hose configuration
Main Air Controls
$$
$&
$0
$)
$-
$%
$.
$'
$5
$3
$/
$:$1
WLE
$+
$(
$1
0&
$8
Key:
AA Recirculation Manifold
AB Mix Manifold
AC Recirculation Handle (shown closed), see page 21.
AD Solvent Flush Valve
AE Dual Shutoff Handle (shown closed)
AF Fluid Pressure Gauges
AH Fluid Recirculation Fittings
AJ B Component Adjustable Fluid Restrictor; see page 42
AK A and B Mix Manifold Check Valves
AL Solvent Inlet Check Valve
AM Automatic, Spring Loaded, Color-Coded, Over-Pressure
Relief Valves; with grease fittings
AN Static Mixer Tubes; 3/8 npt(m)
AP Recirculation Manifold Outlet
AR Mix Manifold Inlet
AW Primary Static Mixer Tubes
AV Cleanup Static Mixer Tube
AU Long Fasteners (shipped loose with Remote Manifold kit)
MC Remote Manifold Carriage
AV
WLD
&$
&'
&%
&*
&)
&(
&&
$,
Key:
AI Main Air Inlet
CA Motor Air Valve
CB Motor Air Pressure Regulator
CC Air Filter with Auto Drain
CD Main Motor Air Pressure Gauge
CE Filtered Air Distribution Manifold
CF Main Air Shutoff Valve
CG XP-hf Motor Air Pressure Relief Valve
