Setup
3A6283H 29

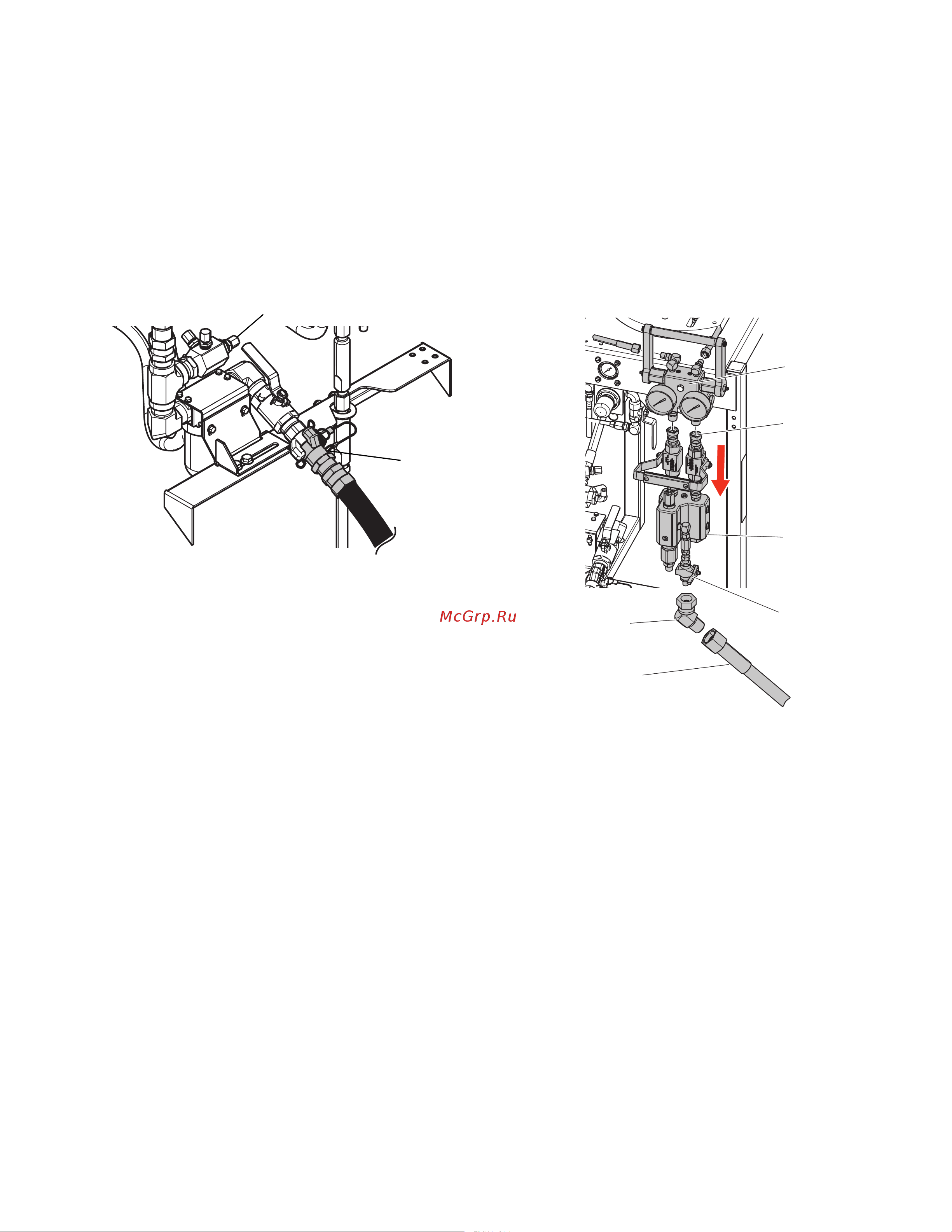

Connect Air Supply
Connect the air supply hose to the main air inlet (AI).
Use a 1.0 in. (25.4 mm) ID minimum air hose. Do not
use pin fitting type quick disconnect.
Connect any air-powered accessories to the accessory
port (CM).
Connecting Heated Hose to
Proportioner
1. Disconnect the solvent outlet hose (BF) and elbow
fitting (BK) from the solvent flush valve (AD).
2. Loosen the union fittings (AR) on the mix manifold
inlet that connect to the recirculation manifold (AA)
to disconnect the mix manifold (AB).
3. For water jacketed heated hoses, follow Connect
Static Mixers, Gun, and Hoses, page 29.
4. For electric heated hoses, see your heated hose
manual for installation. See Related Manuals, page
3.
WLD
AI
CM
WLE
$$
$5
$%
%.
%)
$'
