Graco XP70s-hf 577222 [77/86] Diaphragm pump 273093 parts
![Graco XP70s-hf 577222 [77/86] Diaphragm pump 273093 parts](/views2/1906144/page77/bg4d.png)
Parts
3A6283H 77

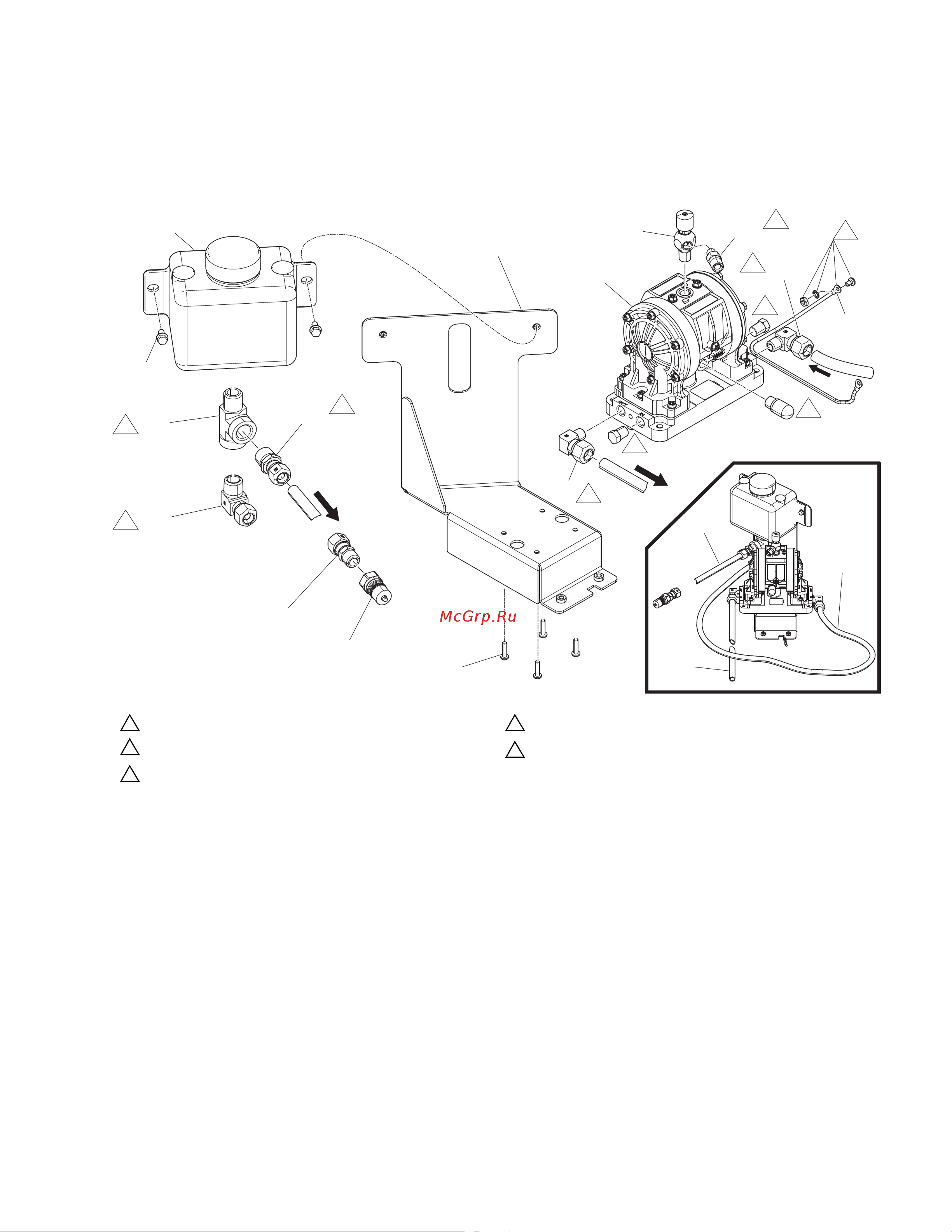

Diaphragm Pump 273093 Parts
(Water Jacketed Heated Hose Packages Only)
WLD
D
Apply thread sealant to all non-swiveling pipe threads.
Orient fittings as shown.
Install two loose plugs and muffler provided with pump
in the ports indicated.
Orient fittings approximately 15 degrees away from pump.
Install ground wire between screw and washer.
The nut is held in the slot of the pump.
1
2
4
6
8
Ref. Part Description Qty.
801 108126 FITTING, tee, street
1
802 126897 FITTING, elbow, 1/2 tube x 1/4
nptm
2
803 126898 FITTING, elbow, 1/2 tube x 1/2
nptm
1
804 126899 FITTING, 1/2 tube x 1/2 nptm
1
805 16D939 FITTING, nipple, reducing
1
806 16R871 BOTTLE, overflow, 1/2 npt
1
807 17P088 BRACKET, XP-hf, re-circ, painted
1
808 206264 VALVE, needle
1
809 24T761 PUMP, acetal, w/pvdf check,
husky
1
810 113161 SCREW, flange, hex hd
2
811 17N910 TUBE, red, 0.5 o.d., nylon
2
812 17N911 TUBE, blue, 0.5 o.d., nylon
1
814 126900 FITTING,1/2 tube x 3/8 nptm
1
815 17D307 FITTING, nipple, quick coupling
1
818 17N595 WIRE, ground, door to enclosure
1
819 248208 HOSE, coupled
1
Ref. Part Description Qty.
