Setup
3A6283H 23
Setup
Initial System Setup
1. Check the shipment for accuracy. Ensure you have
received everything you ordered. See Component
Identification, page 15.
2. Check for loose fittings and fasteners.
3. If any accessories are added, refer to their Related
Manuals listed on page 3 for all warnings and
instructions.
4. Confirm air supply requirements. This system
requires a 1.0 in. airline.
5. Confirm electric power requirements and a make
sure a properly sized electrical cord is used.
NOTE: A minimum of 25 gallons (95 liters) of heating
fluid is needed. Additional heating fluid is needed if
water heated hose is used.
NOTE: A minimum of 10 gallons (39 liters) of “A” and “B”
materials are needed to load the hoppers and prime the
system.
NOTE: A minimum of 25 gallons (95 liters) of solvent is
required for flushing.
NOTE: Empty metal pails for both “A” and “B” materials
are required for flushing.
Location
1. Locate the proportioner on a level surface. Follow
the Proper Lifting of Sprayer procedure.
2. Position the proportioner for convenient operator
access and maintenance, proper routing of air and
fluid lines, and easy connection of components and
accessories.
Proper Lifting of Sprayer
Lift Using a Forklift
The proportioner can be raised and moved using a
forklift. Disconnect power and air from the system.
Carefully lift the proportioner; make sure it balances
evenly.
Lift Using a Hoist
• Lift the system with a lift apparatus rated
appropriately for the weight of the system (see
Technical Specifications, page 83).
• Do not lift the system by the handle on the hoppers
or air motor lift ring.

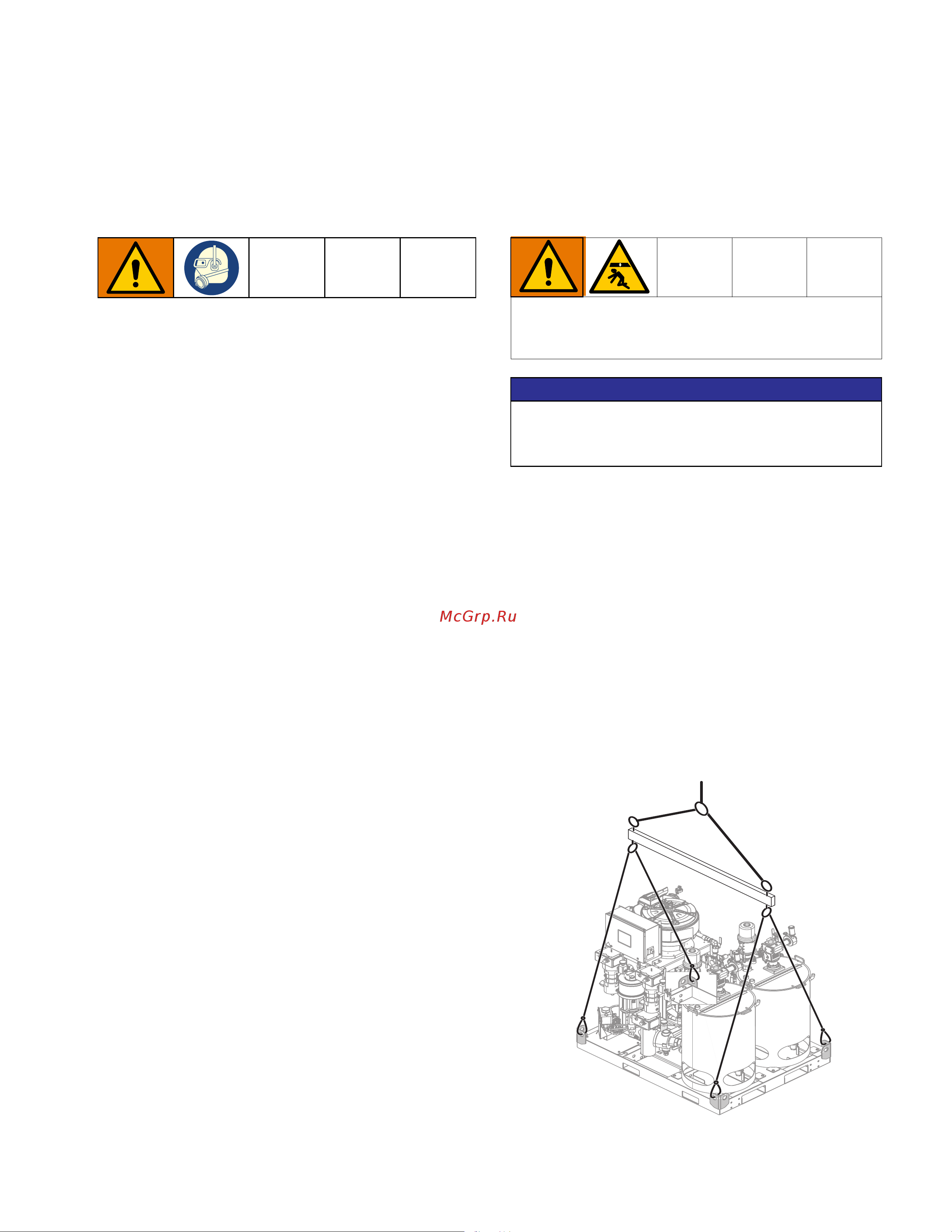

• Lift the system using the lift eyes shown in the lifting
illustration.
Follow these instructions to help prevent serious
injury or damage to equipment. Never lift while a
hopper is filled.
NOTICE
To prevent spilling and to ensure even weight
distribution, drain all fluid prior to lifting the
proportioner.
WLD
