Setup
32 3A6283H

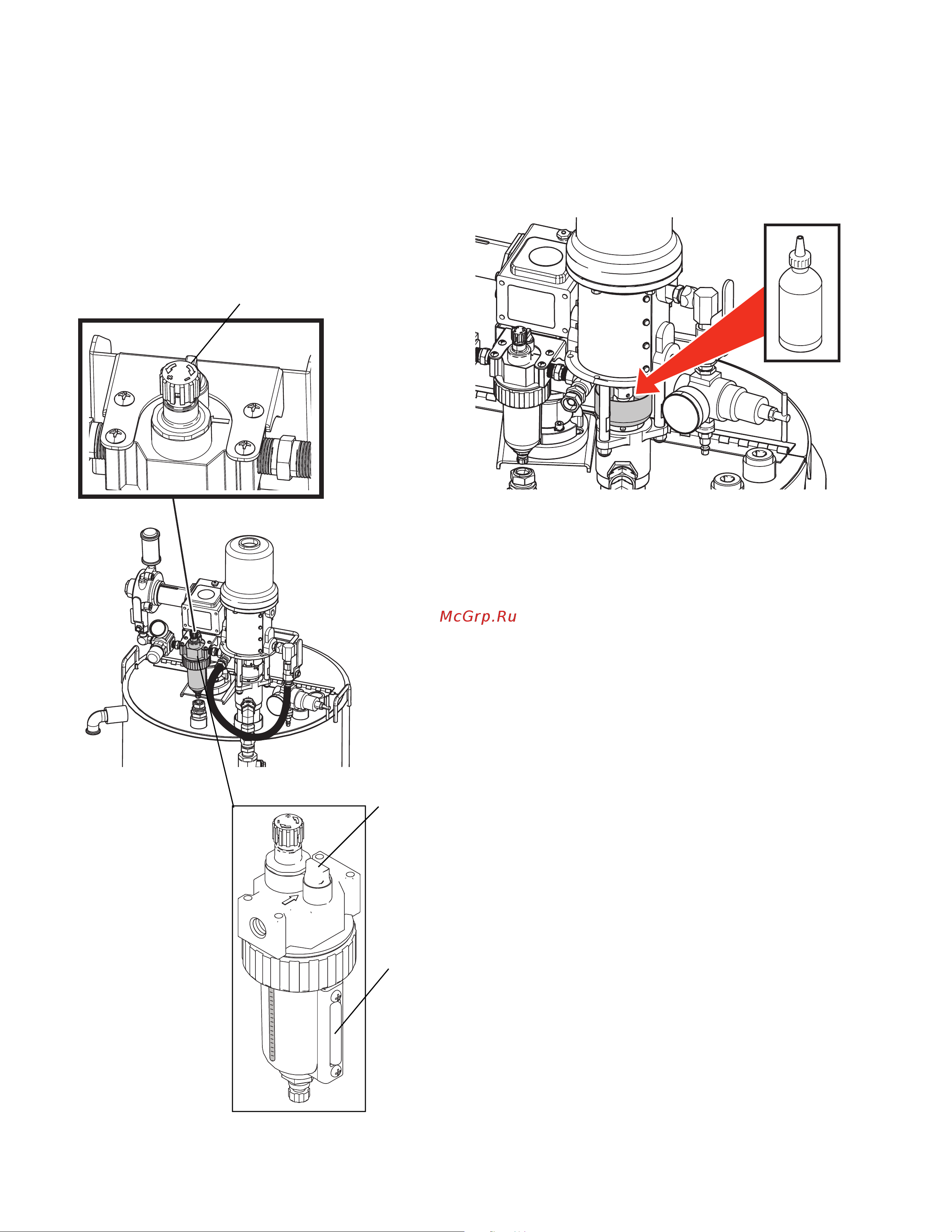

Agitators (ED)
The Xtreme-Duty Agitator is provided with an airline
lubricator to aid in proper maintenance. Fill the lubricator
with Air Motor Oil 202659 (do not fill past the maximum
level shown in the oil fill sight glass). Set the lubricator
feed rate at one drop of oil per minute. Do not overfeed
the oil, or the exhaust air may become contaminated.
Feed Pumps (EE)
Fill the wet-cup half full with Graco Throat Seal (TSL
™
)
or a compatible solvent.
WLE
ti34269a
Oil Fill
Sight
Glass
Fill Port
Adjusting Knob
WLD
