Setup
3A6283H 31
3. Use approximately 12 gallons (53 liters) to fill the
cavity. Stop filling when fluid is visible at the bottom
of the port elbow.
NOTE: Thermal expansion may cause the heating fluid
to overflow after it rises to temperature.
NOTE: If using water mix, the maximum fluid level must
be 1 in. (2.5 cm) below side port level.
NOTE: If oil is the heating fluid, the maximum oil level
must be 3 in. (7.6 cm) below the hopper side port level.
4. Replace the fill port cap (ET).

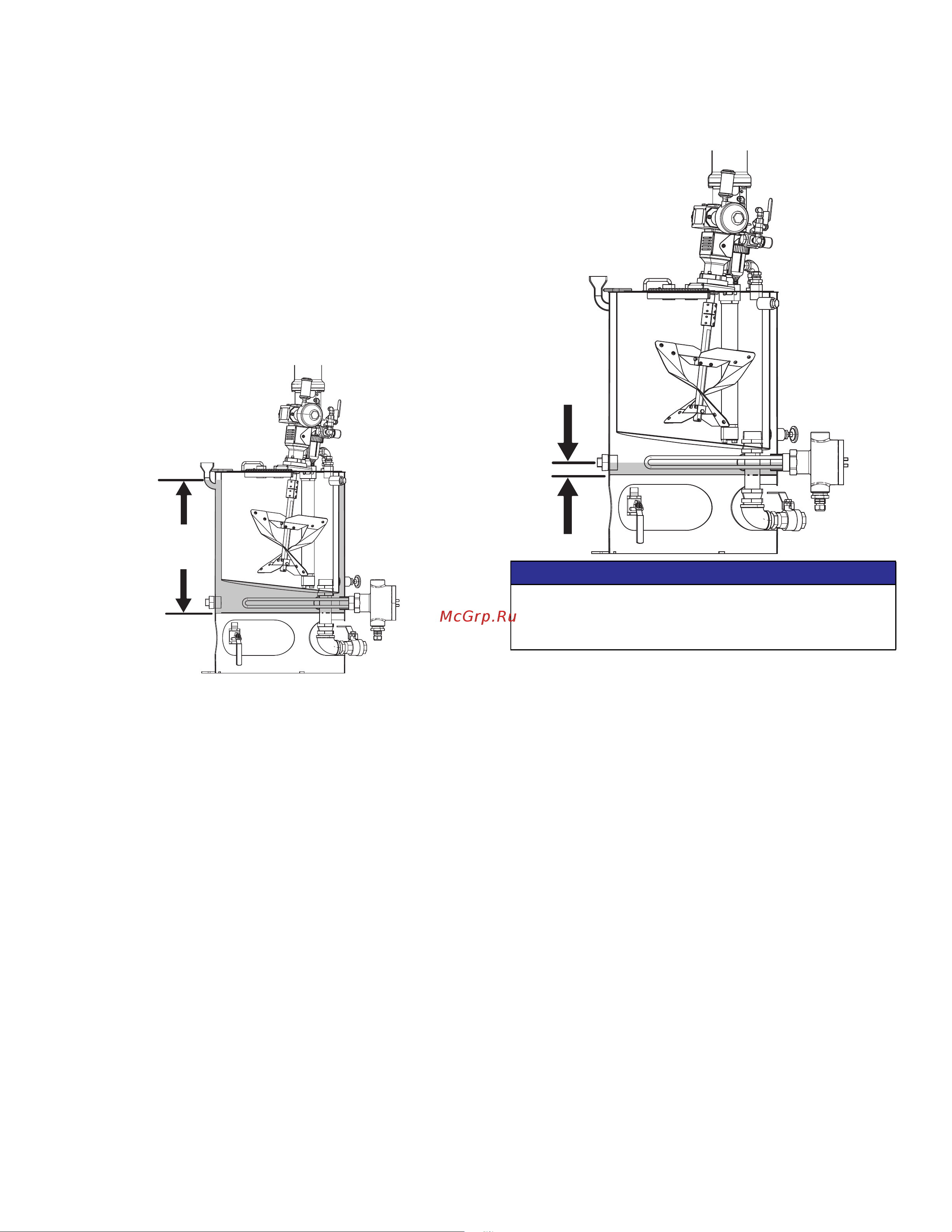

WLE
Maximum fill
level
NOTICE
Any portion of the heating element exposed to air will
lead to overheating and premature burnout. Ensure
that the element is completely submerged.
WLE
Below
required
minimum
level
