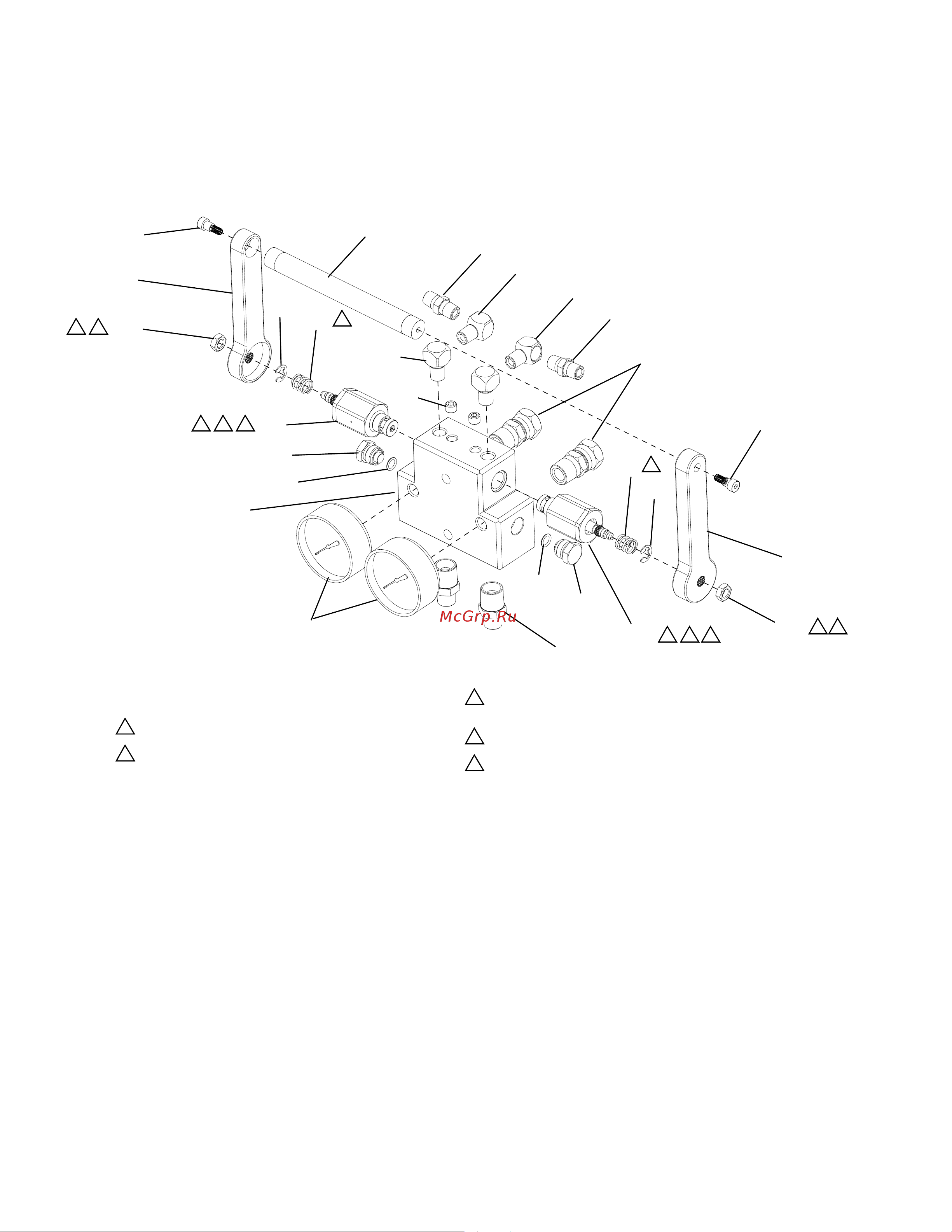

Parts
76 3A6283H
Material Recirculation Manifold with Over Pressure Relief Valve
Assembly 262783 (XP50s-hf); 262806 (XP70s-hf)
Not shown. Shipped loose.
For XP50s-hf systems only.
† For XP70s-hf systems only.
NOTE: Loose fittings are supplied with replacement manifold
to also fit Series A (XP70s) Proportioners with 3/8 in. mix
manifold ball valves.
* Fitting orientation can be modified to allow for easier routing
of recirculation lines. Remove fitting (708) and reinstall fitting
(709).
1. Apply anaerobic pipe sealant to all non-swiveling pipe
threads.
Torque to 28-32 ft-lb (38-43 N•m).
Apply blue anaerobic adhesive to threads.
Further tighten either valve (302) as required to line
up handle straight across.
Apply grease to spring ends.
Torque to 70-90 in-lb (7.9-9 N•m).
2
3
4
5
6
701
713
716
711
702
717
708
707
705
710
712
713
703
709
708
708*
709*
717
705
2 3
r_258988_3a0420a_1c
718
718
702
2 3 4
4
704
720
720
711
704
3
3
6
5
5
6
Ref Part Description Qty
701 16D693 BLOCK, manifold, recirculation
1
702† 262520 VALVE, over pressure relief, silver,
XP70s-hf
2
262809 VALVE, over pressure relief, gold,
XP50s-hf
2
703 156684 UNION; 1/2 in. male x female
2
704 112309 NUT, hex, jam
2
705 198241 PLUG, port, pressure; 11/16-24
2
707 114434 GAUGE, pressure, fluid, sst; 10k psi
2
708 100840 FITTING, elbow, street; 1/4 npt
4
709 156971 FITTING, nipple; 1/4 npt x npsm
2
710 557349 PLUG, dry seal 1/8 npt
2
711 16E334 HANDLE, manifold
2
712 16E332 ROD, connecting, handle
1
713 124859 SCREW, button head
2
716 156684 FITTING, nipple, 1/2 npt x 1/2 npt
2
717 121399 O-RING, solvent resistant
2
718 124676 RING, snap, external
2
720 150829 SPRING, compression
2
751 159239 FITTING, nipple, pipe, reducing
2
752 156173 UNION, swivel
2
Ref Part Description Qty
