Operation
38 3A6283H

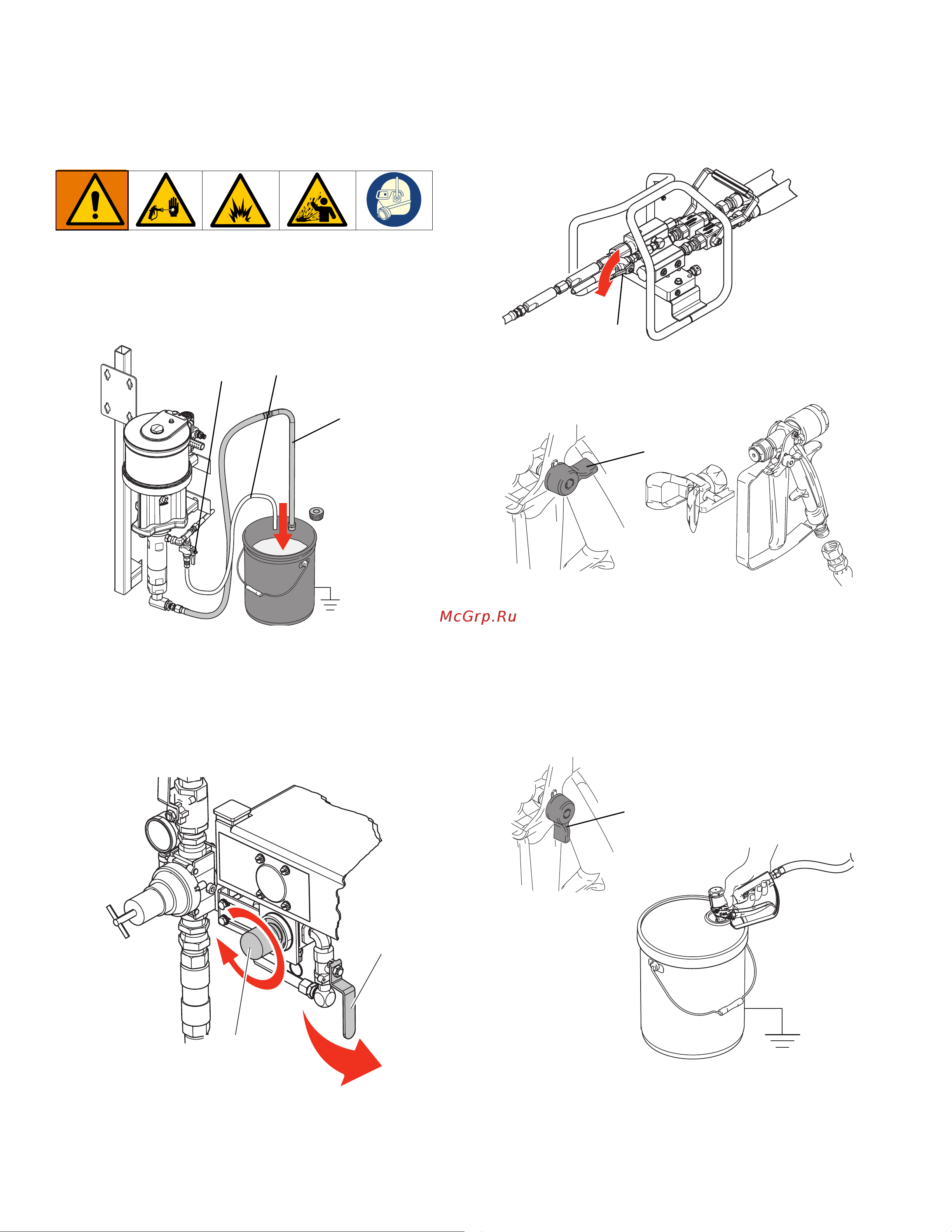

Prime Solvent Pump
1. Connect a ground wire (not included) to a metal pail
of solvent.
2. Place the siphon tube (BB) and the solvent
circulation hose (BG) in the pail of solvent.
3. Open the solvent prime valve (BE).
4. Open the solvent pump air valve (DA). Slowly turn
the solvent pump air regulator (DB) clockwise to
prime the solvent pump and route solvent back to
the pail. Close the solvent prime valve (BE) and air
valve (DA).
5. Open the solvent flush valve (AD) on the mix
manifold.
6. Ensure the trigger lock (TL) is engaged. Remove
the spray tip.
7. Disengage the trigger lock (TL) and trigger the gun
into a grounded metal pail while holding the metal
part of the gun firmly against the side of the pail.
Use a pail lid with a hole to dispense through. Seal
around the hole and gun with a rag to prevent
splash back. Be careful to keep fingers away from
the front of the gun.
WLD
BB
BG
BE
WLD
DB
DA
WLD
AD
ti1948a
TI1949a
TL
WLD
ti1950a
TL
