Parts
3A6283H 75

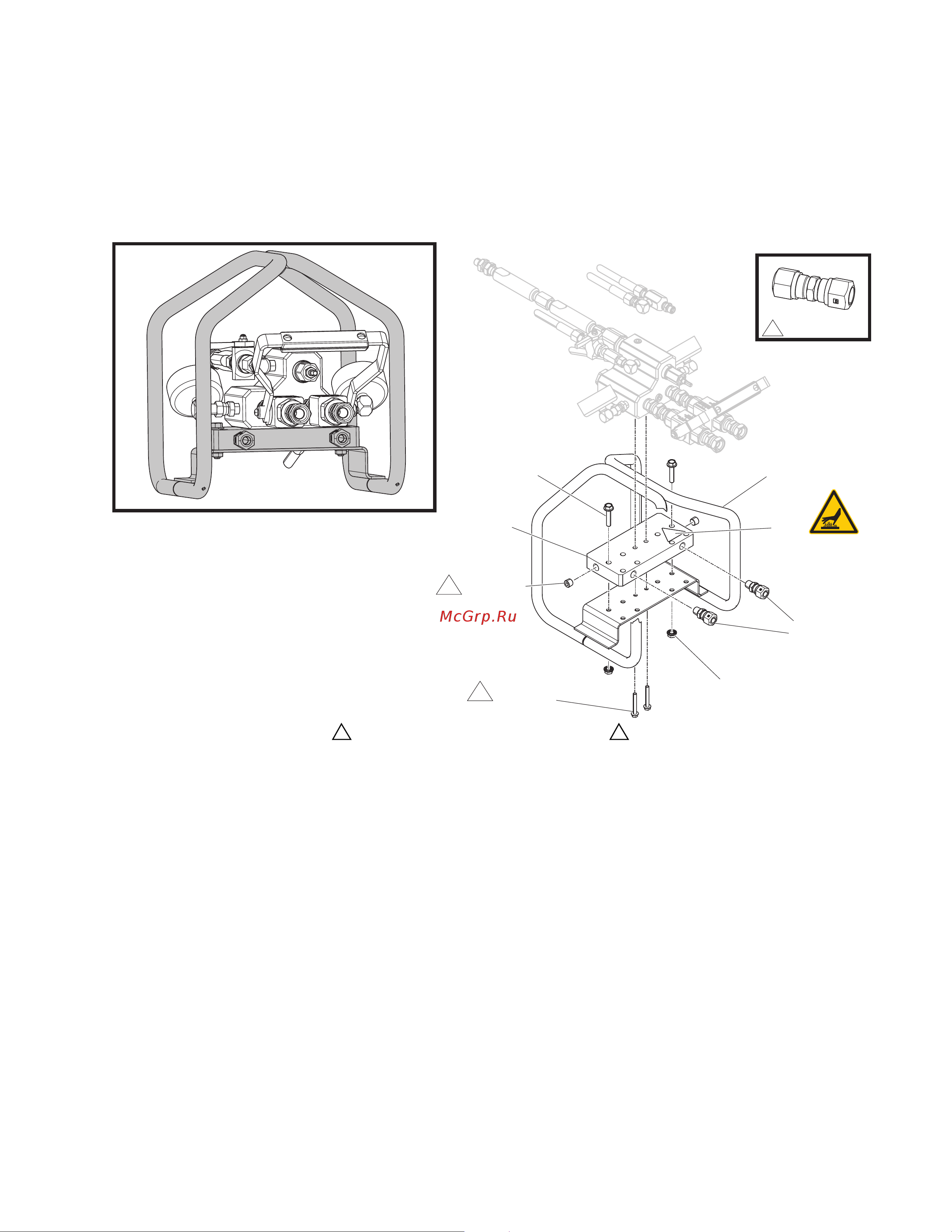

Heater Block Remote Manifold Kit
(Water Jacketed Heated Hose Packages Only)
Kit 24Z934
WLD
[
[
[
[
Apply thread sealant to all non-swiveling
pipe threads.
Supplied loose, not installed.
1 2
Ref. Part Description Qty.
601 24F834 CARRIAGE, weldment, remote manifold 1
602 16T294 PLATE, heater transfer, PFP 2k 1
603 110837 SCREW, flange, hex 2
604 110996 NUT, hex, flange head 2
605 126692 FITTING, tube, NPT x tube 2
606 100721 PLUG, pipe 2
608 189285 LABEL, safety, burn 1
609 120736 SCREW, hex flange HD 2
610 126894 FITTING, union, 1/2 tube x 1/2 tube 2
611* 054960 TUBE, red, nylon, 0.375 (9.5 mm) ID (1.5 ft) 1
612* 054961 TUBE, blue, nylon, 0.375 (9.5 mm) ID (1.5 ft) 1
* Supplied loose, not installed.
Replacement safety labels, tags, and cards are available at no cost.
