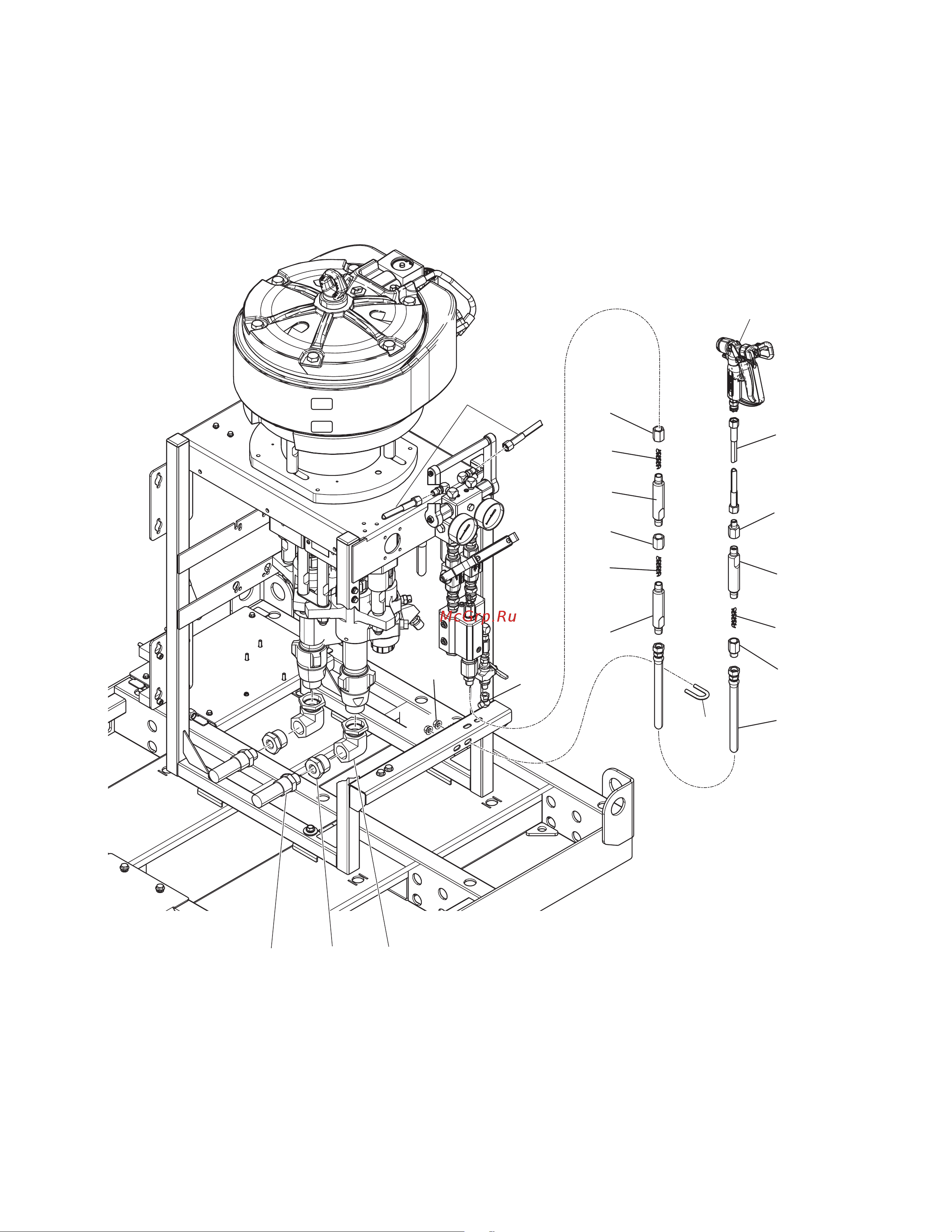

Parts
62 3A6283H
XP50s-hf and XP70s-hf Proportioners (Continued)
WLF
214
208
225
217
218
215
225
219
220
215
225
214
230
223
215
