Graco XP70s-hf 577222 [73/86] Solvent pump 262392 parts
![Graco XP70s-hf 577222 [73/86] Solvent pump 262392 parts](/views2/1906144/page73/bg49.png)
Parts
3A6283H 73

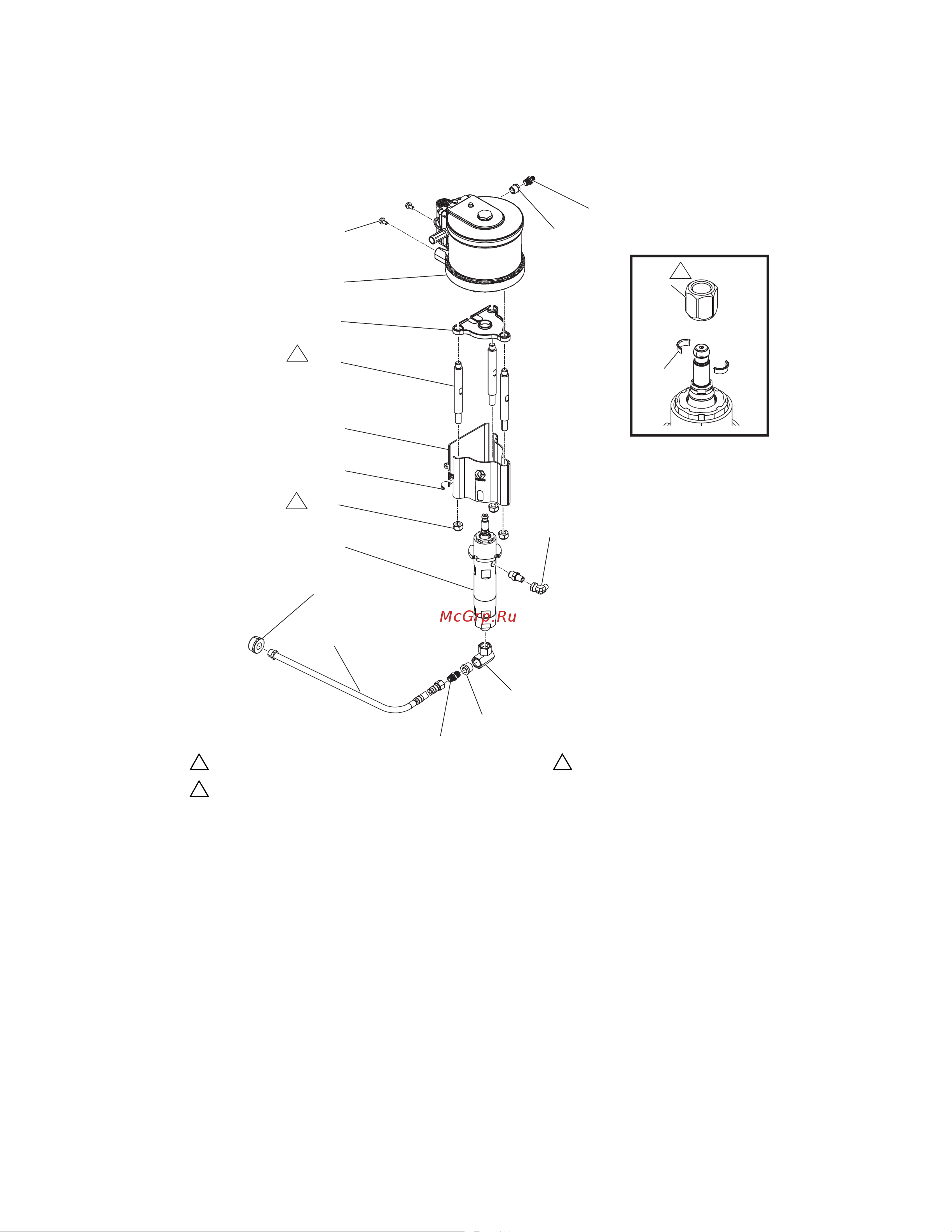

Solvent Pump 262392 Parts
WLE
Torque to 50-55 ft-lb (68-75 N•m).
Torque to 50-60 ft-lb (68-81 N•m).
Torque to 75-80 ft-lb (102-108 N•m).
2
3
4
Ref. Part Description Qty.
501 24F079 MOTOR, air, 6 in., std, slvt only
1
503 111799 SCREW, cap, hex hd
4
504 244675 HOSE, coupled, suction
1
505 108143 STRAINER
1
506 116395 FITTING, swivel, elbow
1
507 100081 BUSHING, pipe
1
508 157350 ADAPTER
1
510 15M662 ROD, tie
3
511 16U431 ADAPTER, 50 cc, pump lower
(not shown)
1
512 15U606 NUT, lock, m16 x 2
3
513 LW050A LOWER, assy, 50 cc
1
514 15T337 RESERVOIR, tsl, 50 cc lwr 7 1/2
motor (not shown)
2
515 184128 COLLAR, coupling
1
516 15T311 NUT, coupler
1
517 277743 SHIELD, 6.0/7.5 in.
1
518 15V028 SHIELD, drip
1
528 156589 FITTING, union, adapter, 90 deg
1
529 100505 BUSHING, pipe
1
530 156849 PIPE, nipple
1
533 105335 SCREW, mach, pnh
1
Ref. Part Description Qty.
