Flush Before Using Equipment

The system was tested with lightweight oil, which is left

in the fluid passages to protect parts. To avoid

contaminating your fluid with oil, first flush the

equipment with a compatible solvent before using the

equipment. Follow the Flushing procedure, page 44.

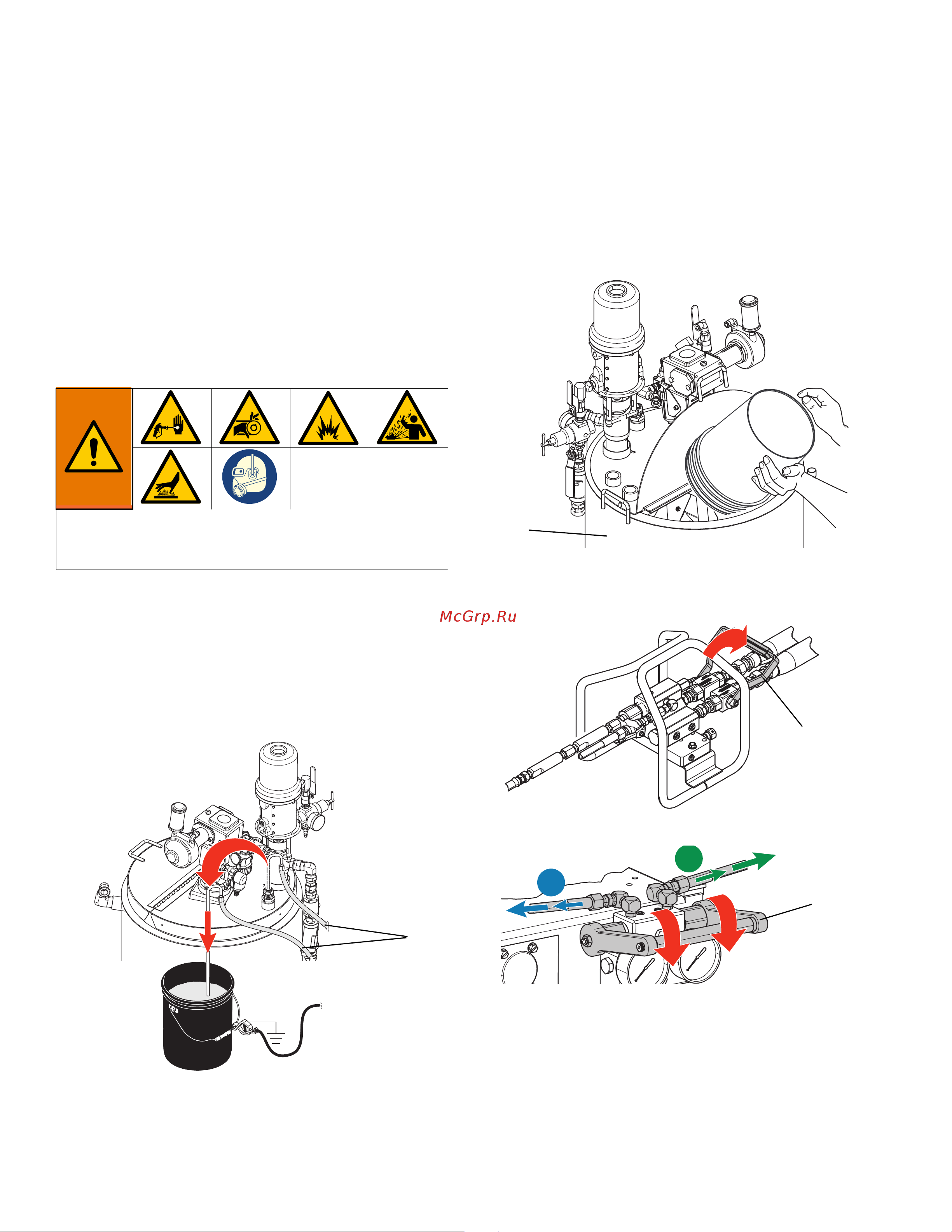

Prime the Empty System

1. Prepare your materials prior to adding to heated

hoppers. Ensure resin materials are thoroughly

agitated, homogeneous, and pourable prior to

adding them to the hopper. Stir hardeners back into

suspension prior to adding material to the hopper.

2. Move the recirculation lines (U) to grounded empty

containers.

3. Fill the “A” and “B” hoppers (J) with respective

material, up to 25 gallons. Fill the “A” side (blue)

with resin or base material. Fill the “B” side (green)

with the hardener or catalyst.

4. Open the main air valve.

5. Close the dual shutoff handle (AE).

6. Open the recirculation handle (AC).

To help prevent injury from burns, wear gloves when

using solvents and/or if the fluid temperature exceeds

122 °F (50 °C).

WLD

WLE

WLD

WLD
