Operation
3A6283H 35

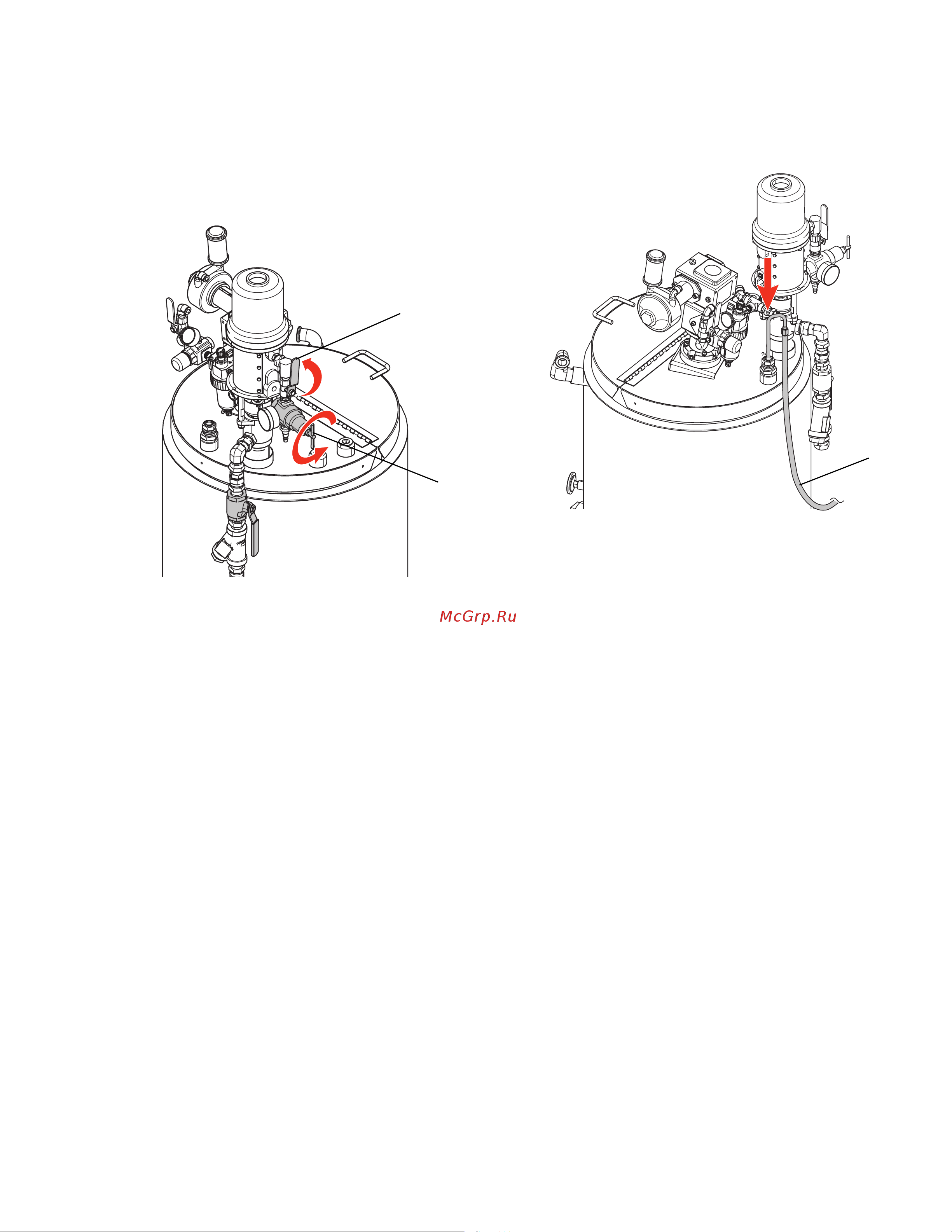

7. Fully open the feed pump air regulator (EN) and turn
the feed pump air valve (EM) to OPEN.
8. Slowly open the feed pump air regulator (EN) to
start the feed pump.
NOTE: If the material is too thick, the XP-hf pump will
need to be used. See Startup/Recirculate on page 36.
9. Dispense fluid into the containers until clean fluid
flows through the “A” and “B” recirculation lines.
10. Close the feed pump air regulator (EN).
11. Close the feed pump air valve (EM).
12. Move the recirculation lines (U) back to the correct
hopper.
13. Repeat for the other side.
14. If running solvent through the system for the first
time, proceed to Flushing on page 44 to empty the
system of solvent, then repeat this process with “A”
and “B” materials.
WLD
EM
EN
WLD
U
