Operation
3A6283H 43

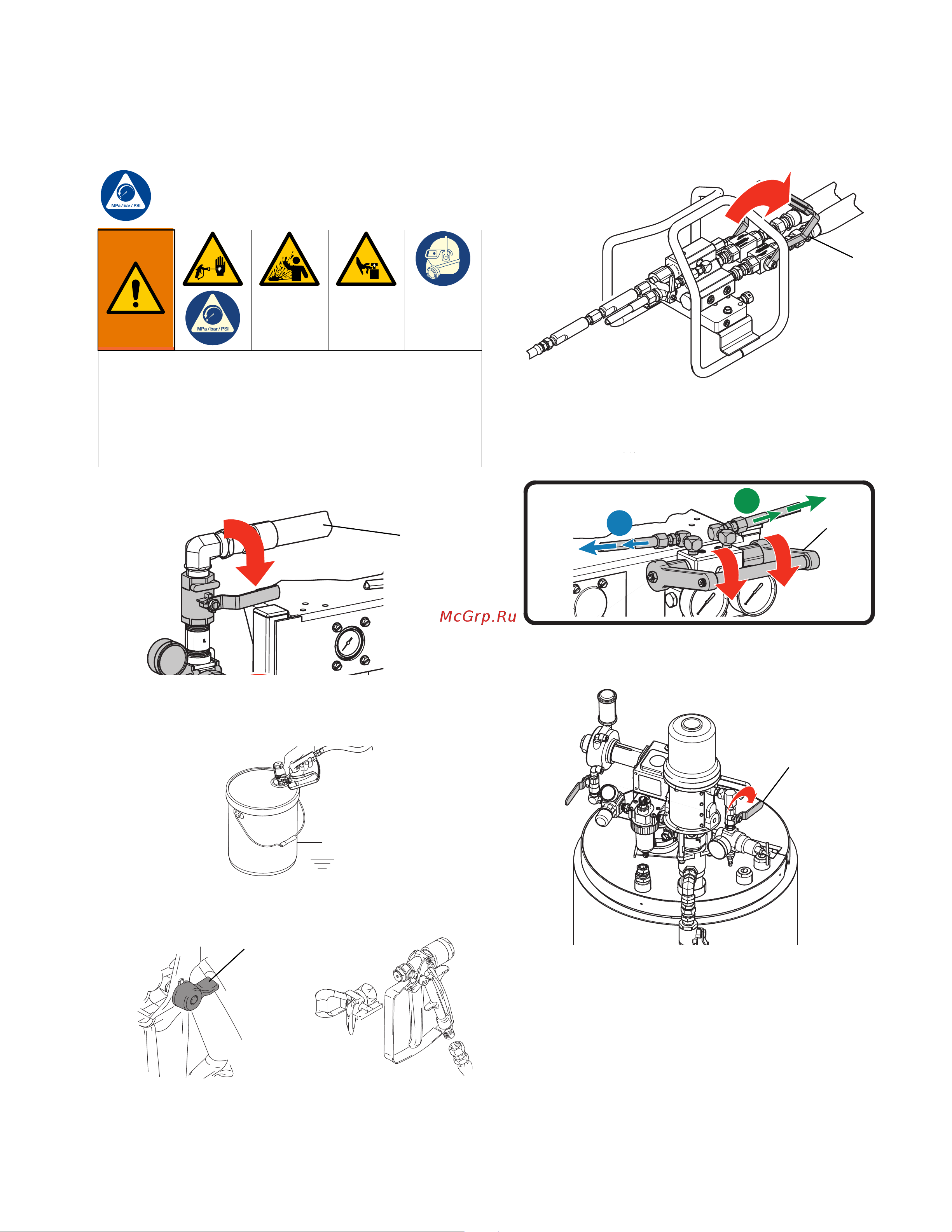

Pressure Relief Procedure
Follow the Pressure Relief Procedure
whenever you see this symbol.
1. Close the XP-hf motor air valve (CA).
2. Hold a metal part of the gun firmly to a grounded
metal pail. Trigger the gun to relieve pressure in
material hoses.
3. Engage the trigger lock (TL), then remove the spray
tip.
4. Close the dual shutoff handle (AE).
5. Open the recirculation handle (AC) to relieve “A”
and “B” fluid pressure.
6. Close both feed pump air valves (EM).
This equipment stays pressurized until pressure is
manually relieved. To help prevent serious injury from
pressurized fluid, such as skin injection, splashing fluid
and moving parts, follow the Pressure Relief
Procedure when you stop spraying and before
cleaning, checking, or servicing the equipment.
CA
WLD
ti1948a
TI1949a
TL
WLD
AE
WLD
B
A
AC
WLD
EM
