Parts
72 3A6283H

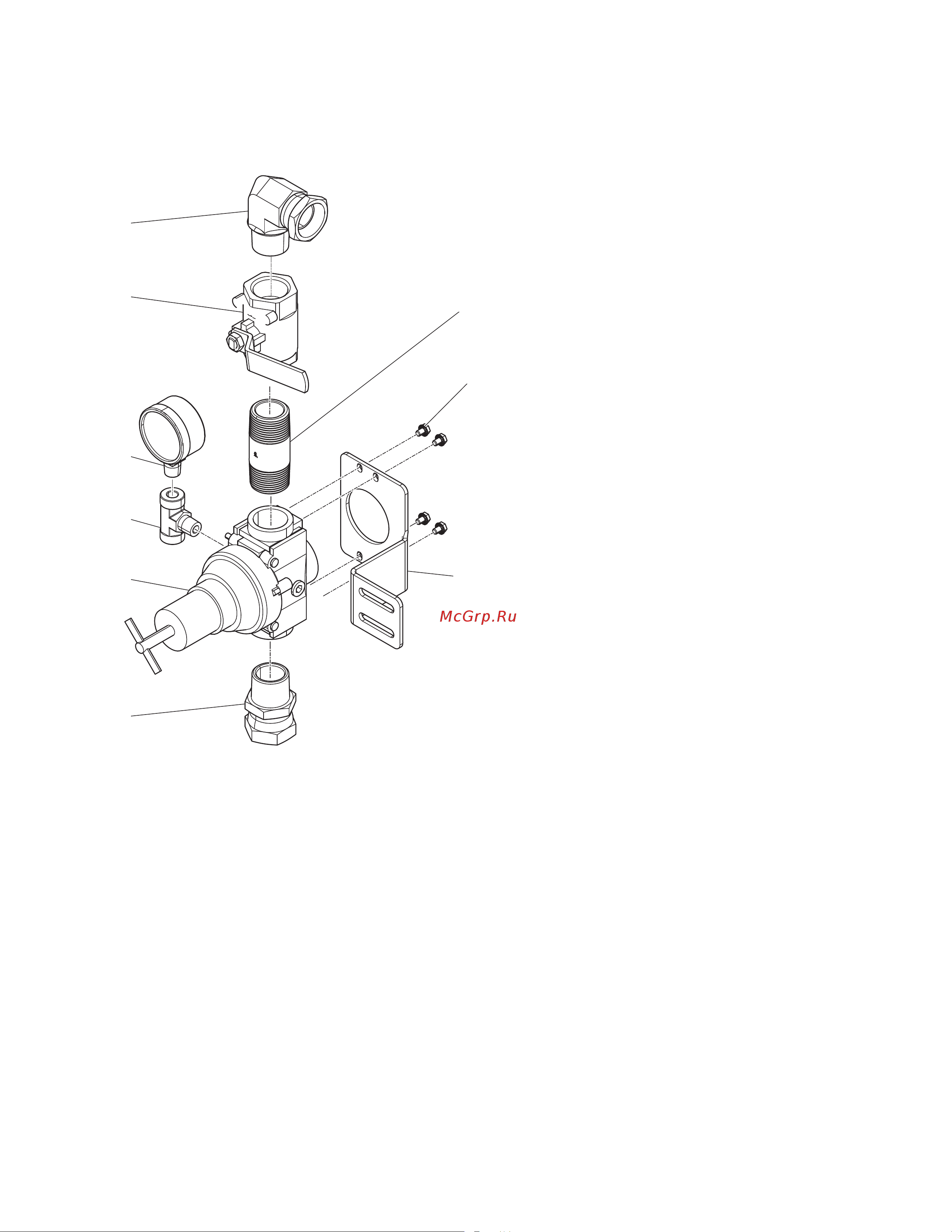

Air Control Regulator 25N575 Parts
WLE
Ref. Part Description Qty.
402 119363 FITTING, swivel, pipe
1
403 113163 VALVE, ball, vented, 1.0
1
404 17S719 FITTING, 1 in. npt x 3 in., nipple
1
405 17N463 REGULATOR, air, 1 in. npt
1
406 108638 FITTING, pipe, tee
1
407 100960 GAUGE, press air
1
408 116648 FITTING, swivel, 1 in. m x f
1
409 16P338 SCREW, mach, serrated hex head
4
410 17X553 BRACKET, XPs, regulator, painted
1
