Graco XP70s-hf 577222 [78/86] Xp hf pump assembly parts
![Graco XP70s-hf 577222 [78/86] Xp hf pump assembly parts](/views2/1906144/page78/bg4e.png)
Parts
78 3A6283H

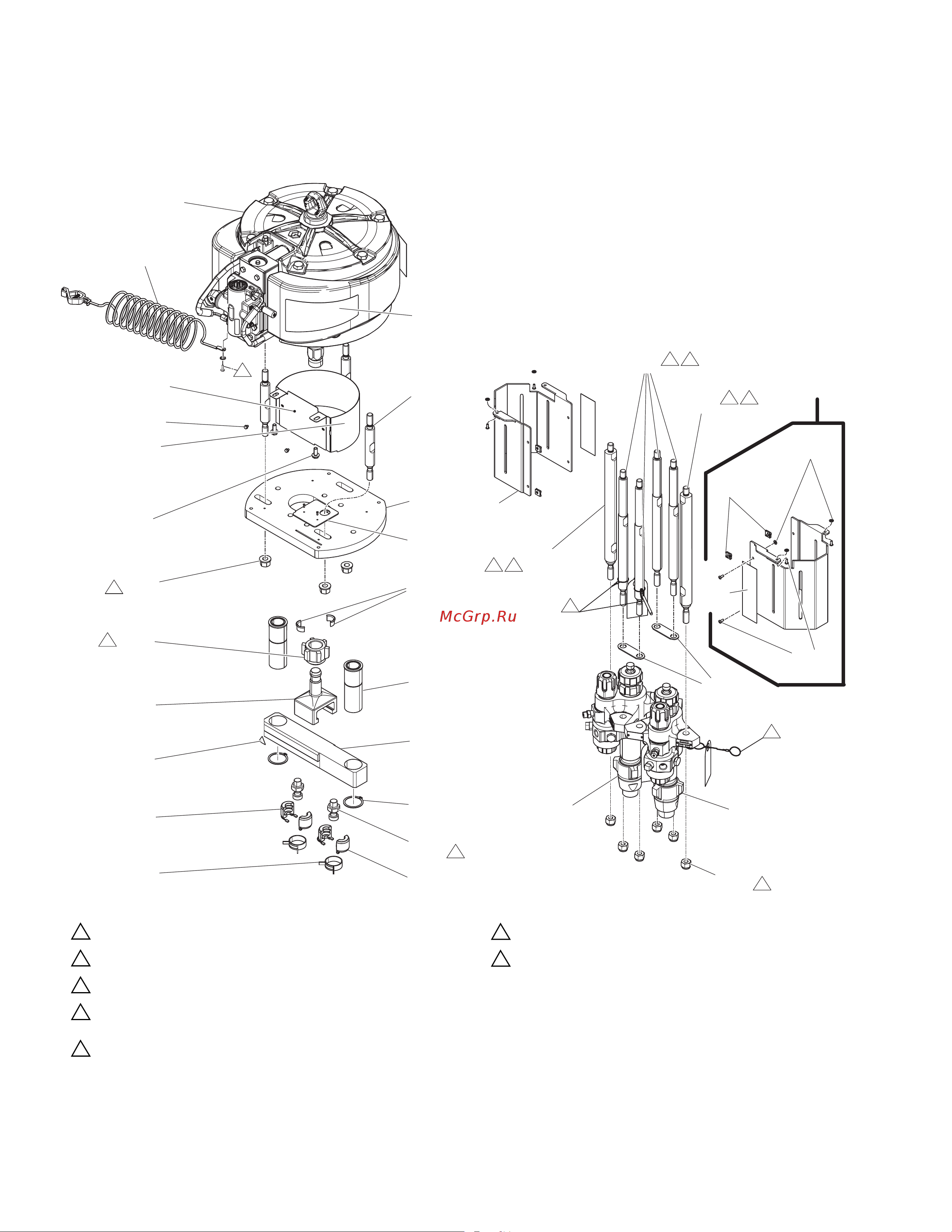

XP-hf Pump Assembly Parts
Torque to 50-60 ft-lb (68-81 N•m).
Torque to 145-155 ft-lb (196-210 N•m).
Apply medium strength (blue) threadlock to top thread only.
Pins and lanyards must be positioned toward the outside of the
pump as shown. Allow ends of lanyard to hang freely.
Remove ground screw and washer from the motor, then use to
install ground wire.
2
3
4
5
6
Torque together to 230-250 ft-lb (312-339 N•m).
Torque together to 95-105 ft-lb (129-142 N•m).
12
13
WLE
F
E
D
D
G
E
