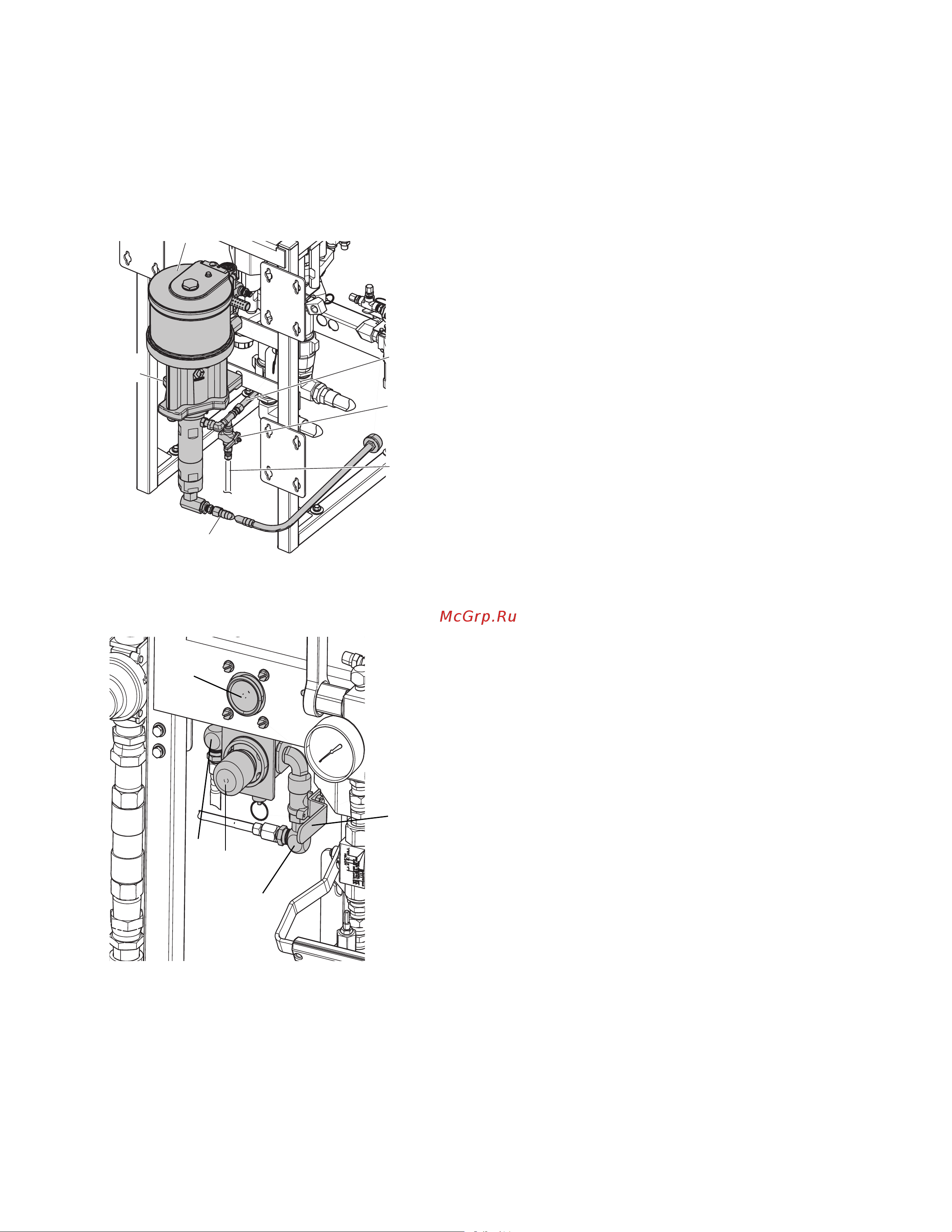

Component Identification
3A6283H 19
Solvent Pump
Pump
Air Controls
WLE
%$
%)
%(
%*
%%
%+
Key:
BA Solvent Pump
BB Siphon Tube
BE Solvent Prime Valve
BF Solvent Supply Hose
BG Solvent Prime Hose
BH Solvent Pump Wet Cup
Key:
DA Solvent Air Shutoff Valve (Relieving)
DB Solvent Air Pressure Regulator
DC Solvent Air Pressure Gauge
DD Solvent Air Outlet
DE Solvent Air Inlet
WLD
DB
DE
DC
DA
DD
