Parts
3A6283H 71

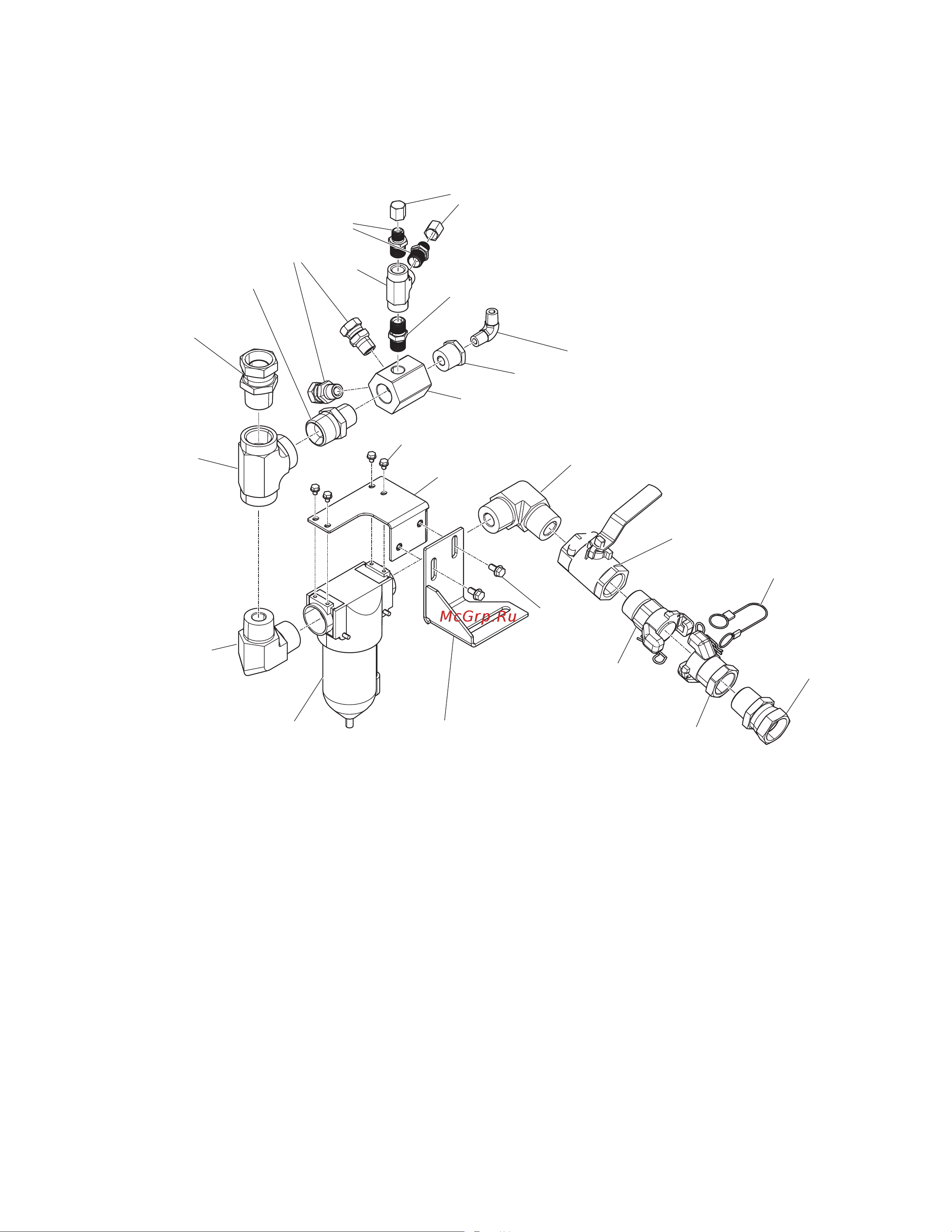

Air Control Filter 25N583 Parts
Parts List
WLE
Ref. Part Description Qty.
302 116648 FITTING, swivel, 1 in. m x f
2
303 17N485 FITTING, tee, 1 x 1 x 1 npt(f), cs,
2.2k
1
304 158555 FITTING, nipple, 1 x 3/4 npt
1
305 15E145 MANIFOLD, air distribution
1
306 100615 BUSHING, hex steel
1
307 157350 ADAPTER
3
308 115781 CAP plug
2
309 17N486 FITTING, elbow, 1 in. npt
2
310 17N462 FILTER, air, 1 in. npt
1
311 113163 VALVE, ball, vented, 1
1
312 127784 COUPLING, universal,1 in. nptm
1
313 127785 COUPLING, universal, 1 in. nptf
1
314 16W586 CABLE, lanyard, whip check
1
315 113161 SCREW, flange, hex hd
2
316 16P338 SCREW, mach, serrated hex
head
4
317 17X550 BRACKET, XPs, filter, mount,
painted
1
318 17X551 BRACKET, XPs, filter, painted
1
319 114526 FITTING, tee
1
320 155665 UNION, adapter
2
321 156849 PIPE, nipple
1
322 111763 FITTING, elbow, 1/4 npt
1
Ref. Part Description Qty.
