Operation
3A6283H 39

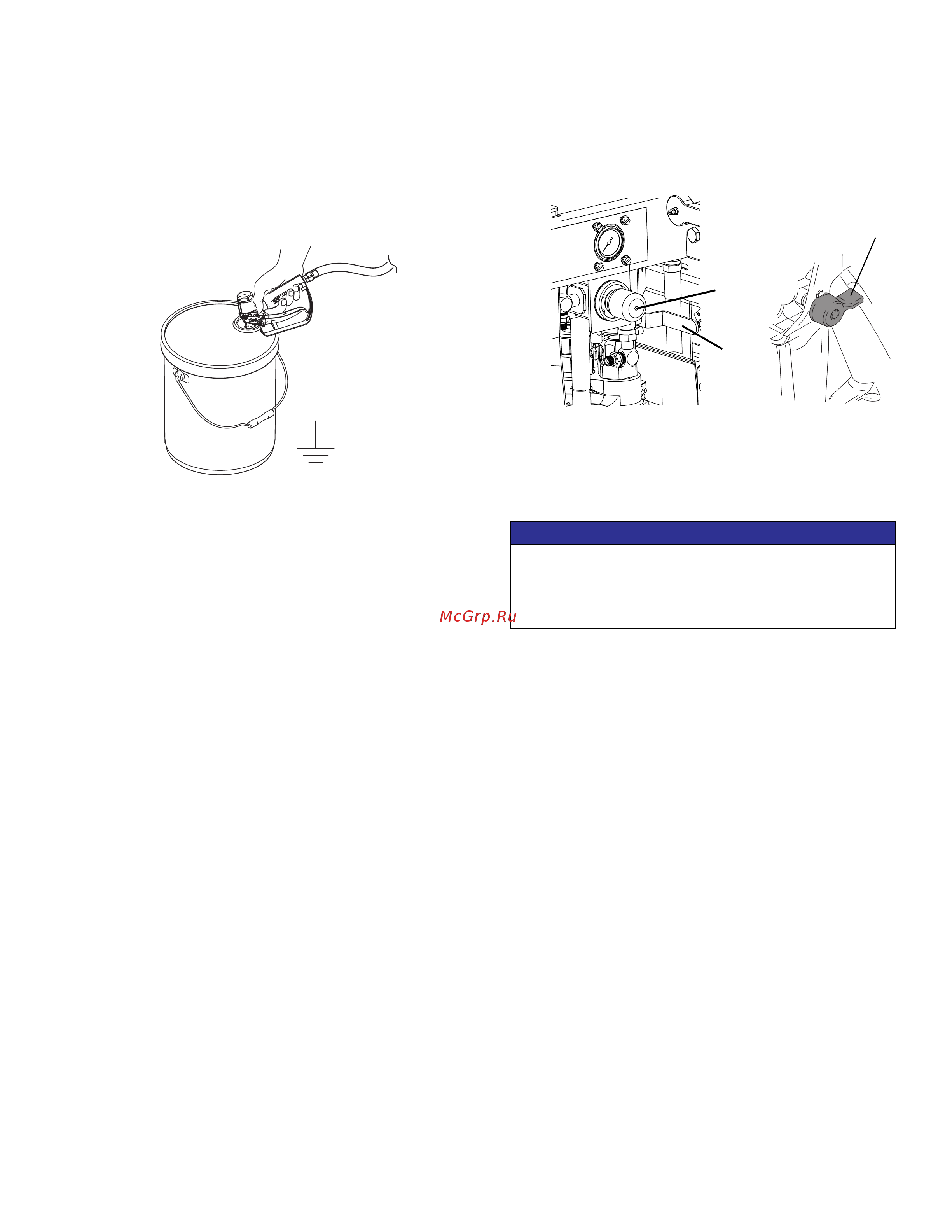

8. Slowly turn the solvent pump air regulator (DB)
clockwise to prime the solvent pump and push air
out of the mix hose and gun. Continue to hold the
metal part of the gun firmly against the side of the
grounded metal pail and trigger the gun until all air is
purged.
9. Close the solvent pump air valve (DA) and trigger
the gun to relieve pressure. Engage the trigger lock
(TL). Replace the spray tip.
10. Close the solvent flush valve (AD).
NOTE: Solvent pump may stay pressurized while
spraying.
WLD
NOTICE
To prevent material from curing inside the system,
never spray mixed material without the solvent pump
and hose primed with solvent for proper flushing in
time to clear the mixed material.
DA
DB
TL
