Operation
3A6283H 41

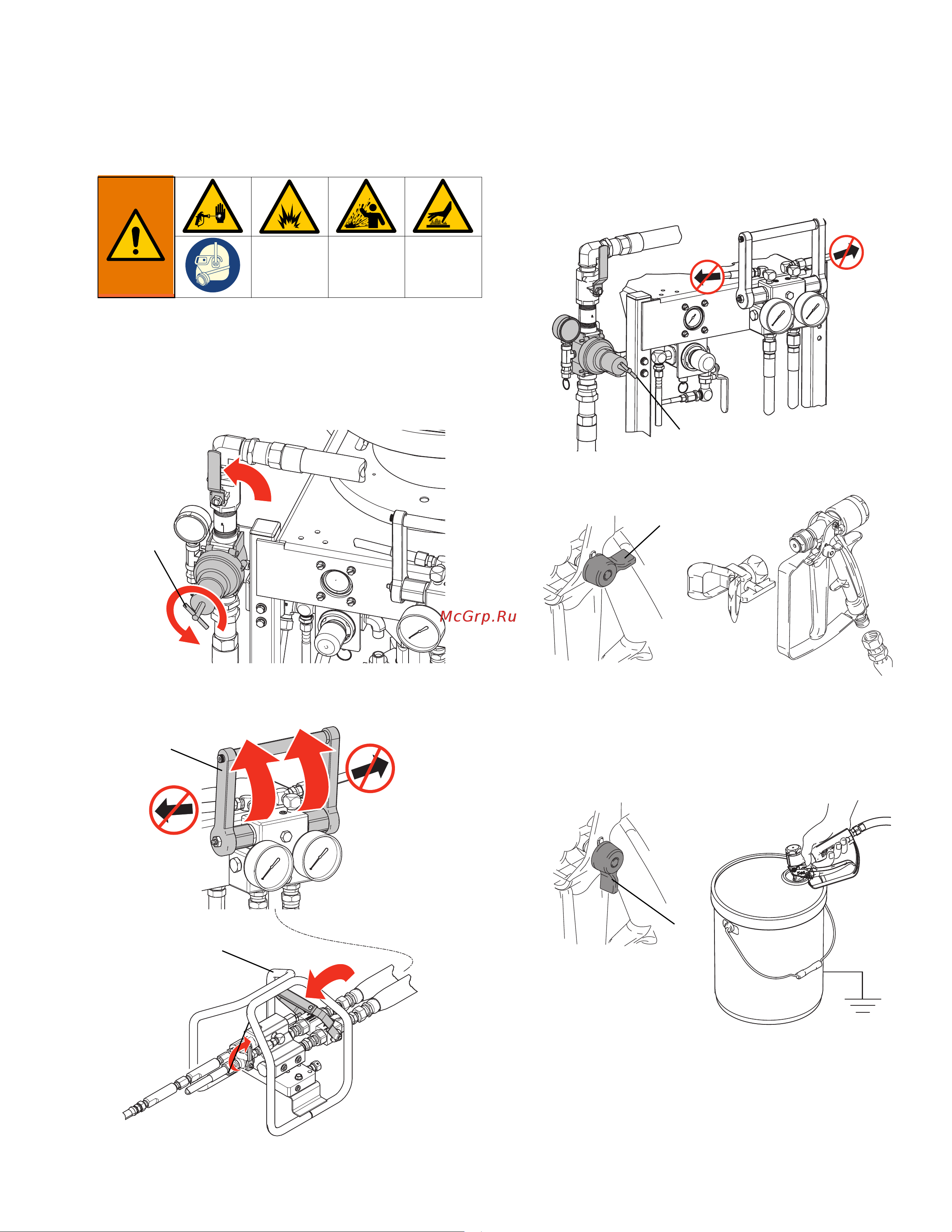

Spray
1. Follow the Startup/Recirculate procedure on page
36.
2. Ensure that the XP-hf air pressure regulator (CB)
and is fully closed and open the XP-hf air valve
(CA).
3. Close the recirculation handle (AC) and the solvent
flush valve (AD). Open the dual shutoff handle (AE).
4. Slowly increase the XP-hf air regulator (CB) to cycle
the pumps.
5. Engage the trigger lock (TL). Remove the spray tip.
6. Disengage the trigger lock (TL) and trigger the gun
while holding against a grounded metal pail. Use a
metal pail lid with a hole to dispense through to
avoid splashing-back. Dispense out of the mix hose
until a well mixed coating flows from the gun.
7. Engage the trigger lock (TL). install the tip on the
gun.
WLD
CB
WLD
AC
AE
AD
WLD
CB
ti1948a
TI1949a
TL
WLD
TL
