Operation
46 3A6283H

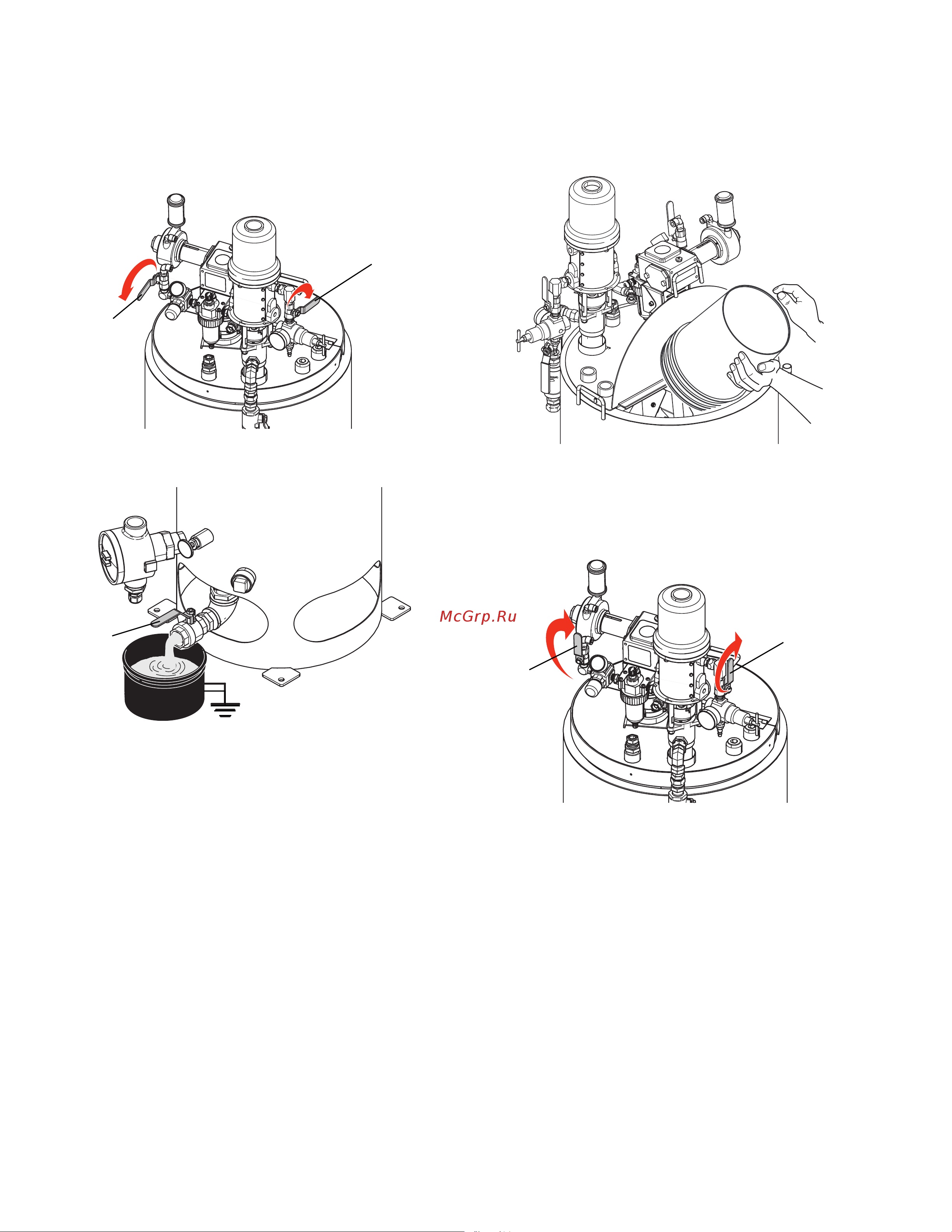

8. Run the feed pumps until they are dry. Turn off the
feed pump air valve (EM) and agitator air valve
(EP).
9. Place a small pail under the hopper and open the
material drain (EH) to fully drain the spray material.
10. Close the material drain (EH) and fill the hopper with
solvent.
11. Return the recirculation lines (U) to their respective
hoppers.
12. Open on the agitator air valve (EP) and pump air
valve (EM). Circulate for two to three minutes.
13. Repeat steps 4 - 10. Change the flushing solvent
until it runs clean. To flush the remainder of the
system, follow Flush Material Lines Procedure on
page 47.
WLD
EM
EP
WLE
EH
WLE
EP
EM
