Al-Ko Robolinho 3000 [12/88] Montage
![Al-Ko Robolinho 3000 [12/88] Montage](/views2/1098162/page12/bgc.png)
D
Robolinho© 3000

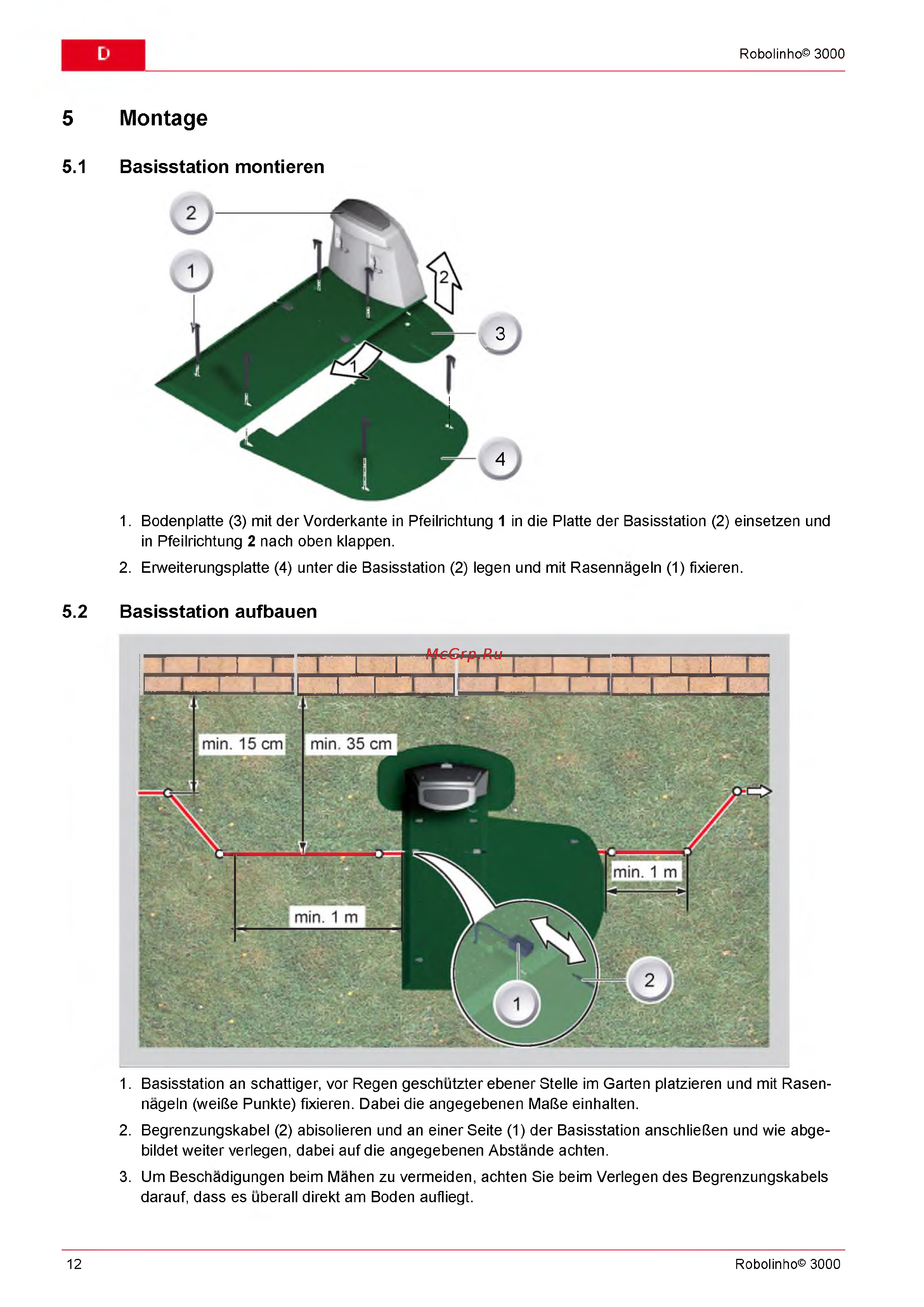

5 Montage
5.1 B asisstation m ontieren
4 3
4
1. Bodenplatte (3) mit der Vorderkante in Pfeilrichtung 1 in die Platte der Basisstation (2) einsetzen und
in Pfeilrichtung 2 nach oben klappen.
2. Erweiterungsplatte (4) unter die Basisstation (2) legen und mit Rasennageln (1) fixieren.
5.2 B asisstation aufbauen
1. Basisstation an schattiger, vor Regen geschutzter ebener Stelle im Garten platzieren und mit Rasen
nageln (weiGe Punkte) fixieren. Dabei die angegebenen MaGe einhalten.
2. Begrenzungskabel (2) abisolieren und an einer Seite (1) der Basisstation anschlieGen und wie abge-
bildet weiter verlegen, dabei auf die angegebenen Abstande achten.
3. Um Beschadigungen beim Mahen zu vermeiden, achten Sie beim Verlegen des Begrenzungskabels
darauf, dass es uberall direkt am Boden aufliegt.
12 Robolinho© 3000
