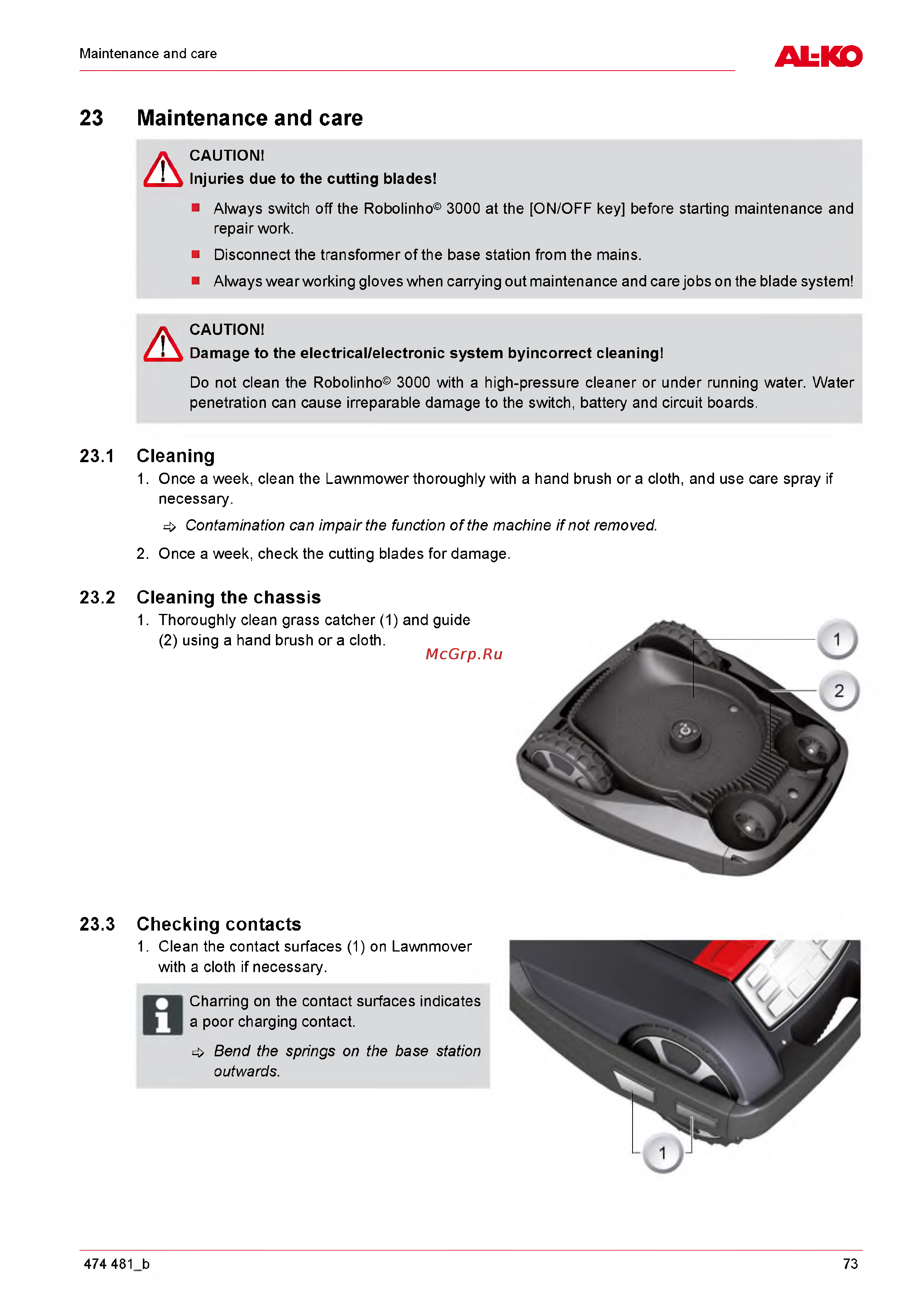

Al-Ko Robolinho 3000 [73/88] Maintenance and care
![Al-Ko Robolinho 3000 [73/88] Maintenance and care](/views2/1098162/page73/bg49.png)
Maintenance and care
ALKD
23
23.1
23.2
23.3
Maintenance and care
A
CAUTION!
- Injuries due to the cutting blades!
■ Always switch off the Robolinho© 3000 at the [ON/OFF key] before starting maintenance and
repair work.
■ Disconnect the transformer of the base station from the mains.
■ Always wear working gloves when carrying out maintenance and care jobs on the blade system!
A
CAUTION!
- Damage to the electrical/electronic system byincorrect cleaning!
Do not clean the Robolinho© 3000 with a high-pressure cleaner or under running water. Water
penetration can cause irreparable damage to the switch, battery and circuit boards.
Cleaning
1. Once a week, clean the Lawnmower thoroughly with a hand brush or a cloth, and use care spray if
necessary.
^ Contamination can impair the function of the machine if not removed.
2. Once a week, check the cutting blades for damage.
Cleaning the chassis
1. Thoroughly clean grass catcher (1) and guide
(2) using a hand brush or a cloth.
Checking contacts
1. Clean the contact surfaces (1) on Lawnmover
with a cloth if necessary.
C harring on the contact surfaces indicates
a poor charging contact.
^ Bend the springs on the base station
outwards.
474 481 b 73
