Al-Ko Robolinho 3000 [16/88] Elektrische installation

Robolinho© 3000

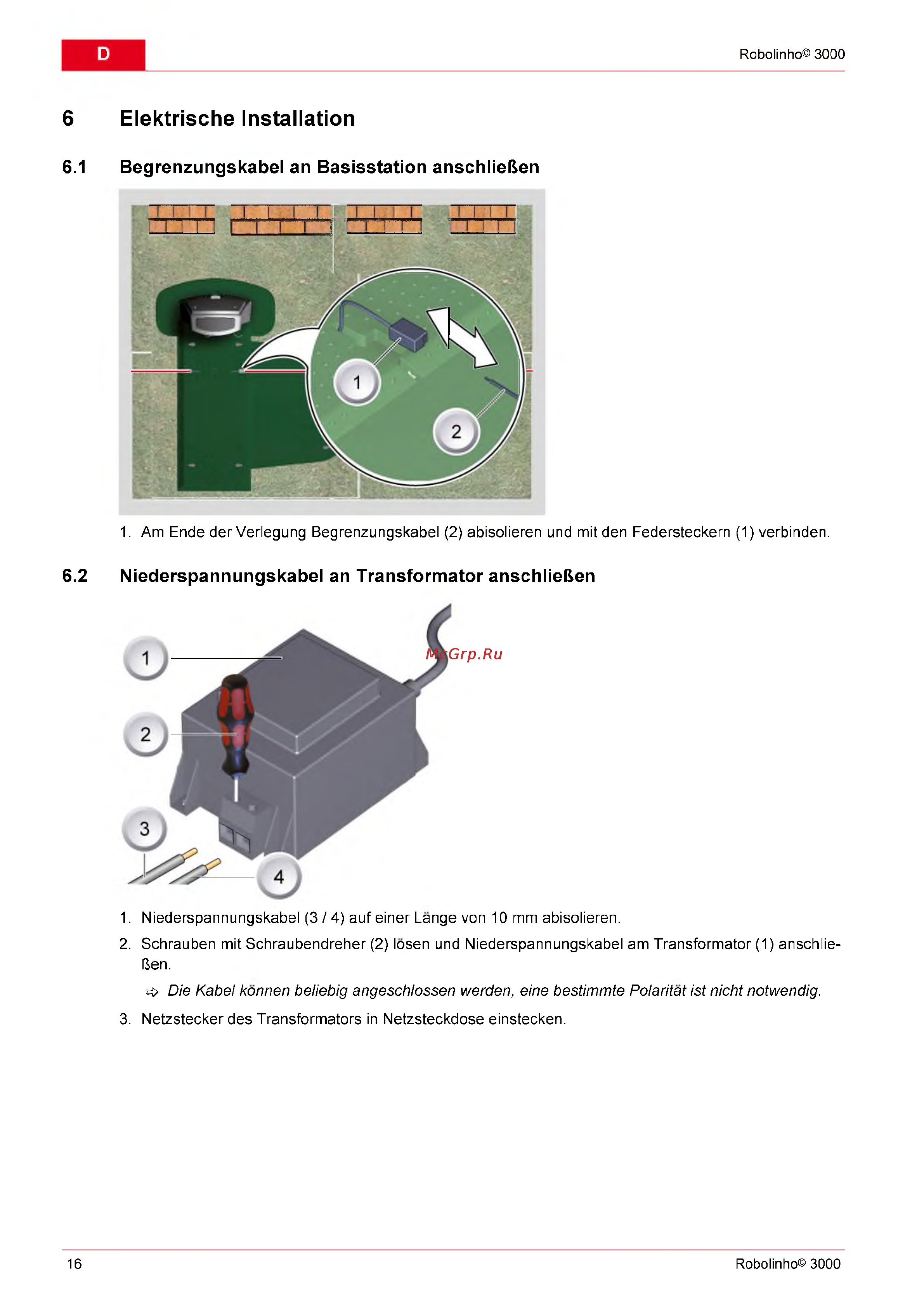

6 Elektrische Installation

6.1 Begrenzungskabel an Basisstation anschlieften

1. Am Ende der Verlegung Begrenzungskabel (2) abisolieren und mit den Federsteckern (1) verbinden.

6.2 Niederspannungskabel an T ransform ator anschlieften

1. Niederspannungskabel (3 / 4) auf einer Lange von 10 mm abisolieren.

2. Schrauben mit Schraubendreher (2) losen und Niederspannungskabel am Transformator (1) anschlie-

Gen.

^ Die Kabel konnen beliebig angeschlossen werden, eine bestimmte Polaritat ist nicht notwendig.

3. Netzstecker des Transformators in Netzsteckdose einstecken.
