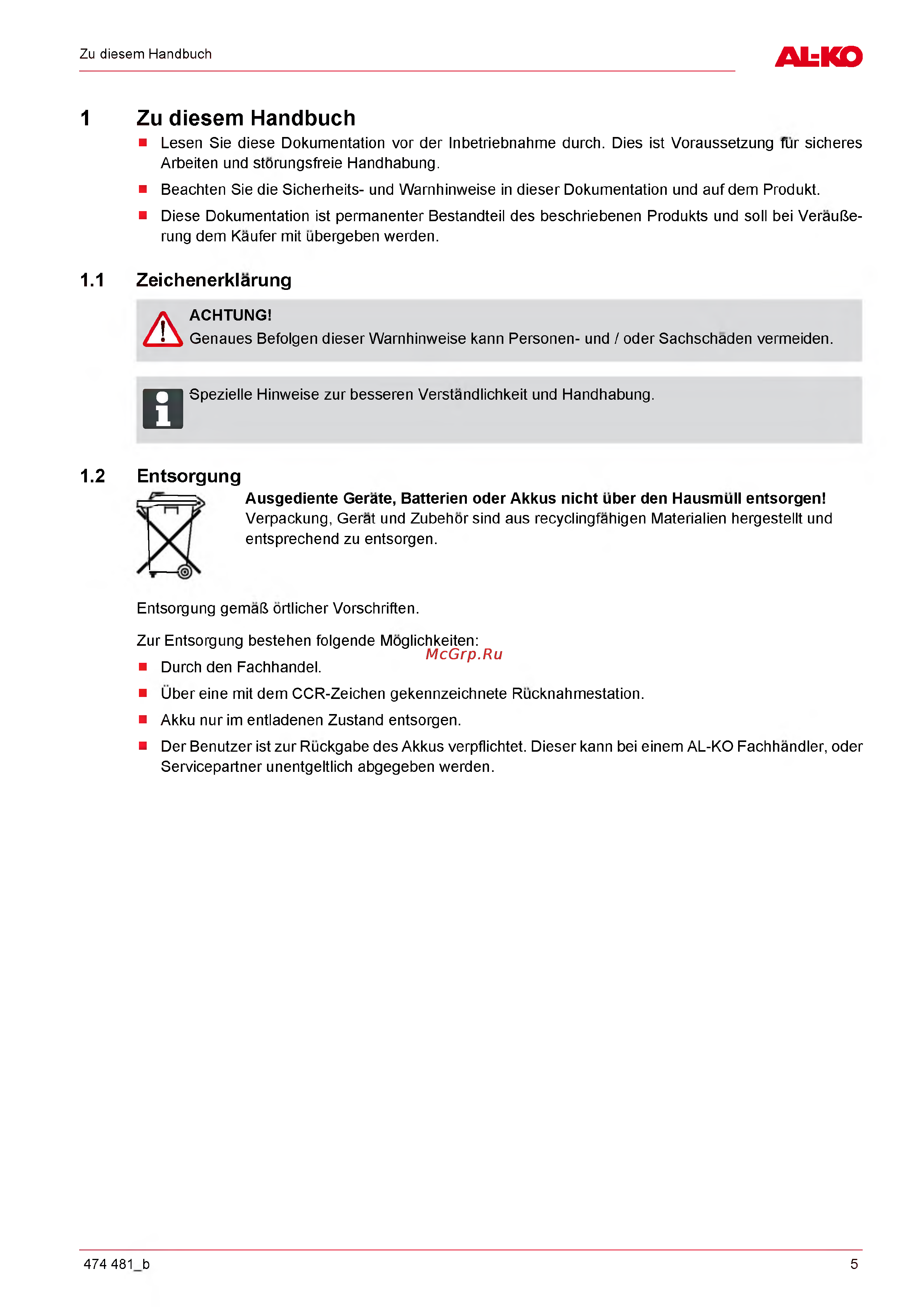

Zu diesem Handbuch
ALKO
Zu diesem Handbuch
■ Lesen Sie diese Dokumentation vor der Inbetriebnahme durch. Dies ist Voraussetzung fur sicheres
Arbeiten und storungsfreie Handhabung.
■ Beachten Sie die Sicherheits- und Warnhinweise in dieser Dokumentation und auf dem Produkt.
■ Diese Dokumentation ist permanenter Bestandteil des beschriebenen Produkts und soll bei VerauGe-
rung dem Kaufer mit ubergeben werden.
1
1.1 Zeichenerklarung
A
ACHTUNG!
- Genaues Befolgen dieser Warnhinweise kann Personen- und / oder Sachschaden vermeiden.
H
S pezielle Hinweise zur besseren Verstandlichkeit und Handhabung.
1.2 Entsorgung
Ausgediente Gerate, Batterien oder Akkus nicht uber den Hausmull entsorgen!
Verpackung, Gerat und Zubehor sind aus recyclingfahigen Materialien hergestellt und
entsprechend zu entsorgen.
Entsorgung gemaG ortlicher Vorschriften.
Zur Entsorgung bestehen folgende Moglichkeiten:
■ Durch den Fachhandel.
■ Uber eine mit dem CCR-Zeichen gekennzeichnete Rucknahmestation.
■ Akku nur im entladenen Zustand entsorgen.
■ Der Benutzer ist zur Ruckgabe des Akkus verpflichtet. Dieser kann bei einem AL-KO Fachhandler, oder
Servicepartner unentgeltlich abgegeben werden.
474 481 b 5
