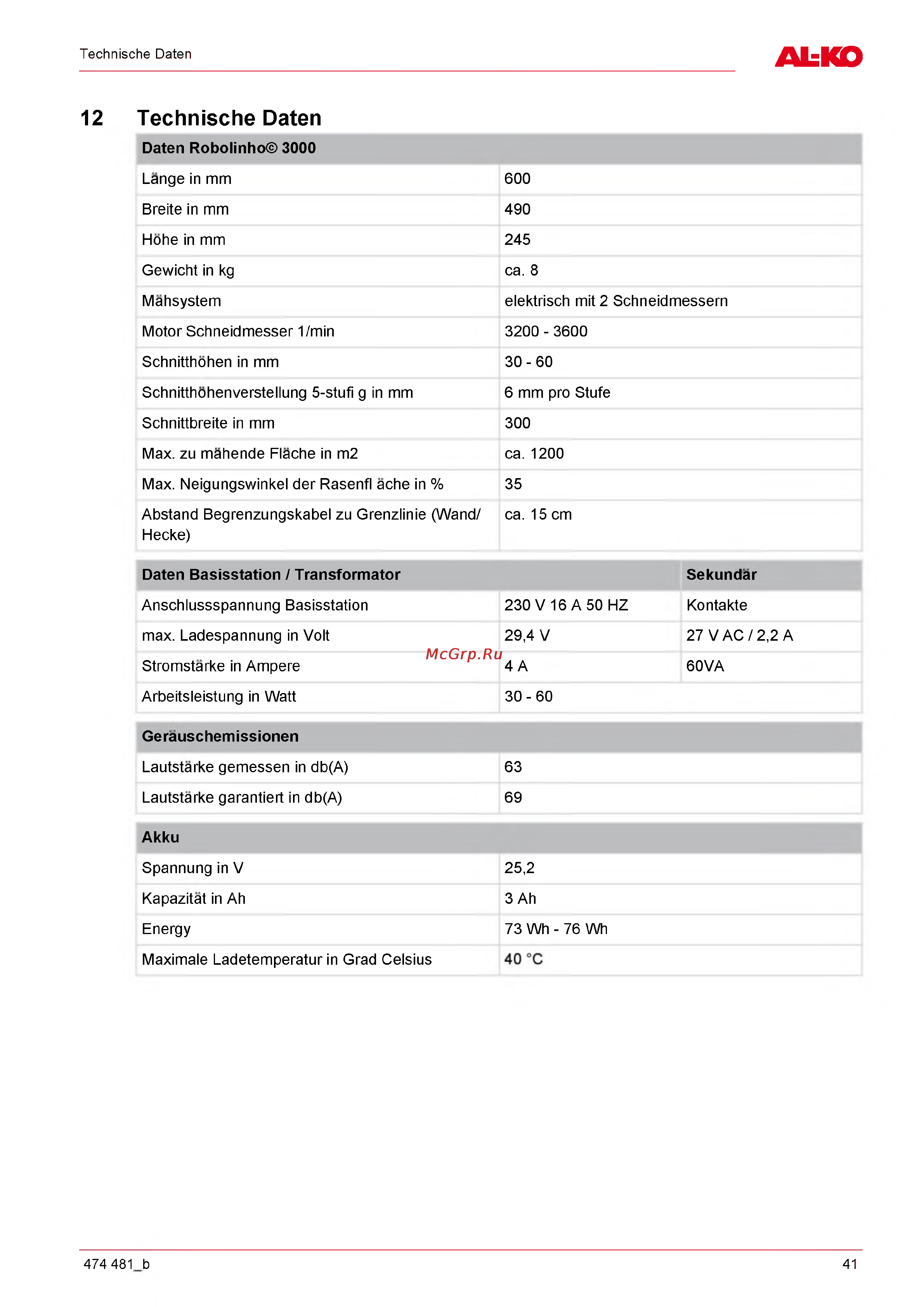

Technische Daten
ALKO
12 Technische Daten
Daten Robolinho© 3000
Lange in mm 600
Breite in mm 490
Hohe in mm 245
Gewicht in kg ca. 8
Mahsystem elektrisch mit 2 Schneidmessern
Motor Schneidmesser 1/min 3200 - 3600
Schnitthohen in mm 30 - 60
Schnitthohenverstellung 5-stufi g in mm 6 mm pro Stufe
Schnittbreite in mm 300
Max. zu mahende Flache in m2 ca.1200
Max. Neigungswinkel der Rasenfl ache in % 35
Abstand Begrenzungskabel zu Grenzlinie (Wand/
Hecke)
ca. 15 cm
Daten Basisstation / Transformator
Sekundar
Anschlussspannung Basisstation 230 V 16 A 50 HZ Kontakte
max. Ladespannung in Volt 29,4 V 27 V AC / 2,2 A
Stromstarke in Ampere 4 A 60VA
Arbeitsleistung in Watt 30 - 60
Gerauschemissionen
Lautstarke gemessen in db(A) 63
Lautstarke garantiert in db(A) 69
Akku
Spannung in V 25,2
Kapazitat in Ah 3 Ah
Energy 73 Wh - 76 Wh
Maximale Ladetemperatur in Grad Celsius
C
o
0
474 481 b 41
