en
Original operating instructions

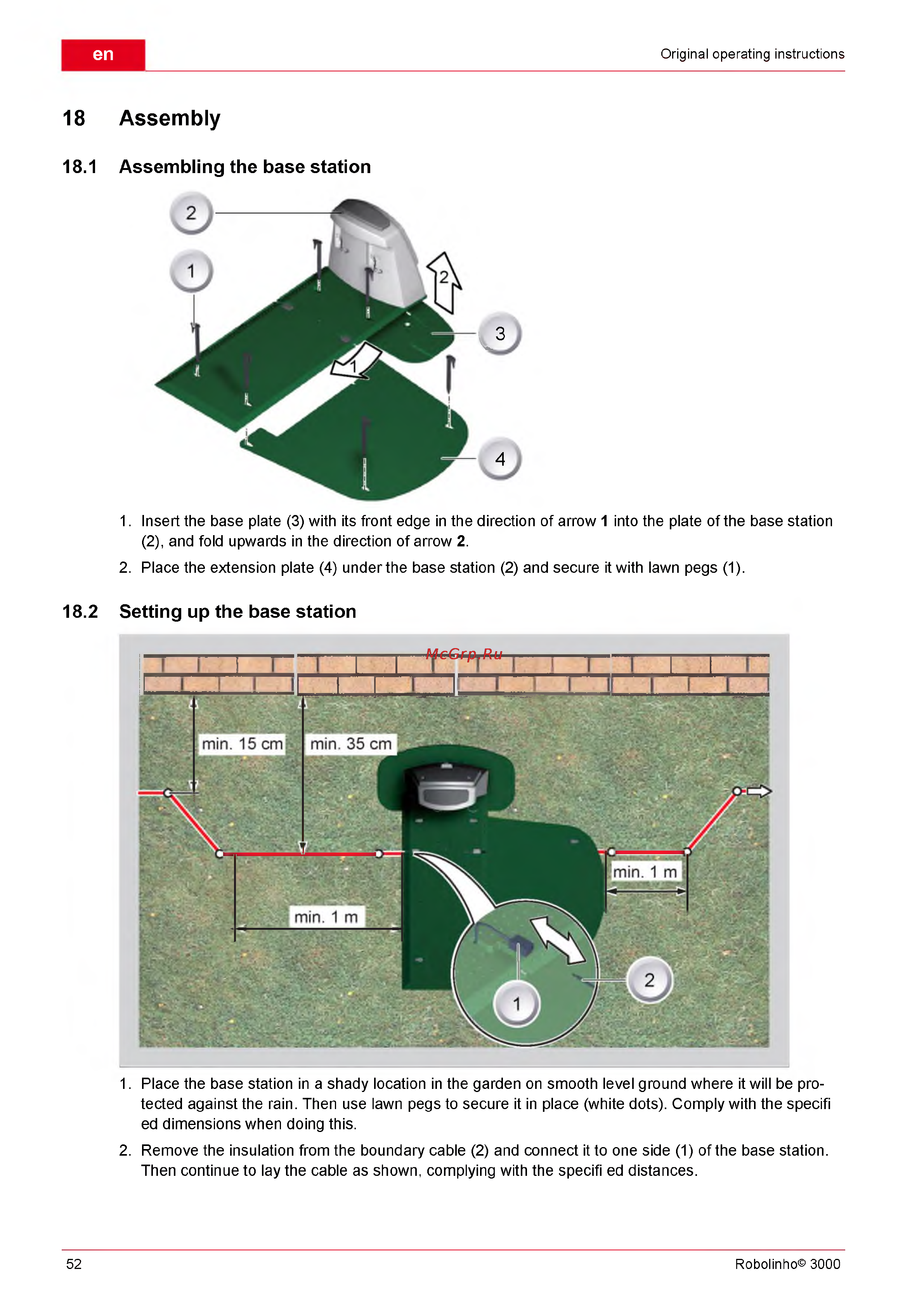

18 Assembly
18.1 A ssem bling the base station
4 3
4
1. Insert the base plate (3) with its front edge in the direction of arrow 1 into the plate of the base station
(2), and fold upwards in the direction of arrow 2.
2. Place the extension plate (4) under the base station (2) and secure it with lawn pegs (1).
18.2 Setting up the base station
1. Place the base station in a shady location in the garden on smooth level ground where it will be pro-
tected against the rain. Then use lawn pegs to secure it in place (white dots). Comply with the specifi
ed dimensions when doing this.
2. Remove the insulation from the boundary cable (2) and connect it to one side (1) of the base station.
Then continue to lay the cable as shown, complying with the specifi ed distances.
52 Robolinho© 3000
