Al-Ko Robolinho 3000 [6/88] Lieferumfang

Robolinho© 3000

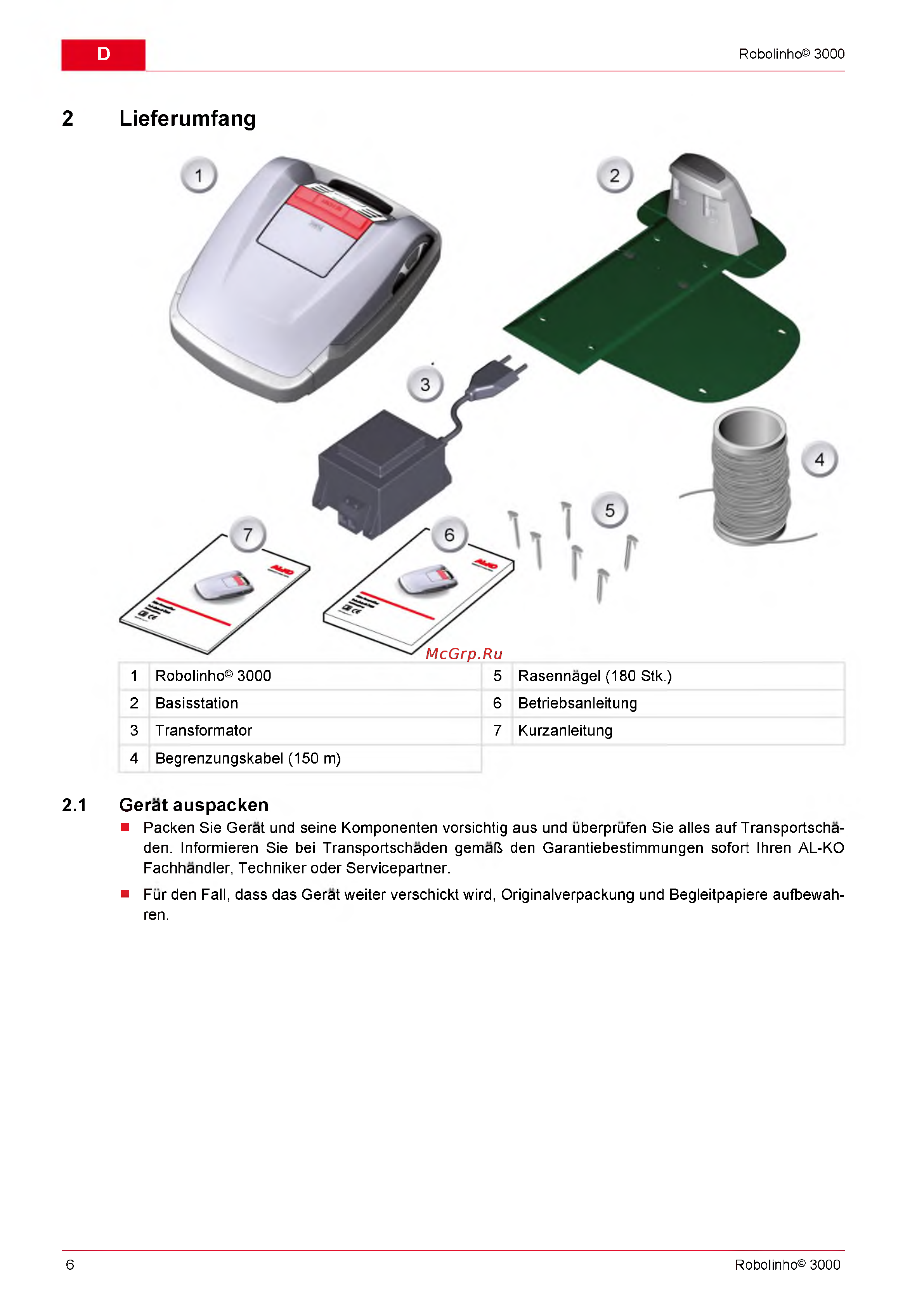

2 Lieferumfang

1 Robolinho© 3000 5 Rasennagel (180 Stk.)

2 Basisstation 6 Betriebsanleitung

3 Transformator 7 Kurzanleitung

4 Begrenzungskabel(150 m)

2.1 Gerat auspacken

■ Packen Sie Gerat und seine Komponenten vorsichtig aus und uberprufen Sie alles auf Transportscha-

den. Informieren Sie bei Transportschaden gemafc den Garantiebestimmungen sofort Ihren AL-KO

Fachhandler, Techniker oder Servicepartner.

■ Fur den Fall, dass das Gerat weiter verschickt wird, Originalverpackung und Begleitpapiere aufbewah-

ren.
