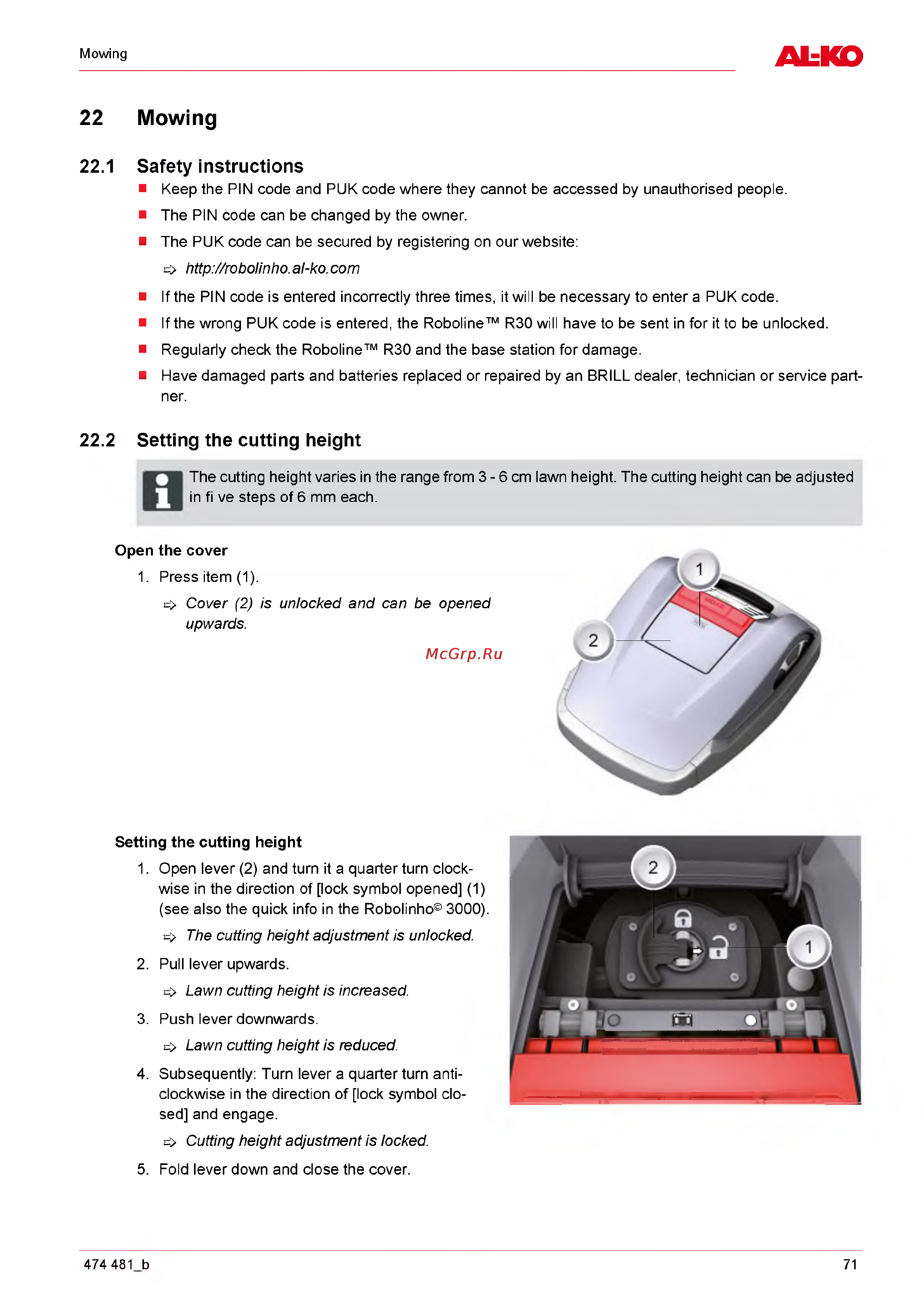

Mowing
ALKO
22 Mowing
22.1 Safety in stru ctio ns
■ Keep the PIN code and PUK code where they cannot be accessed by unauthorised people.
■ The PIN code can be changed by the owner.
■ The PUK code can be secured by registering on our website:
^ http://robolinho.al-ko.com
■ If the PIN code is entered incorrectly three times, it will be necessary to enter a PUK code.
■ If the wrong PUK code is entered, the Roboline™ R30 will have to be sent in for it to be unlocked.
■ Regularly check the Roboline™ R30 and the base station for damage.
■ Have damaged parts and batteries replaced or repaired by an BRILL dealer, technician or service part
ner.
22.2 Setting the cutting height
T he cutting height varies in the range from 3 - 6 cm lawn height. The cutting height can be adjusted
in fi ve steps of 6 mm each.
Open the cover
1. Press item (1).
^ Cover (2) is unlocked and can be opened
upwards.
Setting the cutting height
1. Open lever (2) and turn it a quarter turn clock-
wise in the direction of [lock symbol opened] (1)
(see also the quick info in the Robolinho© 3000).
^ The cutting height adjustment is unlocked.
2. Pull lever upwards.
^ Lawn cutting height is increased.
3. Push lever downwards.
^ Lawn cutting height is reduced.
4. Subsequently: Turn lever a quarter turn anti-
clockwise in the direction of [lock symbol clo-
sed] and engage.
^ Cutting height adjustment is locked.
5. Fold lever down and close the cover.
474 481 b 71
